Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain the cooling system. Refer to Cooling System Draining and Filling (L3B Static Fill) , or Cooling System Draining and Filling (L3B GE 47716)
  2. Remove the oil fill cap.
  3. GM5432171

    Intake Manifold Cover Bolt (1) - Remove [2x]

  4. Lift up on the front of the intake manifold cover (2).
  5. GM5432174

    Intake Manifold Cover (1) @ Upper Intake Manifold Bracket (2) - Remove

  6. GM5398955

    Air Cleaner Outlet Duct Clamp (1) - Loosen [2x]

  7. Evaporative Emission Canister Purge Tube (2) - Disconnect - Plastic Collar Quick Connect Fitting Service
  8. Positive Crankcase Ventilation Tube (3) - Disconnect - Plastic Collar Quick Connect Fitting Service
  9. Disconnect the electrical connector.
  10. GM5398967

    Air Cleaner Outlet Duct (1) - Remove

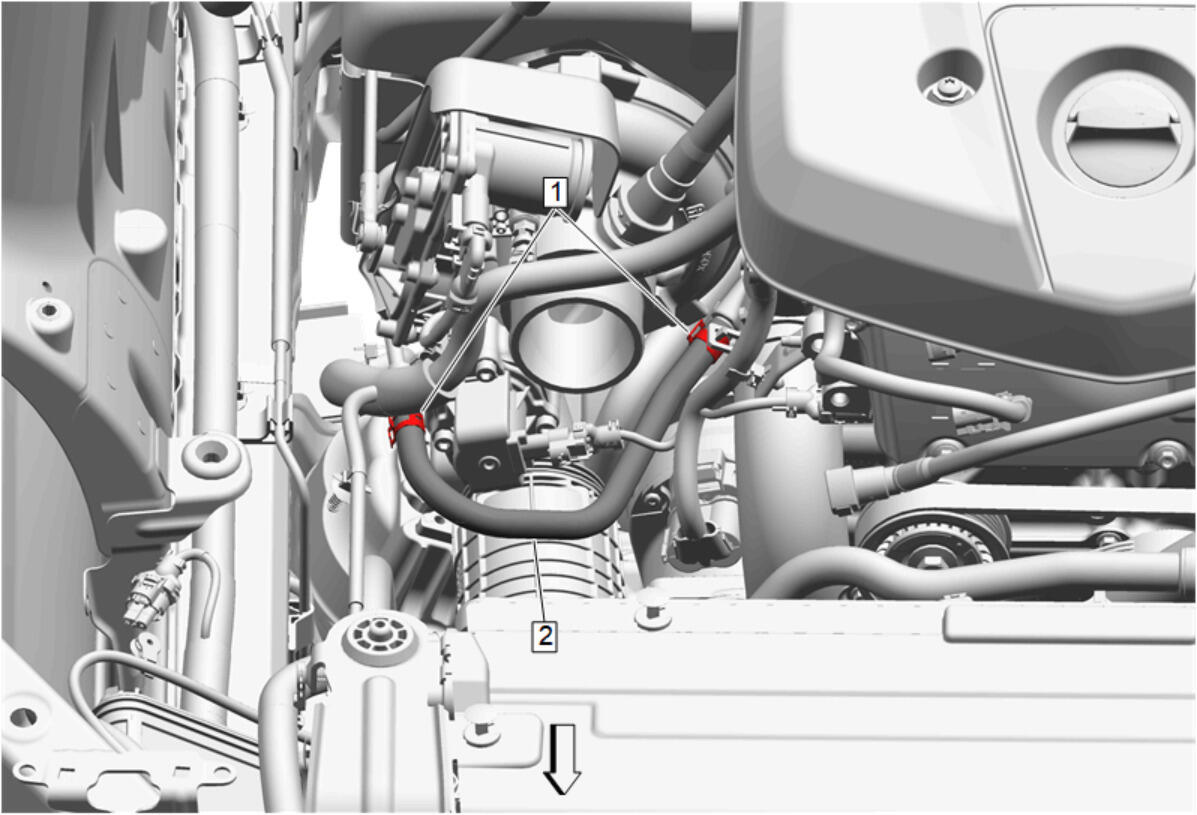

  11. GM5395443

    Hose Clamp (1) - Disengage [2x] Hose Clamp Replacement Guidelines - Spring Type

  12. Turbocharger Coolant Feed Hose (2) - Remove
