Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain the cooling system. Refer to Cooling System Draining and Filling (L3B Static Fill) , or Cooling System Draining and Filling (L3B GE 47716)
  2. Remove the oil fill cap.
  3. GM5432171

    Intake Manifold Cover Bolt (1) - Remove [2x]

  4. Lift up on the front of the intake manifold cover (2).
  5. GM5432174

    Intake Manifold Cover (1) @ Upper Intake Manifold Bracket (2) - Remove

  6. GM5398955

    Air Cleaner Outlet Duct Clamp (1) - Loosen [2x]

  7. Evaporative Emission Canister Purge Tube (2) - Disconnect - Plastic Collar Quick Connect Fitting Service
  8. Positive Crankcase Ventilation Tube (3) - Disconnect - Plastic Collar Quick Connect Fitting Service
  9. Disconnect the electrical connector.
  10. GM5398967

    Air Cleaner Outlet Duct (1) - Remove

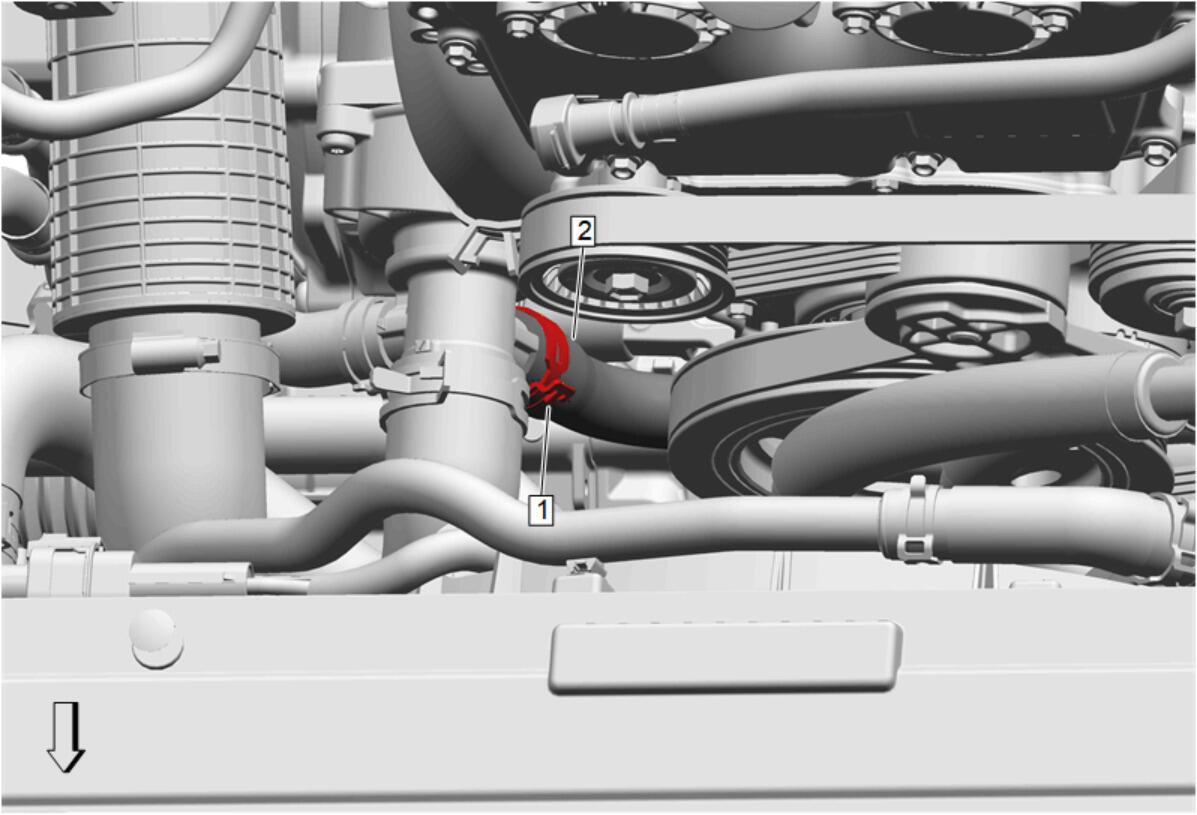

  11. GM5404207

    Hose Clamp (1) - Disengage - Hose Clamp Replacement Guidelines - Spring Type

  12. Thermostat Bypass Hose (2) @ Water Pump - Remove
  13. Raise and support the vehicle. Lifting and Jacking the Vehicle
  14. GM5396438

    Front Bumper Fascia Center Air Deflector Bolt (1) - Remove [5x]

  15. Front Bumper Fascia Center Air Deflector Retainer (2) - Remove [2x]
  16. GM5396453

    Front Wheelhouse Liner Bolt (1) - Remove

  17. Engine Front Splash Shield Retainer (2) - Remove [2x]
  18. Engine Front Splash Shield Bolt (3) - Remove
  19. GM5396496

    Front Wheelhouse Liner Bolt (3) - Remove

  20. Engine Front Splash Shield Retainer (2) - Remove [2x]
  21. Engine Front Splash Shield Bolt (1) - Remove
  22. GM5420502

    Front Compartment Air Deflector Bolt (1) - Remove [4x]

  23. Front Compartment Air Deflector (2) - Remove

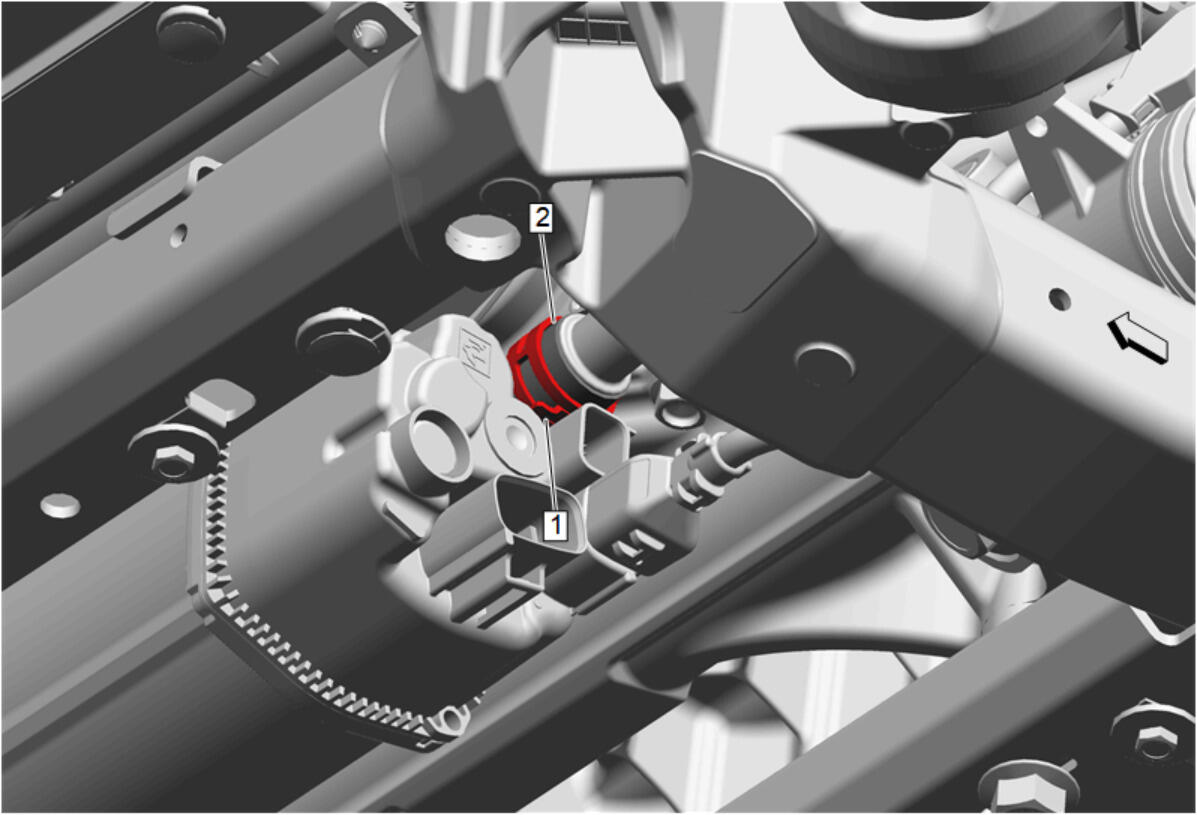

  24. GM5404213

    Hose Clamp (1) - Disengage - Hose Clamp Replacement Guidelines - Spring Type

  25. Thermostat Bypass Hose (2) @ Thermostat Bypass Pipe - Remove

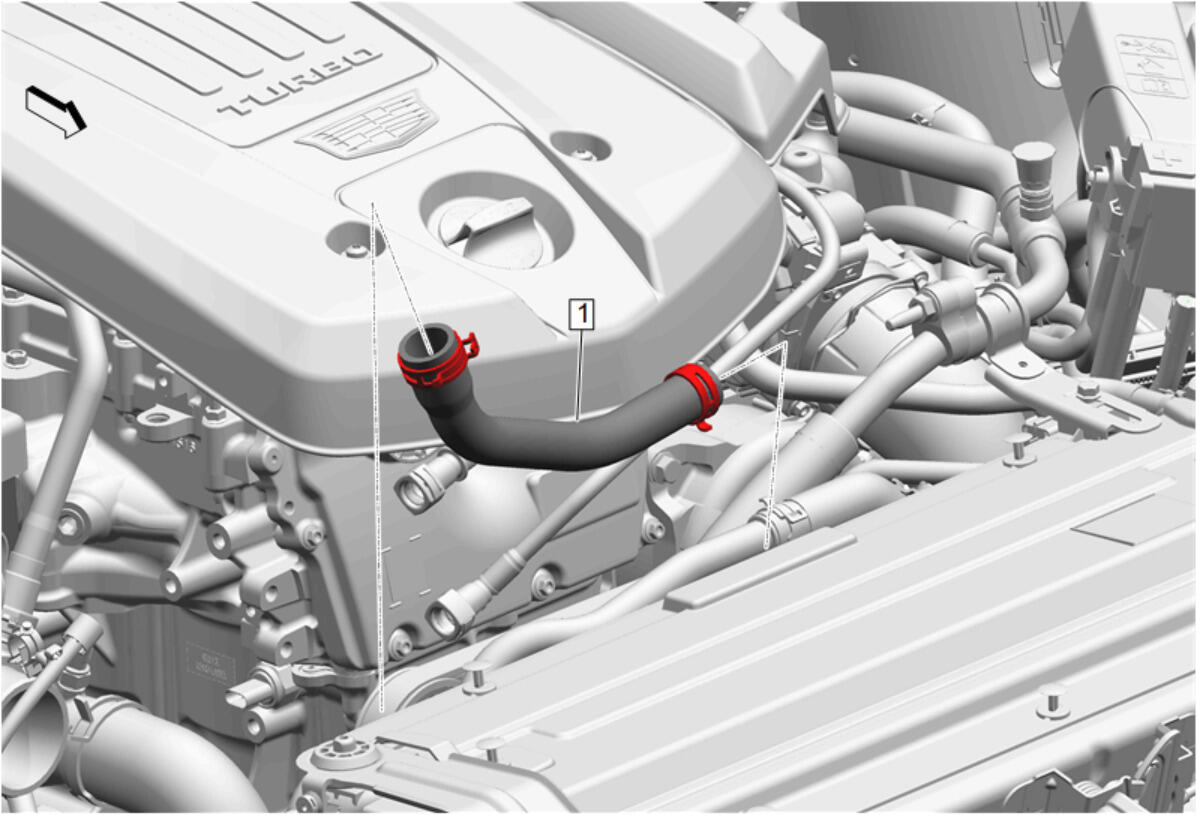

  26. GM5404215

    Thermostat Bypass Hose (1) - Remove
