Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain the cooling system. Cooling System Draining and Filling (LSY GE 47716) , or Cooling System Draining and Filling (LSY Static Fill) , or Cooling System Draining and Filling (LSY with V03 Static Fill) , or Cooling System Draining and Filling (L3B Static Fill) , or Cooling System Draining and Filling (L3B GE 47716) , or Cooling System Draining and Filling (LSY with V03 GE 47716) , or Cooling System Draining and Filling (LF4 Static Fill) , or Cooling System Draining and Filling (LF4 GE 47716)

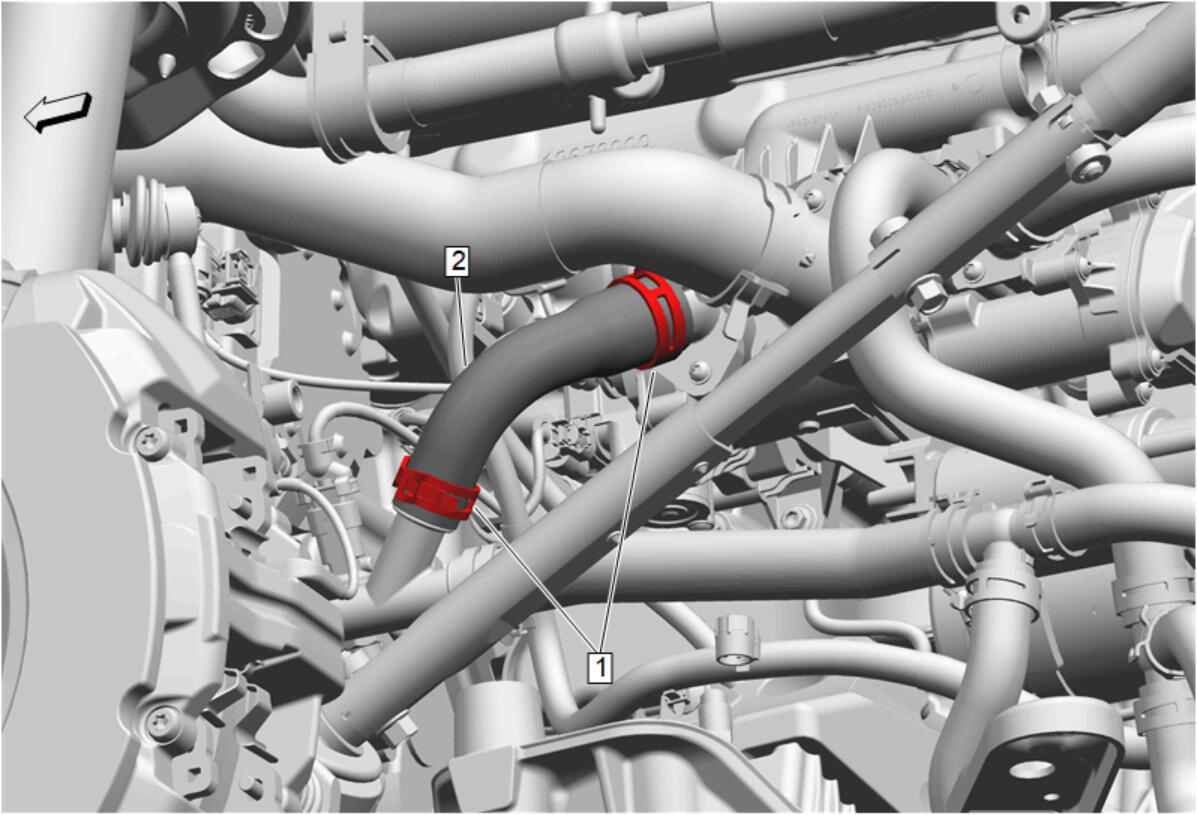

  2. GM5412619

    Hose Clamp (1) - Disengage [2x] - Hose Clamp Replacement Guidelines - Spring Type

  3. Thermostat Bypass Hose (2) - Remove
