Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain the cooling system. Refer to Cooling System Draining and Filling (L3B Static Fill) , or Cooling System Draining and Filling (L3B GE 47716)
  2. GM5479536

    Air Cleaner Bolt (1) - Remove

  3. Evaporative Emission Canister Purge Tube (2) - Disconnect - Plastic Collar Quick Connect Fitting Service
  4. Positive Crankcase Ventilation Tube (3) - Disconnect - Plastic Collar Quick Connect Fitting Service
  5. Electrical Connector (4) - Disconnect [2x]
  6. GM5479537

    Air Cleaner Outlet Duct Clamp (1) - Loosen

  7. Wiring Harness Retainer (2) @ Air Cleaner Assembly - Remove [4x]
  8. Engine Wiring Harness (3) - Reposition
  9. GM5479539

    Remove the air cleaner (1) and air cleaner outlet duct (2) as an assembly.

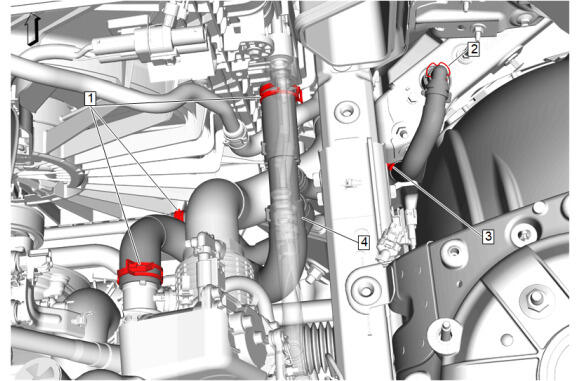

  10. GM5479540

    Radiator Outlet Hose Clamp (1) - Disengage [3x] - Hose Clamp Replacement Guidelines - Spring Type

  11. Radiator Outlet Hose Clip (3) - Remove
  12. Using an appropriate tool, disengage the radiator outlet hose retainer (2).
  13. Radiator Outlet Hose (4) - Remove
