Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front bumper fascia. Front Bumper Upper Fascia Removal and Installation (with Shutter and Sport Sedan or V Series) , or Front Bumper Upper Fascia Removal and Installation (with Frame and Sport Sedan or V Series)
  2. Drain the cooling system. Cooling System Draining and Filling (LSY GE 47716) , or Cooling System Draining and Filling (LSY Static Fill) , or Cooling System Draining and Filling (LSY with V03 Static Fill) , or Cooling System Draining and Filling (LSY with V03 GE 47716)
  3. GM5471090

    Air Cleaner Outlet Duct Clamp (1) - Loosen

  4. Disconnect the electrical connector and remove all wiring harnesses from the air cleaner assembly.
  5. GM5471091

    Air Cleaner Bolt (1) - Remove

  6. Air Cleaner Assembly (2) - Remove

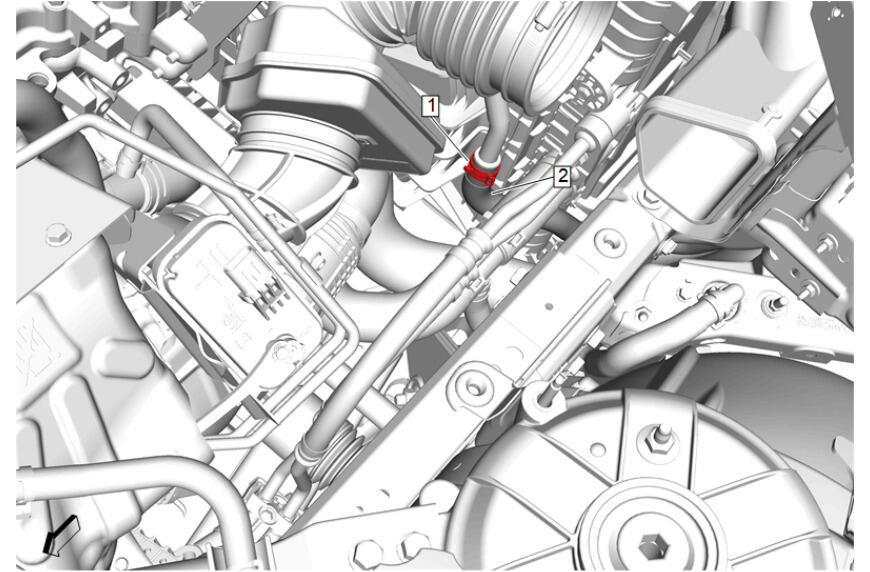

  7. GM5471092

    Radiator Inlet Hose Clamp (1) - Disengage - Hose Clamp Replacement Guidelines - Spring Type

  8. Radiator Inlet Hose (2) @ Radiator Inlet Pipe - Remove
  9. GM5471096

    Using an appropriate tool, disengage the radiator inlet hose retainer (1).

  10. Radiator Inlet Hose (2) - Remove
