Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain the cooling system. refer to Cooling System Draining and Filling (L3B Static Fill) , or Cooling System Draining and Filling (L3B GE 47716)

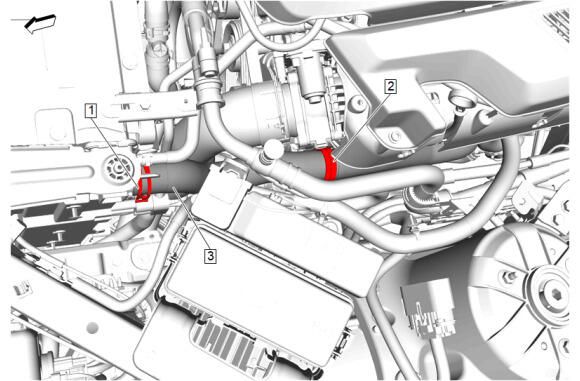

  2. GM5479958

    Radiator Inlet Hose Clamp (1) - Disengage - Hose Clamp Replacement Guidelines - Spring Type

  3. Radiator Inlet Hose Clip (2) @ Radiator Inlet Hose Bracket - Remove
  4. Radiator Inlet Hose (3) @ Radiator - Remove

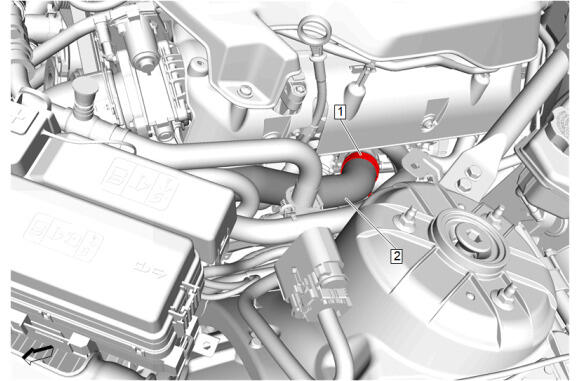

  5. GM5479959

    Radiator Inlet Hose Clamp (1) - Disengage - Hose Clamp Replacement Guidelines - Spring Type

  6. Radiator Inlet Hose (2) @ Engine Coolant Flow Control Valve - Remove
