Vac-N-Fill Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE:

    Use a 50/50 mixture of DEX-COOL antifreeze and clean, drinkable water.

  1. Prepare a quantity of coolant slightly greater than the charge air cooling system capacity.
  2. Attach the Vac-N-Fill gauge assembly to GE-47716-30A  Vac-N-Fill Adapter.
  3. GM2846166

    Attach the fill hose (1) to the barb fitting on the vacuum gauge assembly (2).

    Ensure that the valve is closed.

  4. GM2846170
    NOTE:

    Use a 50/50 mixture of DEX-COOL antifreeze and clean, drinkable water.

    Always use more coolant than necessary. This will eliminate air from being drawn into the cooling system.

    Pour the coolant mixture into the graduated reservoir (1).

  5. Place the fill hose in the graduated reservoir (1).
  6. NOTE:

    Prior to installing the vacuum tank onto the graduated reservoir, ensure that the drain valve located on the bottom of the tank is closed.

  7. Install the vacuum tank (2) on the graduated reservoir with the fill hose routed through the cut-out area (3) in the vacuum tank.
  8. GM2846171

    Attach the venturi assembly (1) to the vacuum tank (2).

  9. GM2846172

    Attach a shop air hose to the venturi assembly (1).

    Ensure the valve (2) on the venturi assembly is closed.

  10. GM2846173

    Attach the vacuum hose (1) to the vacuum gauge assembly (2) and the vacuum tank (3).

  11. GM2846175

    Open the valve (1) on the venturi assembly (2). The vacuum gauge will begin to rise and a hissing noise will be present.

  12. GM2846177

    Continue to draw vacuum until the needle stops rising (1). This should be 610 - 660 mm Hg (24 - 26 in Hg).

    Cooling hoses may start to collapse. This is normal due to vacuum draw.

  13. To aid in the fill process, position the graduated reservoir above the coolant fill port.
  14. GM2846183

    Slowly open the valve (1) on the vacuum gauge assembly (2). When the coolant reaches the top of the fill hose, close the valve. This will eliminate air from the fill hose.

  15. Close the valve on the venturi assembly.
  16. If there is a suspected leak in the cooling system, allow the system to stabilize under vacuum and monitor for vacuum loss.
  17. Open the valve on the vacuum gauge assembly. The vacuum gauge will drop as coolant is drawn into the system.
  18. GM3242386

    Once the vacuum gauge reaches zero (1), close the valve on the vacuum gauge assembly and repeat steps 13 - 16.

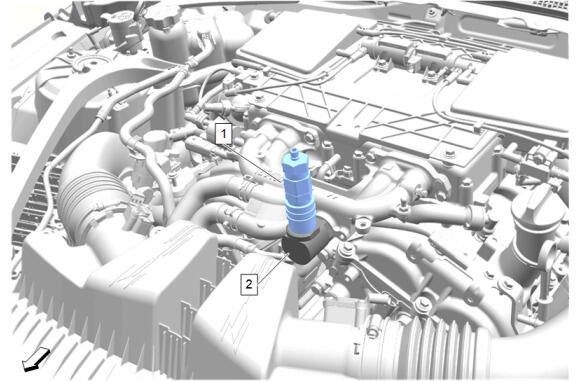

  19. GM5908746

    Detach the Vac-N-Fill gauge assembly from the GE-47716-30A  Vac-N-Fill Adapter (1).

  20. Remove the GE-47716-30A  Vac-N-Fill Adapter (1) from the intake manifold vacuum fitting (2).
  21. Remove the absorbent shop cloth from around the intake manifold vacuum fitting and wipe up any coolant spillage.

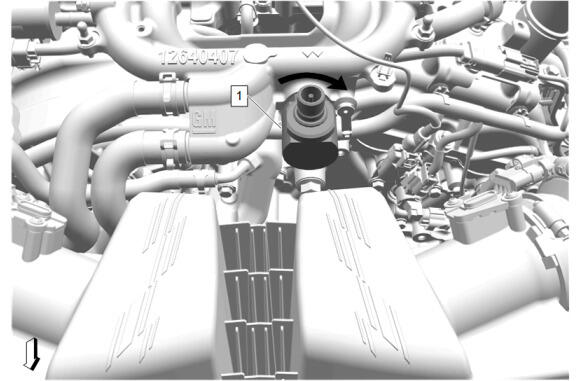

  22. GM5908747

    Rotate the intake manifold vacuum fitting (1) 90 degrees clockwise.

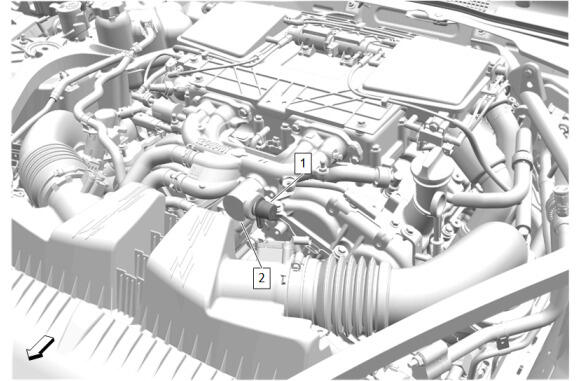

  23. GM5908745

    Intake Manifold Vacuum Fitting Cap (1) - Install

  24. Rinse away any excess coolant from the engine and the engine compartment.
  25. GM5839283

    Oil Filler Cap - Remove

  26. Intake Manifold Cover (2) - Install
  27. Intake Manifold Cover Bolt (1) - Install and tighten - Fastener Specifications
  28. Oil Filler Cap - Install
  29. Start the engine and check for coolant leaks.
  30. {With UGN} Perform the forward range radar sensor module learn. Radar Sensor Module - Long Range Learn
