Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

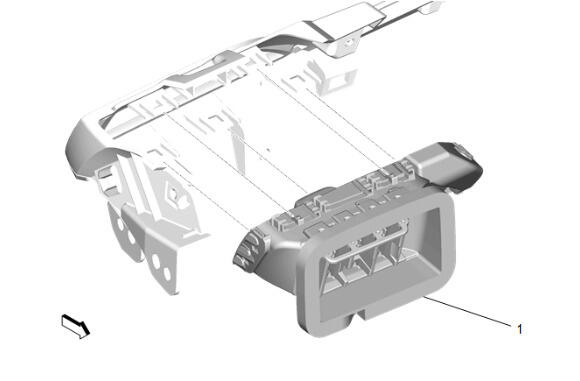

  1. GM5485102Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Outer Air Outlet - Right Side (1) - Install

  2. GM5475555Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Trim Plate Applique - Right Side (2) - Install

    3. CAUTION:

    Refer to Fastener Caution .

  3. Instrument Panel Accessory Trim Plate Bolt @ Instrument Panel Carrier (1) - Install and tighten [6x] - Fastener Specifications
  4. GM5475524Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Upper Trim Panel - Right Side (1) - Install

  5. GM5475523Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Upper Trim Panel Bolt (1) - Install and tighten [6x] - Fastener Specifications

  6. GM5475522Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  7. Instrument Panel Airbag Bolt (1) - Install and tighten [3x] - Fastener Specifications
  8. Instrument Panel Upper Trim Panel Bolt (2) - Install and tighten [3x] - Fastener Specifications
  9. GM5433956Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Trim Pad (1) - Install

  10. GM5423237Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  11. Instrument Panel Compartment (1) - Install
  12. GM5423236Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Compartment Bolt (1) - Install and tighten [5x] - Fastener Specifications

  13. GM5443248Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  14. Instrument Panel Lower Airbag - Passenger Side (2) - Install
  15. Instrument Panel Lower Airbag Nut (1) - Install and tighten [2x] - Fastener Specifications
  16. GM5312734Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  17. Instrument Panel Lower Trim Panel Insulator (1) - Install
  18. Install the front edge of the front floor console extension panel into the instrument panel lower trim panel insulator (1).
  19. GM5312733Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Insulator Bolt (2) - Install and tighten [4x] - Fastener Specifications

  20. GM5312731Courtesy of GENERAL MOTORS COMPANY

    Unlock and lower the body control module bracket (2).

  21. Connect the electrical connectors.
  22. Close and lock the body control module bracket (2) into the instrument panel lower trim panel insulator.
  23. Body Control Module Bracket Bolt (1) - Install and tighten - Fastener Specifications
  24. GM5421737Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Outer Trim Cover - Right Side (1) - Install

  25. GM5637177Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Cluster Trim Plate (2) - Install

  26. Instrument Panel Cluster Trim Plate Bolt (1) - Install and tighten [2x] - Fastener Specifications
  27. GM5730572Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Instrument panel steering column upper trim cover is removed for graphic clarity.

    { If equipped } Connect the electrical connector. (1)

  28. GM5422815Courtesy of GENERAL MOTORS COMPANY

    Secure the instrument panel steering column upper trim cover (1) to the instrument panel steering column lower trim cover.

  29. GM5422006Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Instrument Cluster Hood (1) - Install

  30. GM5421700Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  31. Instrument Panel Extension (1) - Install
  32. GM5423347Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  33. Windshield Garnish Molding Bolt (2) - Install and tighten [2x] - Fastener Specifications
  34. Align the retainer clips with the slots in the A pillar and press the windshield garnish moldings (1) into place.
  35. Windshield Garnish Molding (1) - Install [2x]
  36. GM5446428Courtesy of GENERAL MOTORS COMPANY

    Connect and position the wiring harness.

  37. Instrument Panel Knee Bolster (1) - Install
  38. GM5446424Courtesy of GENERAL MOTORS COMPANY

    Data Link Connector Bolt (1) - Install and tighten [2x] - Fastener Specifications

  39. Instrument Panel Knee Bolster Bolt (2) - Install and tighten [3x] - Fastener Specifications
  40. GM5433957Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  41. Instrument Panel Center Trim Pad (1) - Install
  42. Return the steering column to its original position.
  43. GM5310879Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  44. Instrument Panel Lower Trim Panel Insulator (1) - Install
  45. GM5310878Courtesy of GENERAL MOTORS COMPANY

    Install the tabs into the instrument panel lower trim panel insulator (1).

  46. GM5310877Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Trim Panel Insulator Retainer (1) - Install

  47. Instrument Panel Insulator Bolt (2) - Install and tighten [2x] - Fastener Specifications
  48. Instrument Panel Insulator Nut (3) - Install and tighten [2x] - Fastener Specifications
  49. GM5300282Courtesy of GENERAL MOTORS COMPANY

    Attach the hood primary latch release cable end retainer to the hood primary latch release cable handle (1).

  50. GM5421735Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Outer Trim Cover - Left Side (1) - Install

  51. GM5443235Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  52. Instrument Panel Lower Airbag - Driver Side (2) - Install
  53. Instrument Panel Lower Airbag Nut (1) - Install and tighten [2x] - Fastener Specifications
  54. GM5422046Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  55. Radio Control (2) - Install
  56. Radio Control Bolt (1) - Install and tighten [2x] - Fastener Specifications
  57. GM5422026Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Radio Front Trim Plate (1) - Install

  58. GM5422024Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Radio Front Trim Plate (1) - Install

  59. GM5421988Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  60. Radio Front Center Speaker (2) - Install
  61. Radio Front Center Speaker Bolt (1) - Install and tighten [2x] - Fastener Specifications
  62. GM5421968Courtesy of GENERAL MOTORS COMPANY

    Radio Front Center Speaker Grille (1) - Install

  63. Enable the SIR System. SIR Disabling and Enabling
  64. Clear DTCs
