Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
  1. GM5488426Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console (1) - Remove - Front Floor Console Removal and Installation (with M5N) , or Front Floor Console Removal and Installation (with MQA) , or Front Floor Console Removal and Installation (Blackwing)

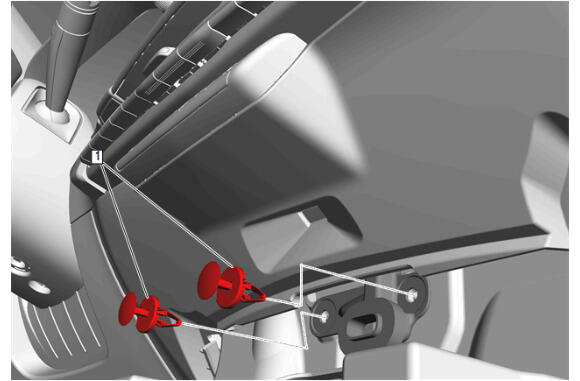

  2. GM5495364Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Center Air Outlet Duct Retainer (1) - Remove [2x]

  3. GM5495377Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Compartment Air Duct- Outer (1) - Remove
