Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

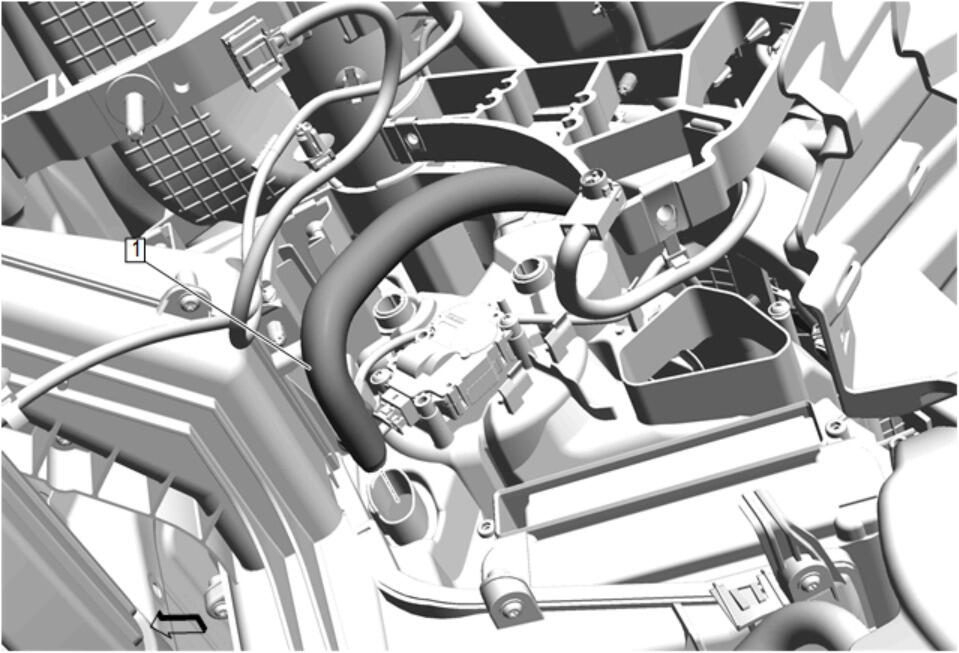

  1. GM5330289Courtesy of GENERAL MOTORS COMPANY

    Maneuver the instrument panel compartment air duct - inner (1) back behind the Instrument panel.

  2. Instrument Panel Compartment Air Duct- Inner (1) - Install

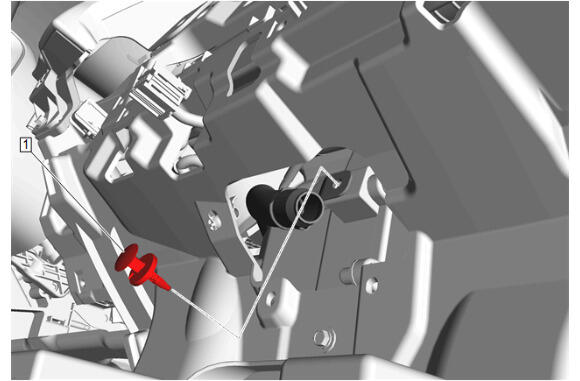

  3. GM5500609Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Center Air Outlet Duct Retainer (1) - Install

  4. GM5500553Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Compartment Air Duct- Outer (2) - Install

  5. Instrument Panel Center Air Outlet Duct Retainer (1) - Install [2x]

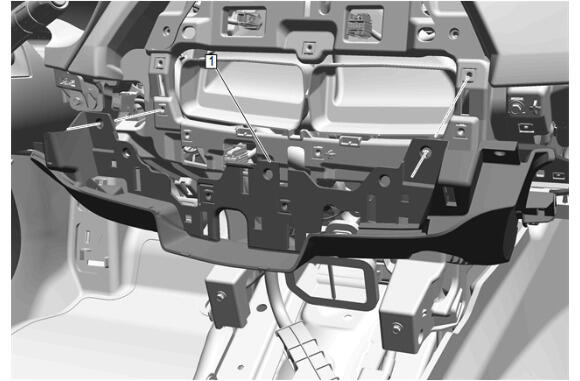

  6. GM5500565Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  7. Instrument Panel Lower Center Trim Panel (1) - Install

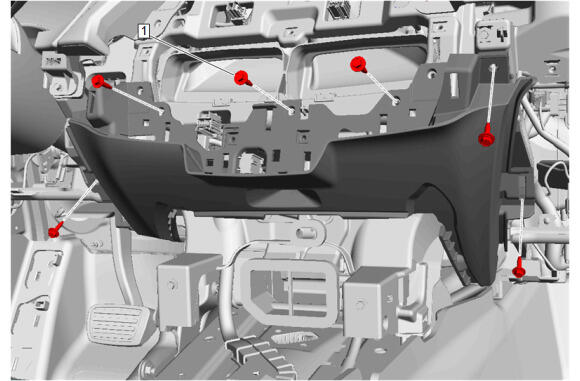

  8. GM5500559Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Instrument Panel Center Trim Panel Bolt (1) - Install and tighten [6x] - Fastener Specifications

  9. GM5433956Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Trim Pad (1) - Install

  10. GM5423237Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  11. Instrument Panel Compartment (1) - Install
  12. GM5423236Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Compartment Bolt (1) - Install and tighten [5x] - Fastener Specifications

  13. GM5443248Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  14. Instrument Panel Lower Airbag - Passenger Side (2) - Install
  15. Instrument Panel Lower Airbag Nut (1) - Install and tighten [2x] - Fastener Specifications
  16. GM5312734Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  17. Instrument Panel Lower Trim Panel Insulator (1) - Install
  18. Install the front edge of the front floor console extension panel into the instrument panel lower trim panel insulator (1).
  19. GM5312733Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Insulator Bolt (1) - Install and tighten [4x] - Fastener Specifications

  20. Connect and position the wiring harness.
  21. GM5312731Courtesy of GENERAL MOTORS COMPANY

    Unlock and lower the body control module bracket (2) from the instrument panel lower trim panel insulator.

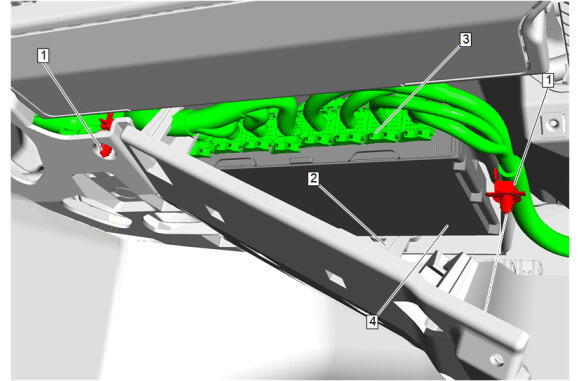

  22. GM5482805Courtesy of GENERAL MOTORS COMPANY

    Body Control Module (4) - Install

  23. Connect the body control module connectors (3).
  24. Attach the wiring harness clips (1) onto the body control module bracket.
  25. Install the detent (2) onto the instrument panel lower trim panel insulator.
  26. GM5312731Courtesy of GENERAL MOTORS COMPANY

    Close and lock the body control module bracket (2) into the instrument panel lower trim panel insulator.

  27. Body Control Module Bracket Bolt (1) - Install and tighten - Fastener Specifications
  28. GM5421737Courtesy of GENERAL MOTORS COMPANY

    { If equipped } Connect the electrical connector.

  29. Instrument Panel Outer Trim Cover - Right Side (1) - Install

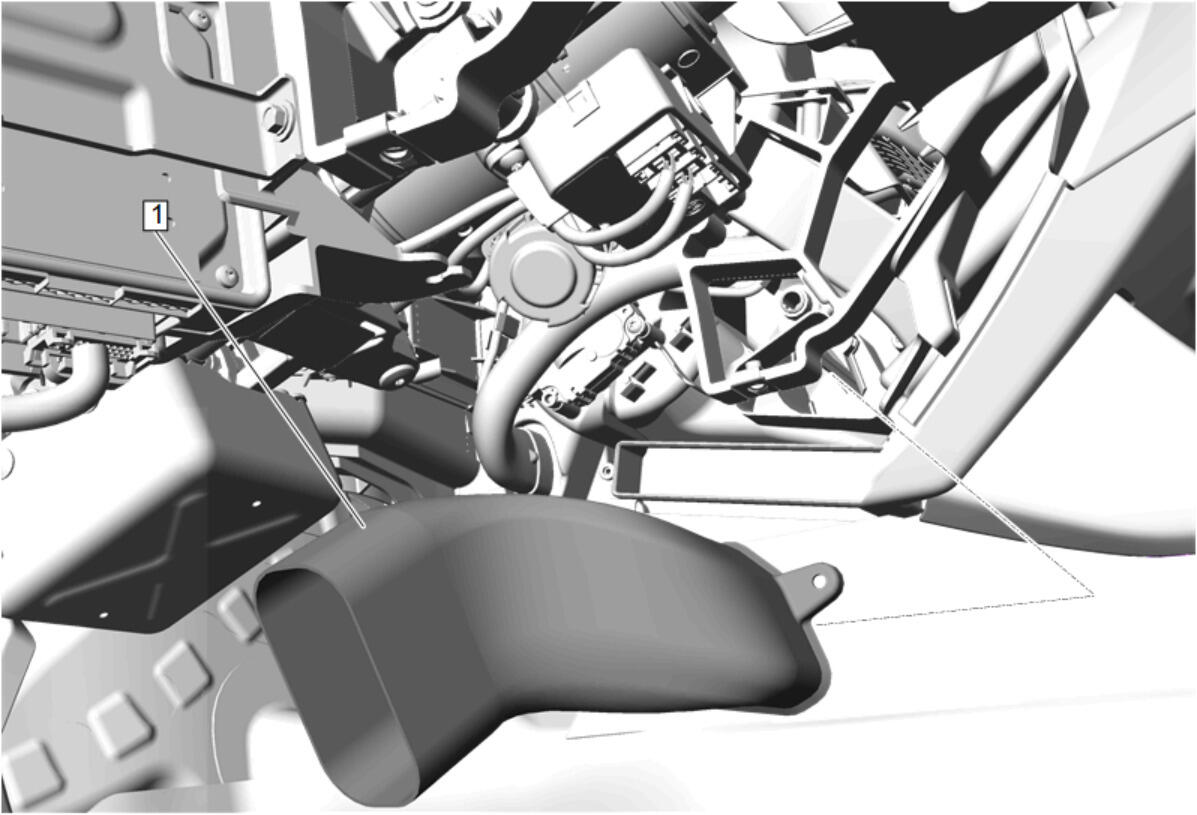

  30. GM5326616Courtesy of GENERAL MOTORS COMPANY

    Floor Front Air Outlet Duct - Left Side- Inner (1) - Install

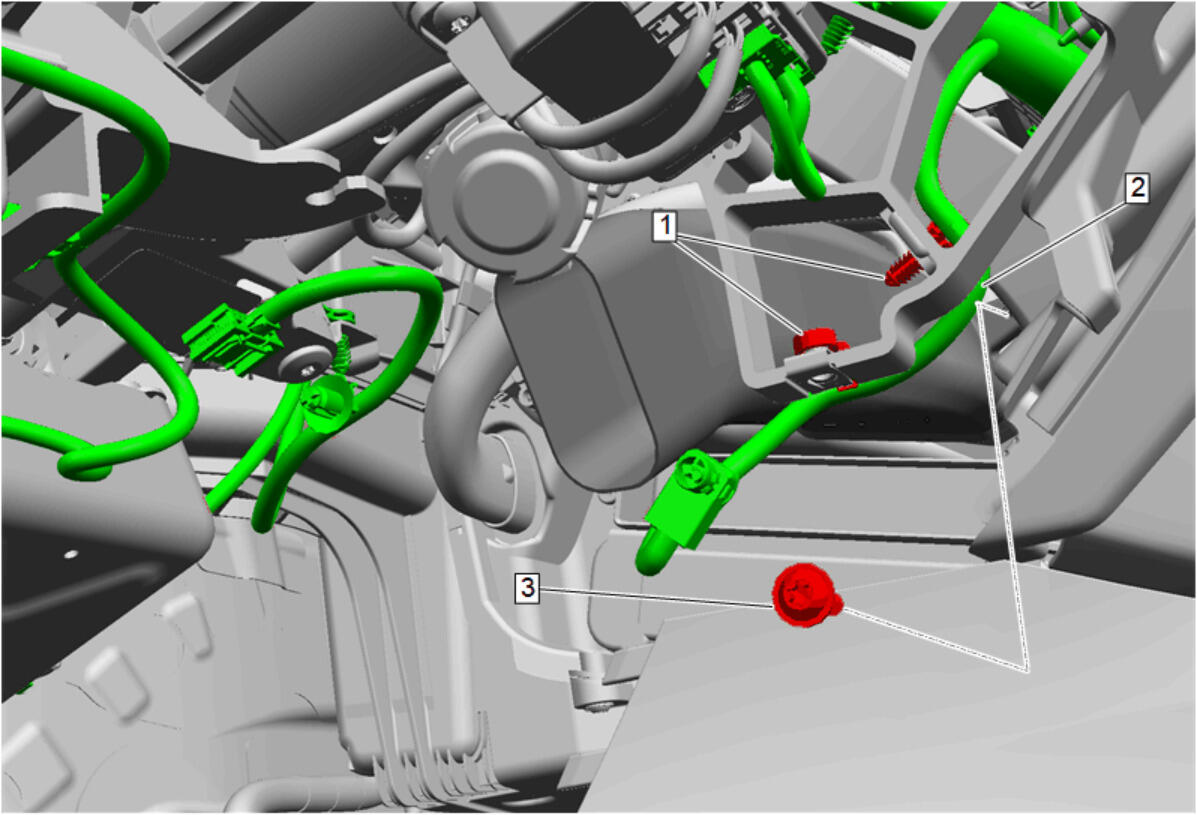

  31. GM5326608Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Typical wiring harness shown. Individual wiring harnesses may differ based on option content.

    Heater and Air Conditioning Evaporator and Blower Upper and Blow Lower Case Bolt (3) - Install and tighten - Fastener Specifications

  32. Position the harness back to the harness original routing. (2)
  33. Wiring Harness Clip (1) - Install [2x]
  34. GM5454049Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Knee Bolster Deflector (2) - Install

  35. Instrument Panel Tie Bar Brace Bolt (1) - Install and tighten [3x] - Fastener Specifications
  36. GM5325852Courtesy of GENERAL MOTORS COMPANY

    Floor Front Air Outlet Duct - Left Side- Outer (2) - Install

  37. Floor Front Air Outlet Duct Bolt (1) - Install and tighten - Fastener Specifications
  38. Connect the electrical connectors to the instrument panel knee bolster switches, and position the harness back to its original position.
  39. GM5446428Courtesy of GENERAL MOTORS COMPANY

    Connect and position the wiring harness.

  40. Instrument Panel Knee Bolster (1) - Install
  41. GM5446424Courtesy of GENERAL MOTORS COMPANY

    Data Link Connector Bolt (1) - Install and tighten [2x] - Fastener Specifications

  42. Instrument Panel Knee Bolster Bolt (2) - Install and tighten [3x] - Fastener Specifications
  43. GM5310879Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  44. Instrument Panel Lower Trim Panel Insulator (1) - Install
  45. GM5310877Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Trim Panel Insulator Retainer (1) - Install

  46. Instrument Panel Insulator Bolt (2) - Install and tighten [2x] - Fastener Specifications
  47. Instrument Panel Insulator Nut (3) - Install and tighten [2x] - Fastener Specifications
  48. GM5300282Courtesy of GENERAL MOTORS COMPANY

    Attach the hood primary latch release cable end retainer to the hood primary latch release cable handle (1).

  49. GM5443235Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  50. Instrument Panel Lower Airbag - Driver Side (2) - Install
  51. Instrument Panel Lower Airbag Nut (1) - Install and tighten [2x] - Fastener Specifications
  52. GM5488426Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console (1) - Install - Front Floor Console Removal and Installation (with M5N) , or Front Floor Console Removal and Installation (with MQA) , or Front Floor Console Removal and Installation (Blackwing)

  53. GM5433957Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Center Trim Pad (1) - Install

  54. Return the steering column to its original position.
  55. GM5441313Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  56. Hazard Warning Switch (2) - Install
  57. Firmly secure the hazard warning switch (2) straight forward and ensure it is fully seated.
  58. Hazard Warning Switch Bolt (1) - Install and tighten [2x] - Fastener Specifications
  59. GM5482913Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  60. Heater and Air Conditioning User Interface Control (2) - Install
  61. Heater and Air Conditioning Control Bolt (1) - Install and tighten [2x] - Fastener Specifications
  62. GM5422150Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Trim Plate (2) - Install

  63. Instrument Panel Center Air Outlet Bolt (1) - Install and tighten [3x] - Fastener Specifications
  64. Connect the electrical connectors.
  65. GM5422046Courtesy of GENERAL MOTORS COMPANY

    Radio Control (2) - Install

  66. Radio Control Bolt (1) - Install and tighten [2x] - Fastener Specifications
  67. GM5422026Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Radio Front Trim Plate (1) - Install

  68. GM5422024Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Radio Front Trim Plate (1) - Install

  69. GM5421735Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Outer Trim Cover - Left Side (1) - Install

  70. Enable the SIR System. SIR Disabling and Enabling
