Removal Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
With a flat bladed plastic trim tool, start at the top to release the clip.
- Instrument Panel Radio Front Trim Plate (1) - Remove
With a flat bladed plastic trim tool, start at the top to release the clip.
- Instrument Panel Radio Front Trim Plate (1) - Remove
Radio Control Bolt (1) - Remove [2x]
- Disconnect the electrical connectors.
- Radio Control (2) - Remove
Instrument Panel Center Air Outlet Bolt (1) - Remove [3x]
- Instrument Panel Trim Plate (2) - Remove

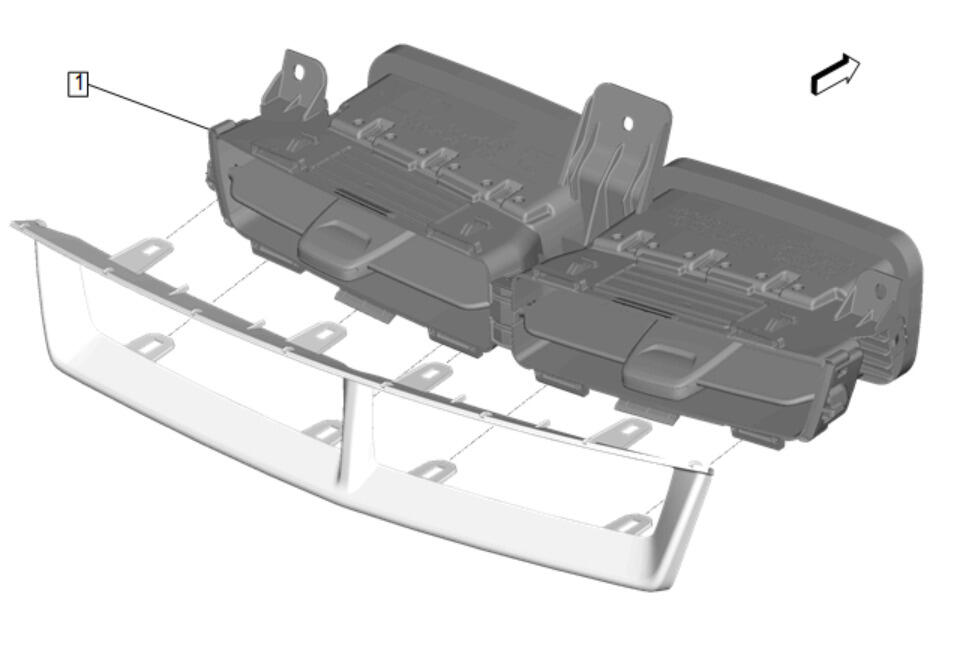

Release the retainers to remove the instrument panel center air outlet (1) from the instrument panel trim plate.
