Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

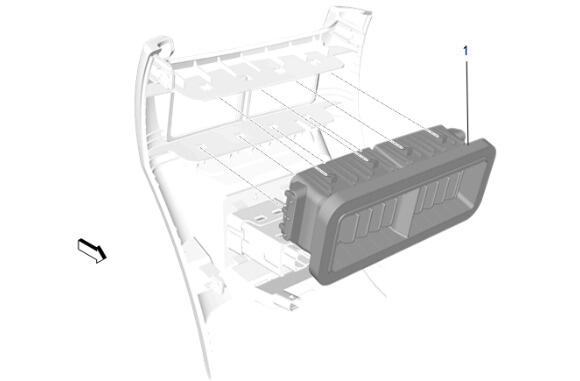

  1. GM5869049Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Rear Air Outlet (1) - Install

  2. GM5867046Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  3. Front Floor Console Rear Trim Panel (1) - Install
