Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
  1. GM5312731Courtesy of GENERAL MOTORS COMPANY

    Body Control Module Bracket Bolt (1) - Remove

  2. Unlock and lower the body control module bracket (2) from the instrument panel lower trim panel insulator.
  3. GM5312733Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Insulator Bolt (1) - Remove [4x]

  4. GM5482805Courtesy of GENERAL MOTORS COMPANY

    Release the detent (2) from the instrument panel lower trim panel insulator.

  5. Detach the wiring harness clips (1) from the body control module bracket.
  6. Disconnect the body control module connectors (3).
  7. Body Control Module (4) - Remove
  8. GM5312734Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Trim Panel Insulator - Right Side (1) - Remove

  9. Disconnect the electrical connector.

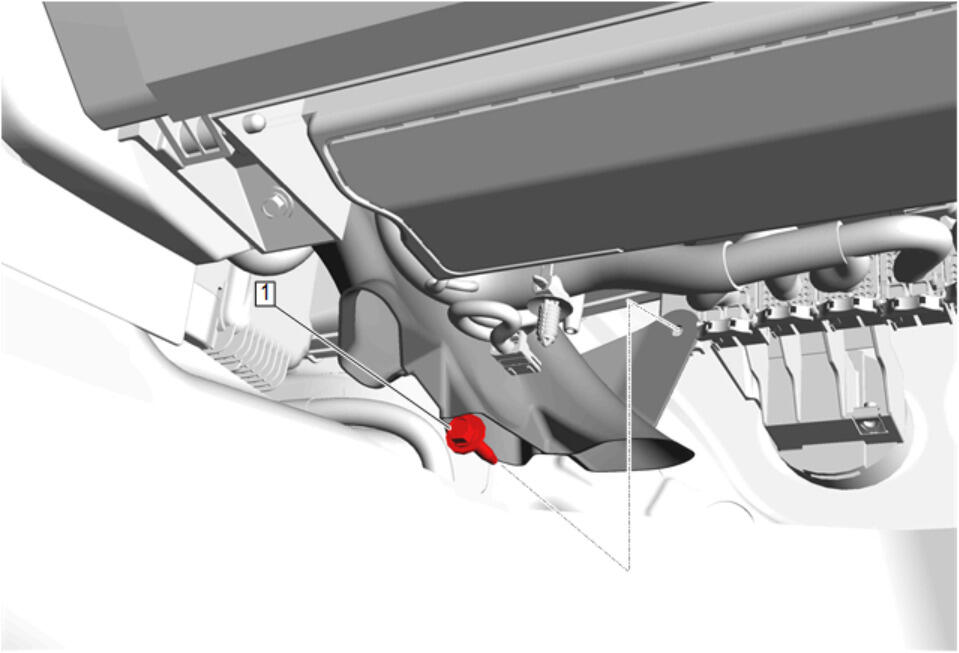

  10. GM5325698Courtesy of GENERAL MOTORS COMPANY

    Floor Front Air Outlet Duct Bolt (1) - Remove

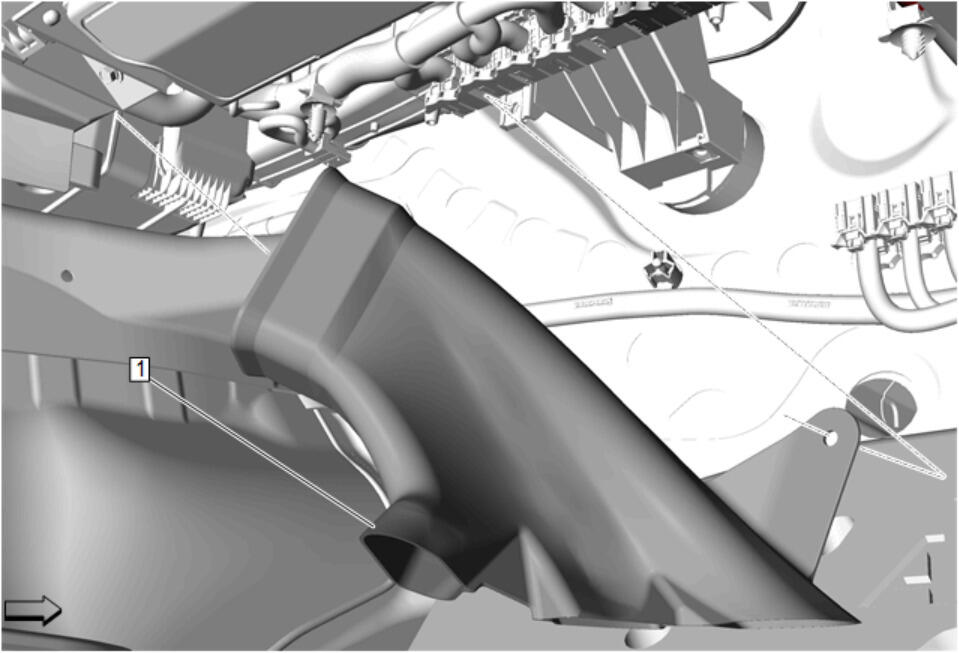

  11. GM5325702Courtesy of GENERAL MOTORS COMPANY

    Floor Front Air Outlet Duct - Right Side- Outer (1) - Remove
