Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
  1. GM5493268Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Carrier (1) - Remove - Instrument Panel Carrier Replacement (without Head Up Display) , or Instrument Panel Carrier Replacement (with Head Up Display)

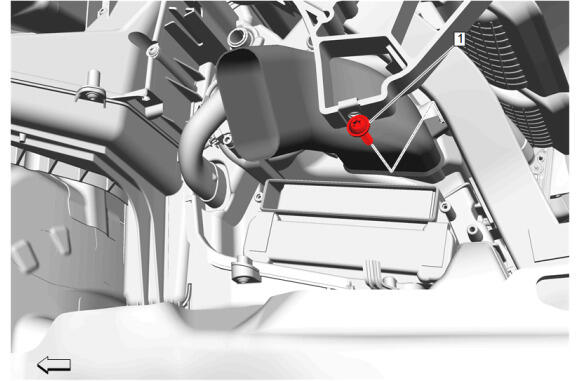

  2. GM5644648Courtesy of GENERAL MOTORS COMPANY

    Heater and Air Conditioning Evaporator and Blower Upper and Blow Lower Case Bolt (1) - Remove

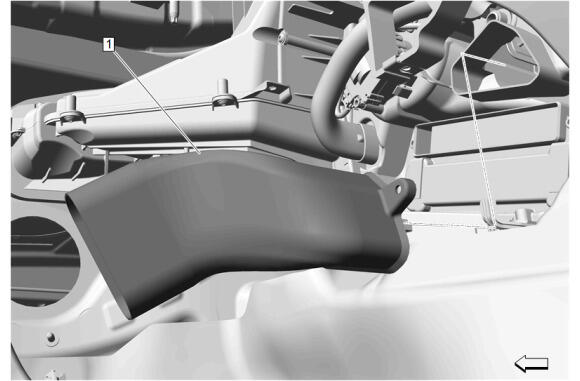

  3. GM5644650Courtesy of GENERAL MOTORS COMPANY

    Floor Front Air Outlet Duct - Left Side- Inner (1) - Remove
