Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

Disable the SIR system. SIR Disabling and Enabling
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Lower Airbag Nut (1) - Remove [2x]
Instrument Panel Lower Airbag - Passenger Side (2) - Remove
Disconnect the electrical connector.
Courtesy of GENERAL MOTORS COMPANY

Body Control Module Bracket Bolt (1) - Remove
Unlock and lower the body control module bracket (2) from the instrument panel lower trim panel insulator.
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Insulator Bolt (1) - Remove [4x]
Courtesy of GENERAL MOTORS COMPANY

Release the detent (2) from the instrument panel lower trim panel insulator.
Detach the wiring harness clips (1) from the body control module bracket.
Disconnect the body control module connectors (3).
Body Control Module (4) - Remove
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Lower Trim Panel Insulator - Right Side (1) - Remove
Position the instrument panel lower trim panel insulator out of the way.
Courtesy of GENERAL MOTORS COMPANY

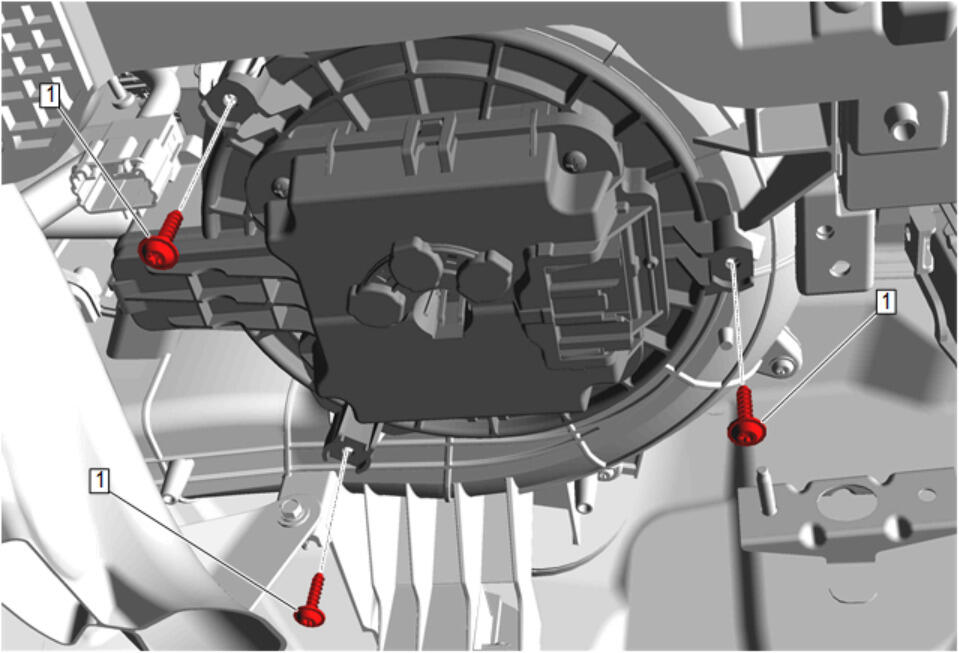

Heater and Air Conditioning Evaporator and Blower Upper and Blow Lower Case Bolt (1) - Remove [3x]
Disconnect the electrical connector.
Courtesy of GENERAL MOTORS COMPANY

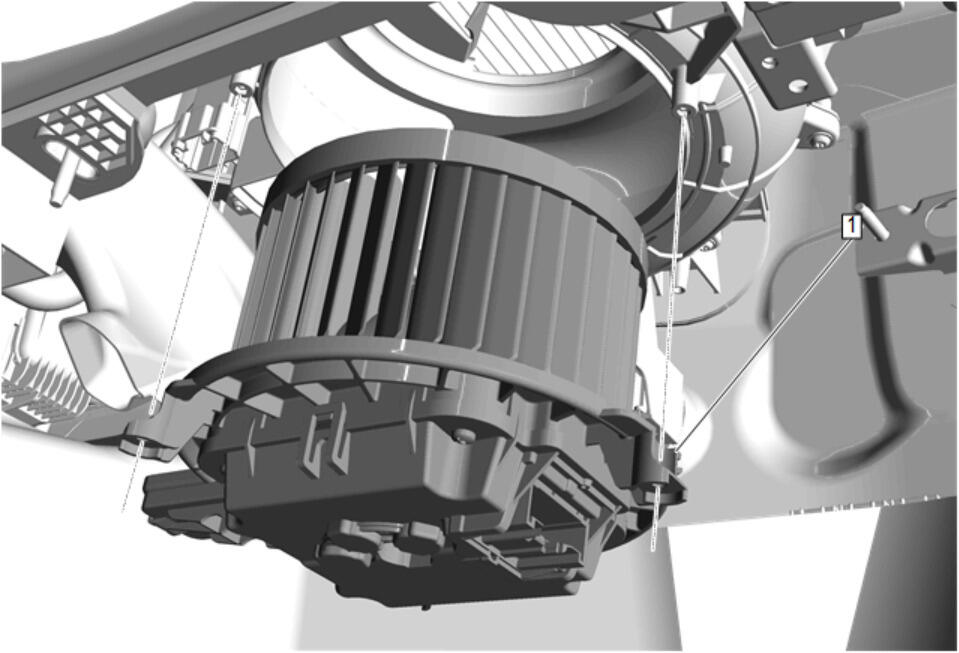

Blower Motor (1) - Remove
