Installation Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

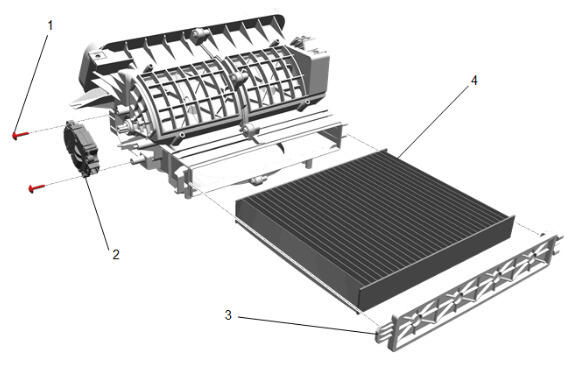

Passenger Compartment Air Filter (4) - Install
- Passenger Compartment Air Filter Cover (3) - Install
- Programmable Temperature Valve Actuator-Air Inlet Valve Actuator (2) - Install
- Heater and Air Conditioning Evaporator and Blower Upper and Blow Lower Case Bolt (1) - Install and tighten [2x] - Fastener Specifications
Air Inlet Housing (1) - Install
Heater and Air Conditioning Evaporator and Blower Upper and Blow Lower Case Bolt (1) - Install and tighten [3x] - Fastener Specifications
Heater and Air Conditioning Evaporator and Blower Upper and Blow Lower Case Bolt (2) - Install and tighten - Fastener Specifications
- Connect the electrical connector. (1)
Heater and Air Conditioning Evaporator and Blower Module (1) - Install - Heater and Air Conditioning Evaporator and Blower Module Removal and Installation
CAUTION:
Refer to Fastener Caution .
