Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
  1. Recover the refrigerant. Refrigerant Recovery and Recharging
  2. GM5314071Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Some components not shown for graphic clarity.

    Air Conditioning Evaporator Thermal Expansion Valve Hose Nut (1) @ Air Conditioning Evaporator Thermal Expansion Valve - Remove

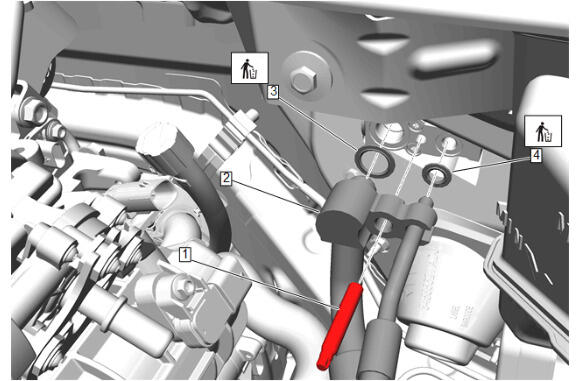

  3. GM5471273Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Some components not shown for graphic clarity.

    Air Conditioning Evaporator Thermal Expansion Valve Stud (1) - Remove

  4. Air Conditioning Refrigerant Heat Exchanger (2) @ Air Conditioning Evaporator Thermal Expansion Valve - Remove
  5. Air Conditioning Evaporator Outlet Tube Seal (3) - Remove and DISCARD
  6. Air Conditioning Evaporator Inlet Tube Seal (4) - Remove and DISCARD

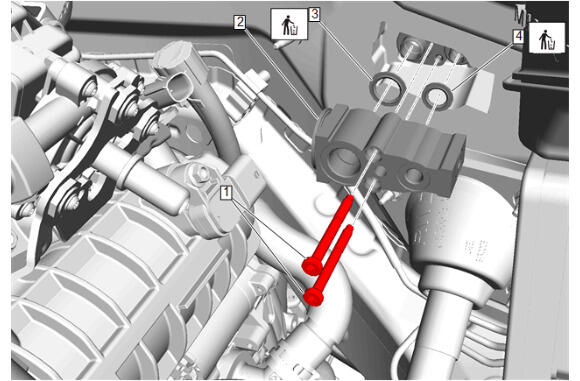

  7. GM5471355Courtesy of GENERAL MOTORS COMPANY

    Air Conditioning Evaporator Thermal Expansion Valve Bolt (1) - Remove [2x]

  8. Air Conditioning Evaporator Thermal Expansion Valve (2) - Remove
  9. Air Conditioning Evaporator Outlet Tube Seal (3) - Remove and DISCARD
  10. Air Conditioning Evaporator Inlet Tube Seal (4) - Remove and DISCARD
