Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

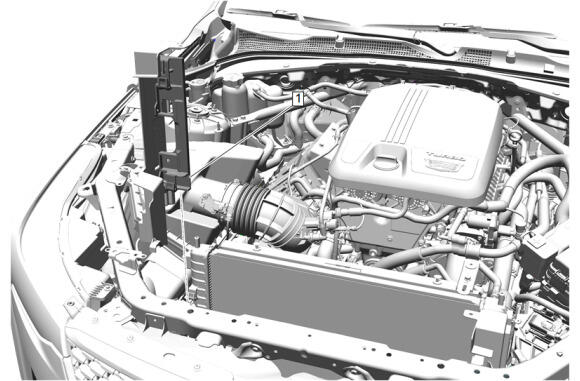

Air Conditioning Condenser Bracket- Left Side (1) - Install
Courtesy of GENERAL MOTORS COMPANY

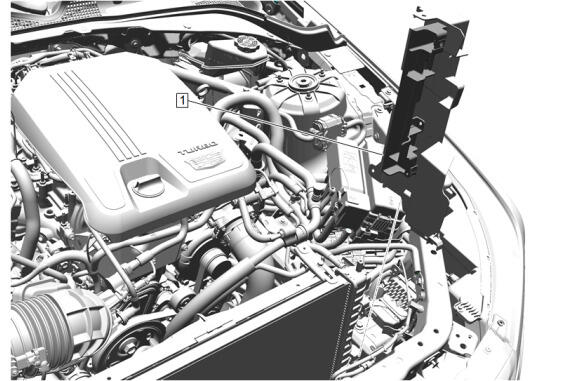

Air Conditioning Condenser Bracket- Right Side (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

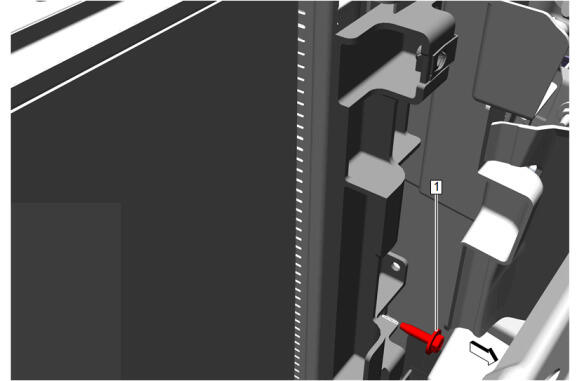

Air Conditioning Condenser Bracket Bolt- Left Side (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

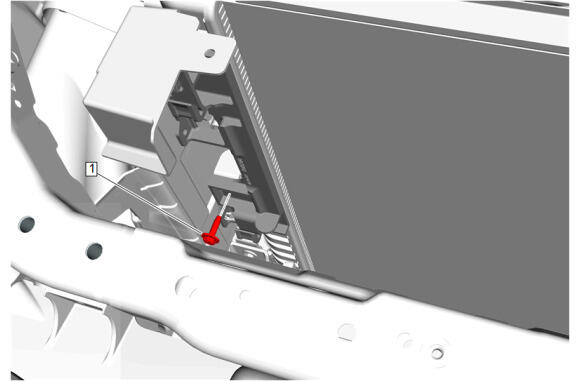

Air Conditioning Condenser Bracket Bolt- Right Side (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Install the air conditioning condenser (1) back into the engine compartment by tilting the left and right side radiator air side baffles outward maneuvering condenser past the baffles.
Courtesy of GENERAL MOTORS COMPANY

Air Conditioning Condenser Bolt (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Radiator Air Seal Retainer (2) - Install [2x]
Air Conditioning Condenser Tube Bolt (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Radiator Air Seal Retainer (1) - Install [2x]
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Air Conditioning Sealing Washers Oil or Lubricant Exposure Caution .

Air Conditioning Condenser Hose Seal (2) - Install NEW
Air Conditioning Refrigerant Heat Exchanger (1) @ Air Conditioning Condenser - Install
Courtesy of GENERAL MOTORS COMPANY

Air Conditioning Compressor and Condenser Hose Seal (2) - Install NEW
Air Conditioning Evaporative Connector Hose/Tube and Compressor Hose (1) @ Air Conditioning Condenser - Install
Courtesy of GENERAL MOTORS COMPANY

Air Conditioning Condenser Tube Clip (2) - Install
Air Conditioning Compressor Hose Nut (1) @ Air Conditioning Condenser - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Radiator Upper Bracket - Left Side (2) - Install
Radiator Upper Bracket Bolt (1) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Radiator Upper Bracket - Right Side (3) - Install
Radiator Upper Bracket Bolt (2) - Install and tighten [2x] - Fastener Specifications
Retainer (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Radiator Air Upper Baffle (2) - Install
Radiator Air Upper Deflector Retainer (1) - Install [7x]
Recharge the refrigerant. Refrigerant Recovery and Recharging
Inspect for refrigerant leaks.
