Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

Recover the refrigerant. Refrigerant Recovery and Recharging
Courtesy of GENERAL MOTORS COMPANY

Retainer Spring (1) - Release
Charge Air Cooler Outlet Air Tube (2) @ Throttle Body (3) - Remove
Remove the left front tire and wheel. Tire and Wheel Removal and Installation
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Quantity of fasteners may vary based on option content.

Front Tire Front Air Deflector Bolt (1) - Remove [4x]
Front Tire Front Air Deflector (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

Front Bumper Fascia Air Deflector Screw (1) - Remove [3x]
Front Bumper Upper Fascia Screw (2) - Remove [2x]
Courtesy of GENERAL MOTORS COMPANY
NOTE:
- Some components not shown for graphic clarity.
- Quantity of fasteners may vary based on option content.
Front Compartment Air Deflector Retainer (2) - Remove [2x]
Engine Front Splash Shield Screw (1) - Remove [5x]
Engine Front Splash Shield (3) - Remove
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

Front Wheelhouse Liner Bolt (1) - Remove [7x]
Front Wheelhouse Liner Retainer (2) - Remove [4x]
Front Wheelhouse Liner- Left Side (3) - Remove
Courtesy of GENERAL MOTORS COMPANY

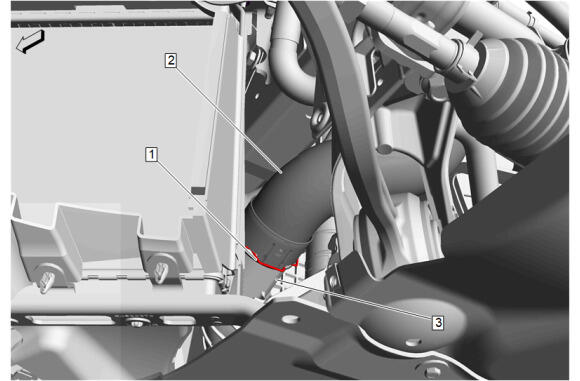

Retainer Spring (1) - Release
Charge Air Cooler Outlet Air Tube (2) @ Charge Air Cooler (3) - Remove
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

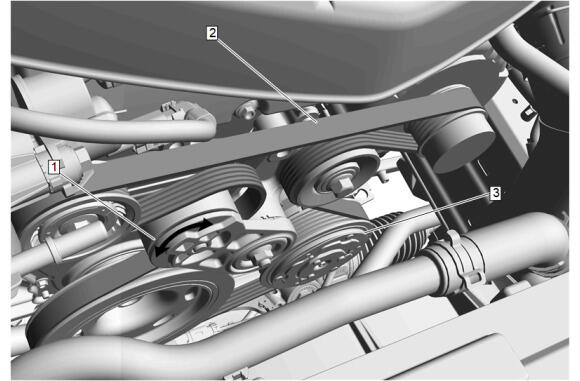

Using the appropriate tool, rotate the drive belt tensioner (1) counterclockwise to release the tension on the accessory drive primary belt (2) for removal.
Accessory Drive Primary Belt (2) @ Air Conditioning Compressor (3) - Remove
Courtesy of GENERAL MOTORS COMPANY

Unfasten the radiator inlet hose clip (1), and position the radiator inlet hose (2) out of the way.
Courtesy of GENERAL MOTORS COMPANY

Disconnect the electrical connectors. (1) [3x]
Courtesy of GENERAL MOTORS COMPANY

Air Conditioning Compressor Hose Nut (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Air Conditioning Evaporative Connector Hose/Tube and Compressor Hose (1) @ Air Conditioning Compressor - Remove
Air Conditioning Compressor and Condenser Hose Seal (2) - Remove and DISCARD
Air Conditioning Compressor Hose Seal (3) - Remove and DISCARD
Courtesy of GENERAL MOTORS COMPANY

Engine Wiring Harness Connector Bracket Nut (1) - Remove
Engine Wiring Harness Connector Bracket (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

Air Conditioning Compressor Nut (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Air Conditioning Compressor Nut (1) - Remove
Air Conditioning Compressor Bolt (2) - Remove
Maneuver the air conditioning compressor (3) out from the engine compartment.
