Removal Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
- Raise and support the vehicle. Lifting and Jacking the Vehicle
- Remove the tire and wheel assembly. Tire and Wheel Removal and Installation

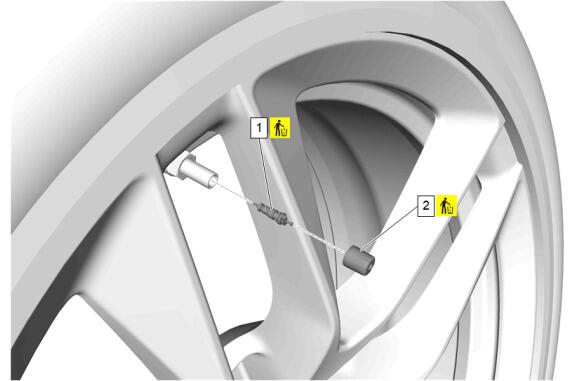

Tire Pressure Indicator Sensor Cap (2) - Remove and DISCARD
- Tire Valve Front and Rear Stem (1) - Remove and DISCARD
- When using the tire machine to separate the tire bead from the wheel, position the bead breaking fixture 90 degrees from the valve stem.
- When removing the tire from the wheel, ensure a tolerance is maintained between the tire machine fixture, or irons, tire bead, and the sensor.
- Dismount the tire from the wheel. Tire Dismounting and Mounting
- If a tire sealant product was used/found within the tire/wheel, use a mild dish soap, clean water and shop cloths to remove the sealant residue from the tire and wheel surfaces.

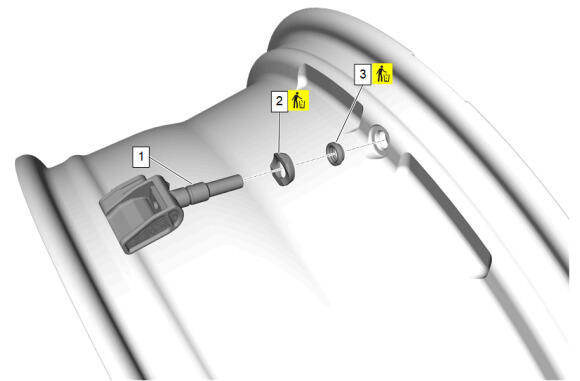

Tire Pressure Indicator Sensor Nut (1) - Remove and DISCARD
Tire Pressure Indicator Sensor (1) - Remove
- Remove and DISCARD the metal tire pressure indicator sensor washer (2).
- Remove and DISCARD the rubber tire pressure indicator sensor washer (3).
NOTE:
Before the tire is removed from the wheel note the following items:
