Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

Raise and support the vehicle. Lifting and Jacking the Vehicle
Remove the right rear tire and wheel assembly. Tire and Wheel Removal and Installation
Courtesy of GENERAL MOTORS COMPANY

Rear Tire Front Air Deflector Bolt (1) - Remove [2x]
Rear Tire Front Air Deflector- Left Side (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

Rear Wheelhouse Liner Screw (1) - Remove
Underbody Rear Air Deflector Plastic Nut (2) - Remove [3x]
Underbody Rear Air Deflector Bolt (3) - Remove [3x]
Underbody Rear Air Deflector Nut (4) - Remove [2x]
Underbody Rear Air Deflector- Left Side (5) - Remove
Courtesy of GENERAL MOTORS COMPANY

Rear Tire Front Air Deflector Bolt (2) - Remove [2x]
Rear Tire Front Air Deflector- Right Side (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Rear Wheelhouse Liner Screw (1) - Remove
Underbody Rear Air Deflector Bolt (2) - Remove [3x]
Underbody Rear Air Deflector Plastic Nut (3) - Remove [3x]
Underbody Rear Air Deflector Nut (4) - Remove [2x]
Underbody Rear Air Deflector- Right Side (5) - Remove
Courtesy of GENERAL MOTORS COMPANY

Floor Panel Number 4 Cross Bar Reinforcement Bolt (2) - Remove [6x]
Floor Panel Reinforcement (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Catalytic Converter Nut (1) - Remove [2x]
Courtesy of GENERAL MOTORS COMPANY

Exhaust Muffler (1) @ Exhaust Intermediate Pipe Insulator - Left Side (2) - Separate
Exhaust Muffler (1) @ Exhaust Rear Muffler Insulator - Left Side (3) - Separate
Courtesy of GENERAL MOTORS COMPANY

Exhaust Muffler (1) @ Exhaust Intermediate Pipe Insulator - Right Side (2) - Separate
Exhaust Muffler (1) @ Exhaust Rear Muffler Insulator - Right Side (3) - Separate
Courtesy of GENERAL MOTORS COMPANY

With the aide of an assistant remove the exhaust muffler (1).
Catalytic Converter Gasket (2) - Remove and DISCARD
Have an assistant apply the brakes.
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
DO NOT use air tools to remove the wheel drive shaft nut. Damage to the wheel drive shaft threads could occur. Use hand tools only.

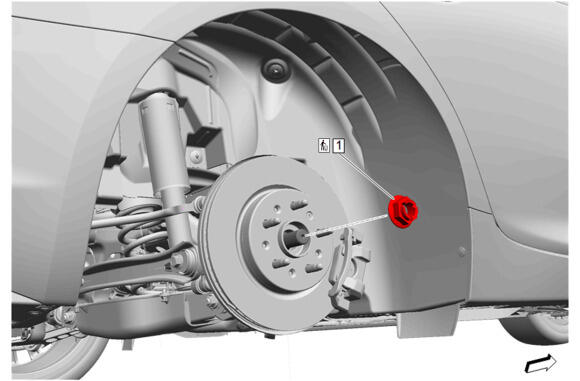

Rear Wheel Drive Shaft Nut (1) - Remove and DISCARD
Courtesy of GENERAL MOTORS COMPANY

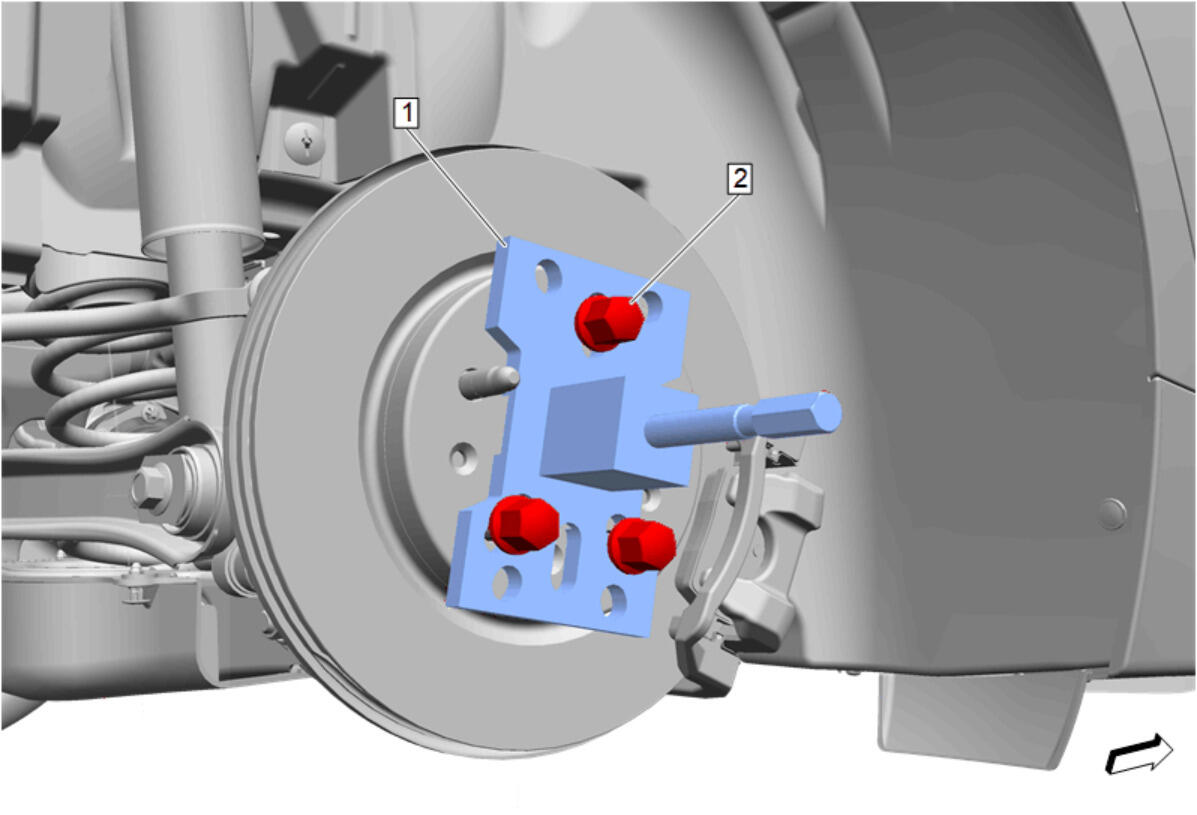

Install the DT-45859 Axle Remover (1) to the rear wheel hub and secure with 3 wheel nuts (2) hand tightened.
Using the DT-45859 Axle Remover (1), release the rear wheel drive shaft from the rear wheel hub.
Remove the 3 wheel nuts (2) and the DT-45859 Axle Remover (1) from the rear wheel hub.
Courtesy of GENERAL MOTORS COMPANY

NOTE:
The rear wheel drive shaft universal joint retainer (1) and washers (2) are serviced as a rear wheel drive shaft universal joint retainer kit consisting of 2 bolts and 1 washer.

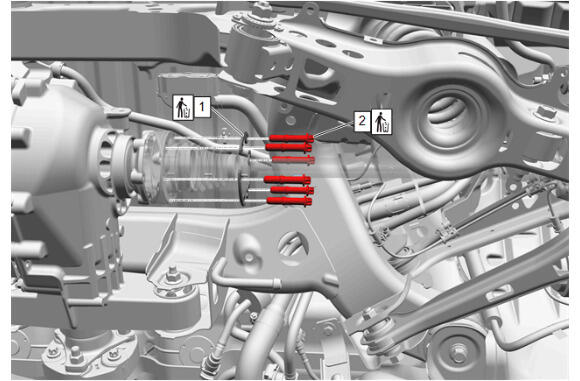

Remove and DISCARD the 6 rear wheel drive shaft universal joint retainer (1).
Remove and DISCARD the 3 wheel drive shaft washers (2).
Courtesy of GENERAL MOTORS COMPANY

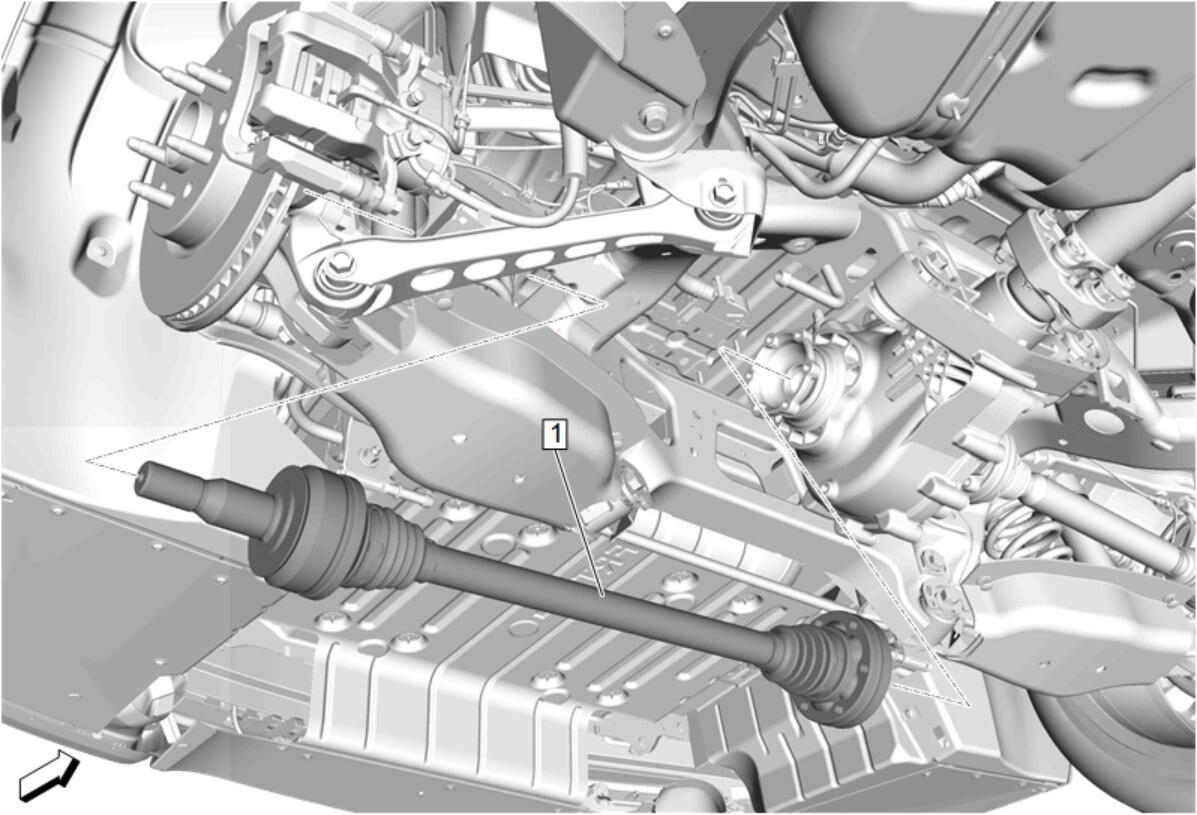

Rear Wheel Drive Shaft (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Rear Wheel Drive Shaft Washer (1) - Remove and DISCARD
