Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Front Wheel Drive Intermediate Shaft Seal (1) - Install NEW
Front Wheel Drive Intermediate Shaft Retaining Ring (2) - Install NEW
Apply a small amount of grease to the front wheel drive intermediate shaft splines. Adhesives, Fluids, Lubricants, and Sealers
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Ensure that the front wheel drive half shaft (1) is securely engaged to the front wheel drive intermediate shaft.

Front Wheel Drive Half Shaft (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Steering Linkage Outer Tie Rod (1) @ Steering Knuckle - Install

CAUTION:

Refer to Fastener Caution .

Steering Linkage Outer Tie Rod Nut (2) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

NOTE:
The final torque on the steering knuckle nut (1) is to be applied during the front camber adjustment procedure.

Front Suspension Strut @ Steering Knuckle - Install
Steering Knuckle Bolt (2) - Install [2x]
Steering Knuckle Nut (1) - Install and hand tighten [2x]
Have an assistant apply the brakes.
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
This vehicle is equipped with torque-to-yield or single use fasteners. Install a NEW torque-to-yield or single use fastener when installing this component. Failure to replace the torque-to-yield or single use fastener could cause damage to the vehicle or component.

Front Wheel Drive Shaft Nut (1) - Install NEW and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

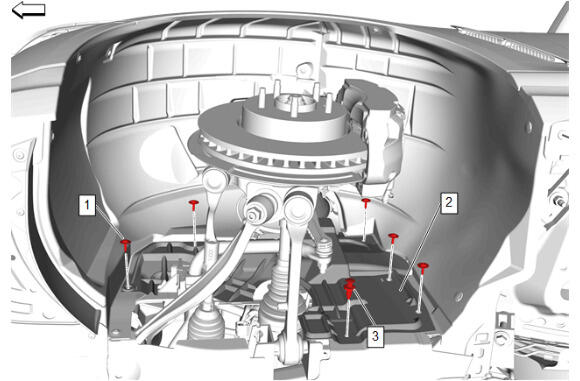

Engine Front Splash Shield (2) - Install
Engine Front Splash Shield Bolt (1) - Install and tighten [5x] - Fastener Specifications
Engine Front Splash Shield Retainer (3) - Install
Install the left front tire and wheel assembly. Tire and Wheel Removal and Installation
Remove the support and lower the vehicle.
Verify the front camber adjustment. Front Camber Adjustment
