Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

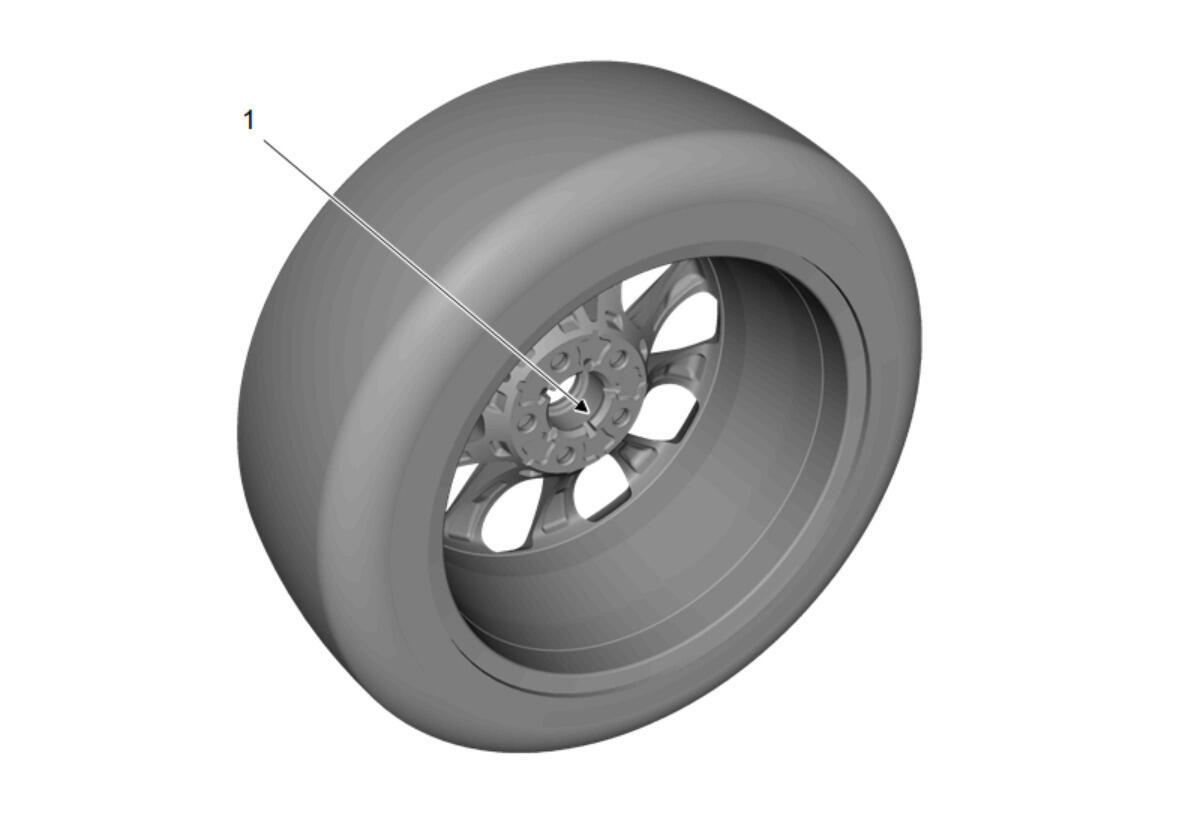

Apply a small amount of lubricant to the inner diameter of the wheel hub pilot hole (1) where it contacts the wheel hub flange. Adhesives, Fluids, Lubricants, and Sealers
Courtesy of GENERAL MOTORS COMPANY

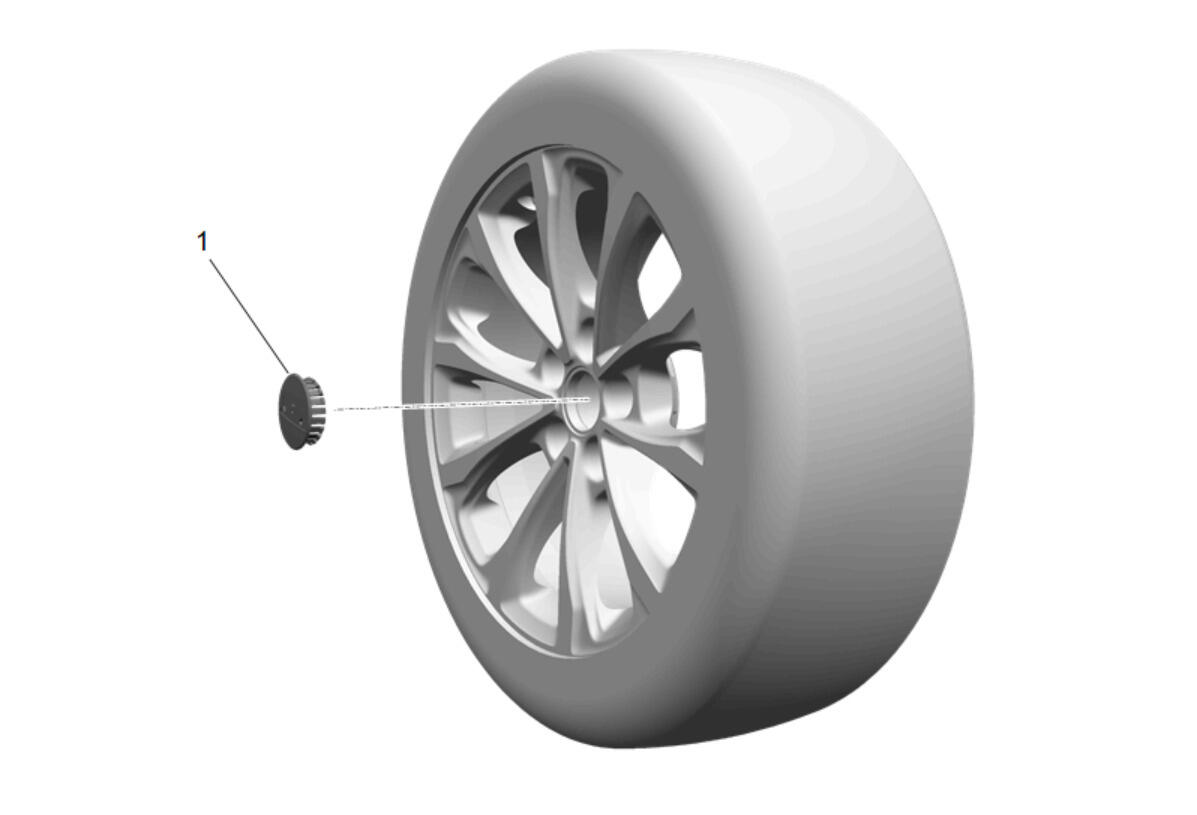

Wheel Trim Cap (1) - Install
Courtesy of GENERAL MOTORS COMPANY

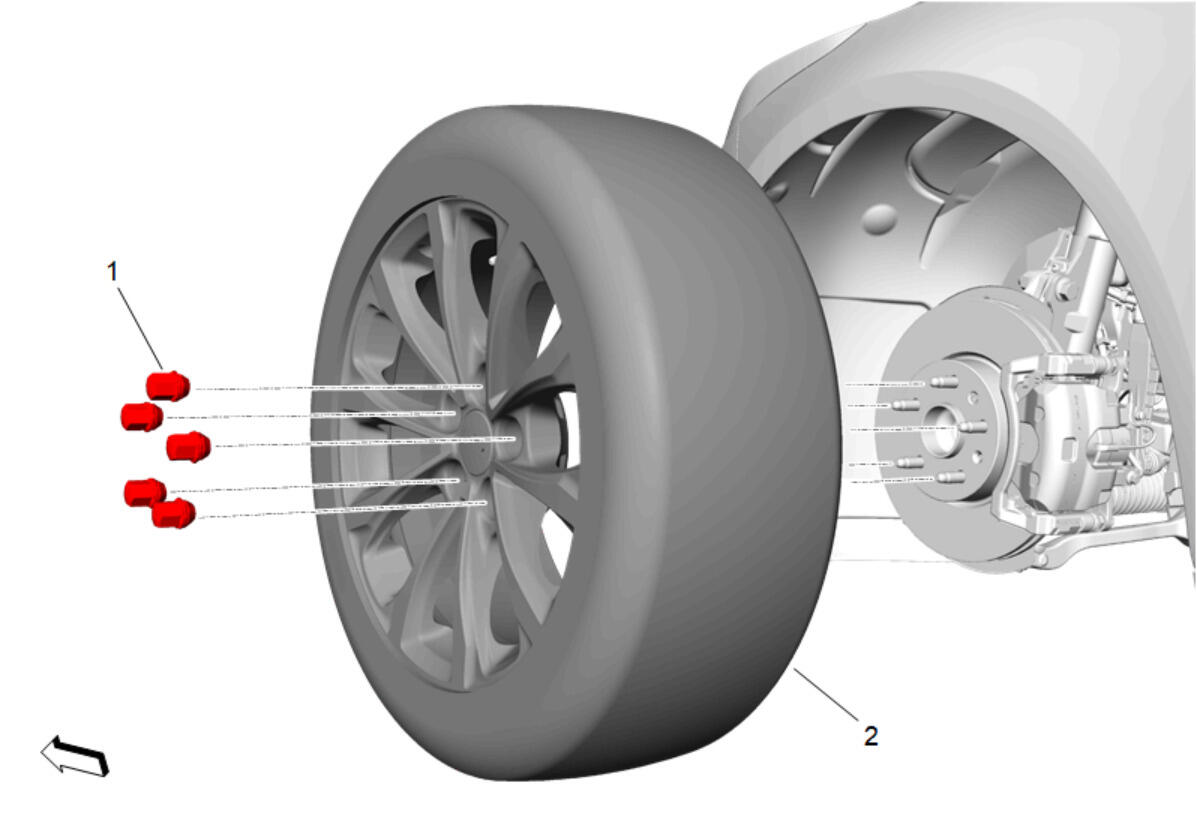

Tire and Wheel Assembly (2) - Install

WARNING:

Never grease or lubricate wheel nuts, studs and mounting surfaces. Wheel nuts, studs, and mounting surfaces must be clean and dry. Tightening the lubricated parts can cause damage to the wheel studs. This can cause a wheel to come off when the vehicle is moving, causing loss of control and possibly personal injury.

Wheel Nut (1) - Install and hand tighten [5x]
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Improperly tightened wheel bolts or nuts can lead to brake pulsation and rotor damage. In order to avoid expensive brake repairs, evenly tighten the wheel bolts or nuts to the proper torque specification.

CAUTION:
Refer to Fastener Caution .

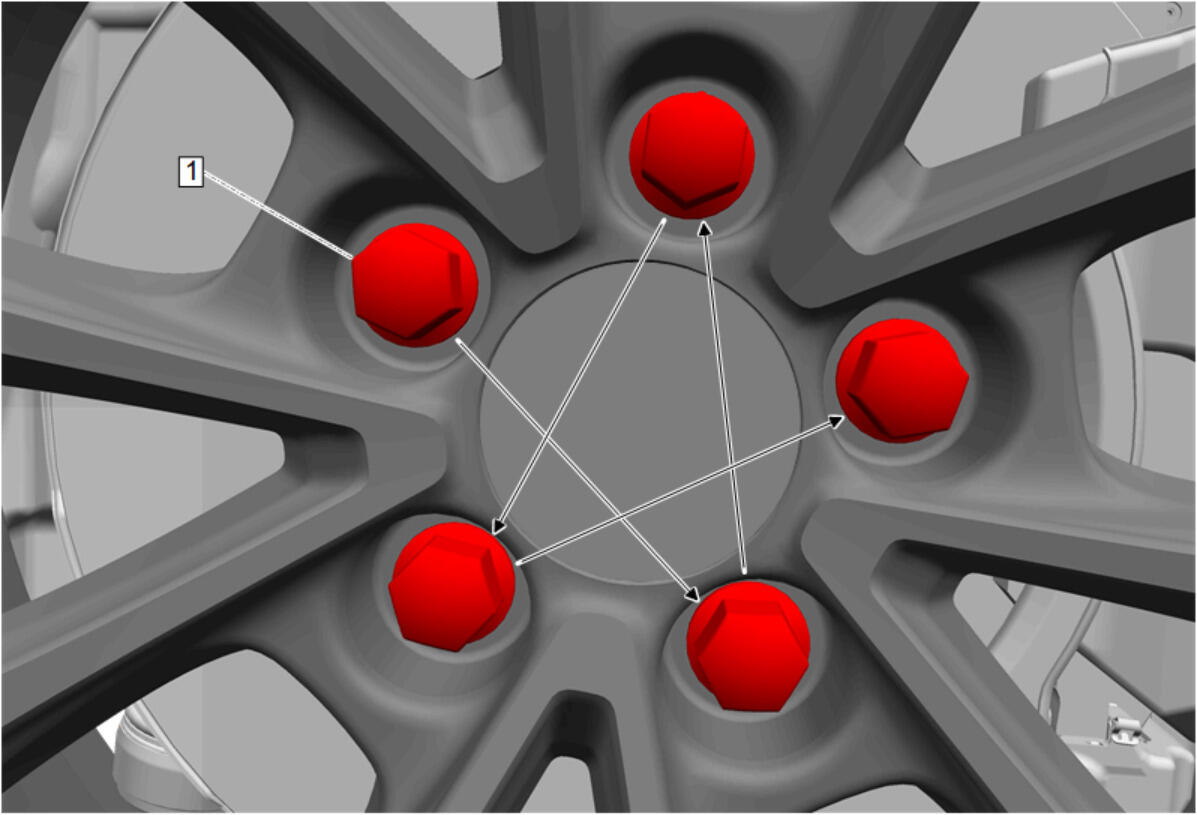

Using a torque wrench and the appropriate socket, evenly tighten the 5 wheel nuts (1) in a crisscross pattern. Fastener Specifications
Remove the support and lower the vehicle.
