Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

In order to equalize wear, rotate the tires at the specified intervals. Maintenance Schedule In addition to scheduled rotation, rotate the tire and wheel assemblies whenever you notice uneven tire wear.

Radial tires tend to wear faster in the shoulder area, particularly in front positions, due to design. Radial tires in non-drive locations may develop an irregular wear pattern that can generate tire noise. This especially makes regular tire rotation necessary.

  1. Raise and support the vehicle. Lifting and Jacking the Vehicle
  2. Remove the tire and wheel assemblies. Tire and Wheel Removal and Installation

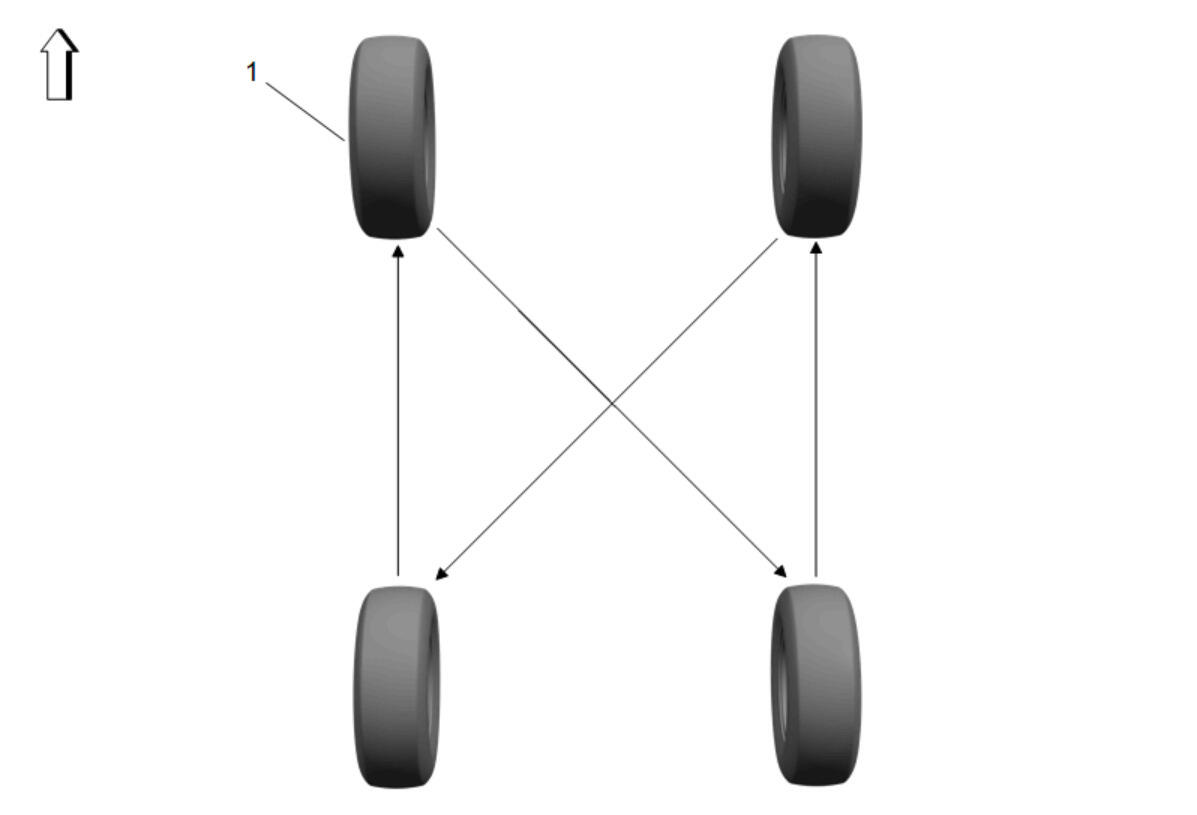

  3. GM5035104Courtesy of GENERAL MOTORS COMPANY

    Rotate the tire and wheel assemblies (1) as shown above [4x].
