Removal Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
- Raise and support the vehicle. Lifting and Jacking the Vehicle
- Remove the rear tire and wheel assembly. Tire and Wheel Removal and Installation

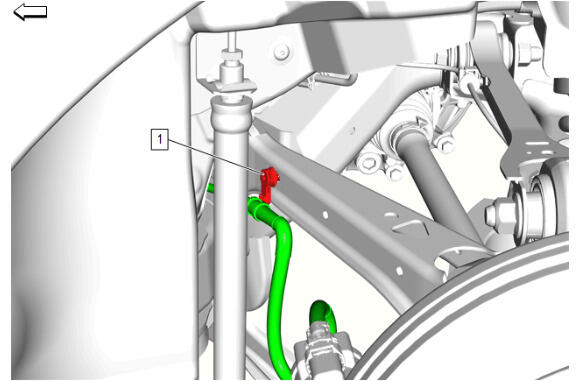

Chassis Rear Wiring Harness Clip (1) - Remove
- Chassis Rear Wiring Harness - Reposition
- NOTE:
Some components shown transparent for graphic clarity.

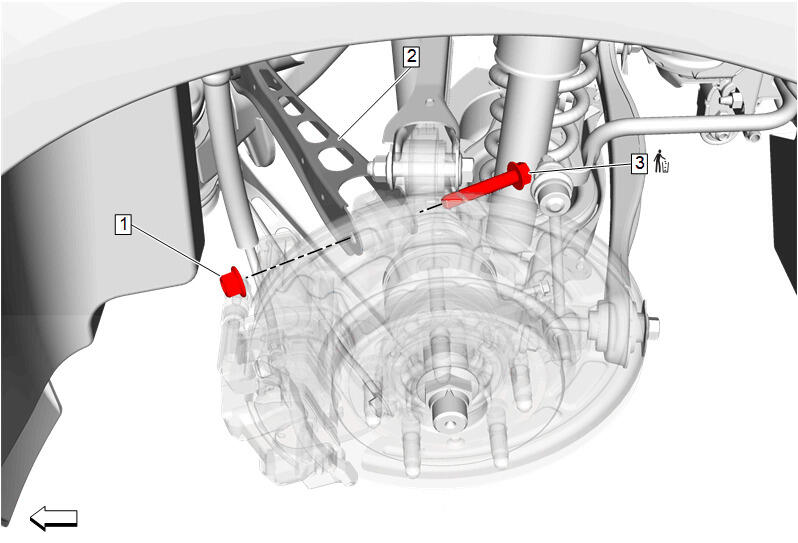

Rear Suspension Trailing Arm Nut (1) - Remove
- Position a suitable jack stand under the rear suspension knuckle to aid in the removal of the rear suspension trailing arm bolt.
- Rear Suspension Trailing Arm Bolt (3) - Remove and DISCARD

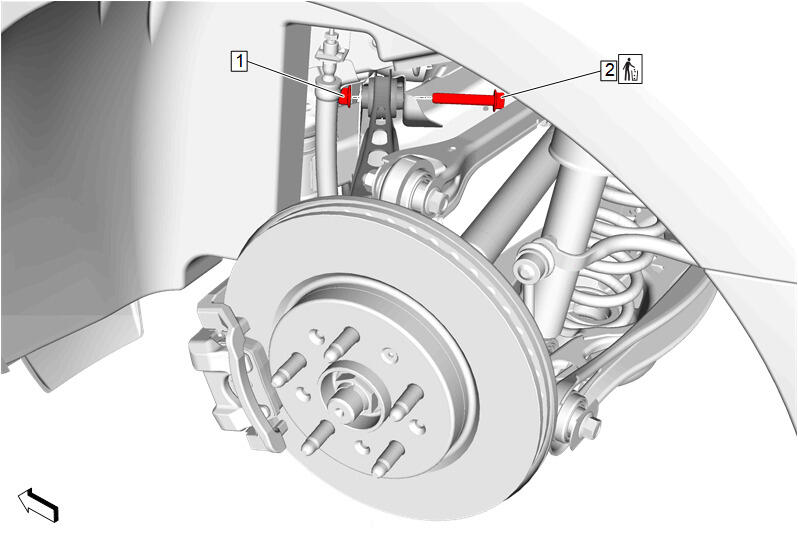

Rear Suspension Trailing Arm Bracket Nut (1) - Remove
- Rear Suspension Trailing Arm Bracket Bolt (2) - Remove and DISCARD
- NOTE:
Some components shown transparent for graphic clarity.
Rear Suspension Upper Trailing Link (1) - Remove
