Installation Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
Rear Suspension Lower Trailing Link (1) - Install
- CAUTION:
This vehicle is equipped with torque-to-yield or single use fasteners. Install a NEW torque-to-yield or single use fastener when installing this component. Failure to replace the torque-to-yield or single use fastener could cause damage to the vehicle or component.

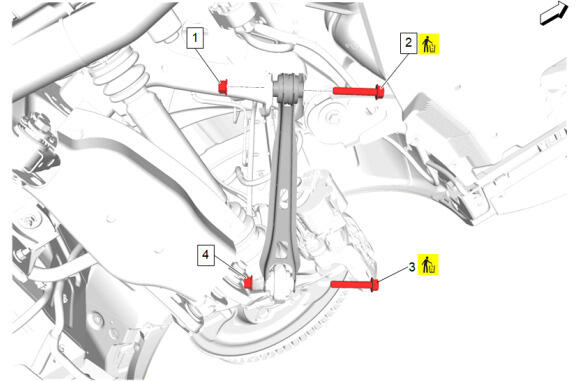

Rear Suspension Trailing Arm Bracket Bolt (2) - Install NEW
- Rear Suspension Trailing Arm Bracket Nut (1) - Install, but do NOT tighten
- Rear Suspension Trailing Arm Bolt (3) - Install NEW
- Rear Suspension Trailing Arm Nut (4) - Install
- Remove the jack stand from under the rear suspension knuckle
- Rear Suspension Trailing Arm Bolt (3) - Tighten - Fastener Specifications

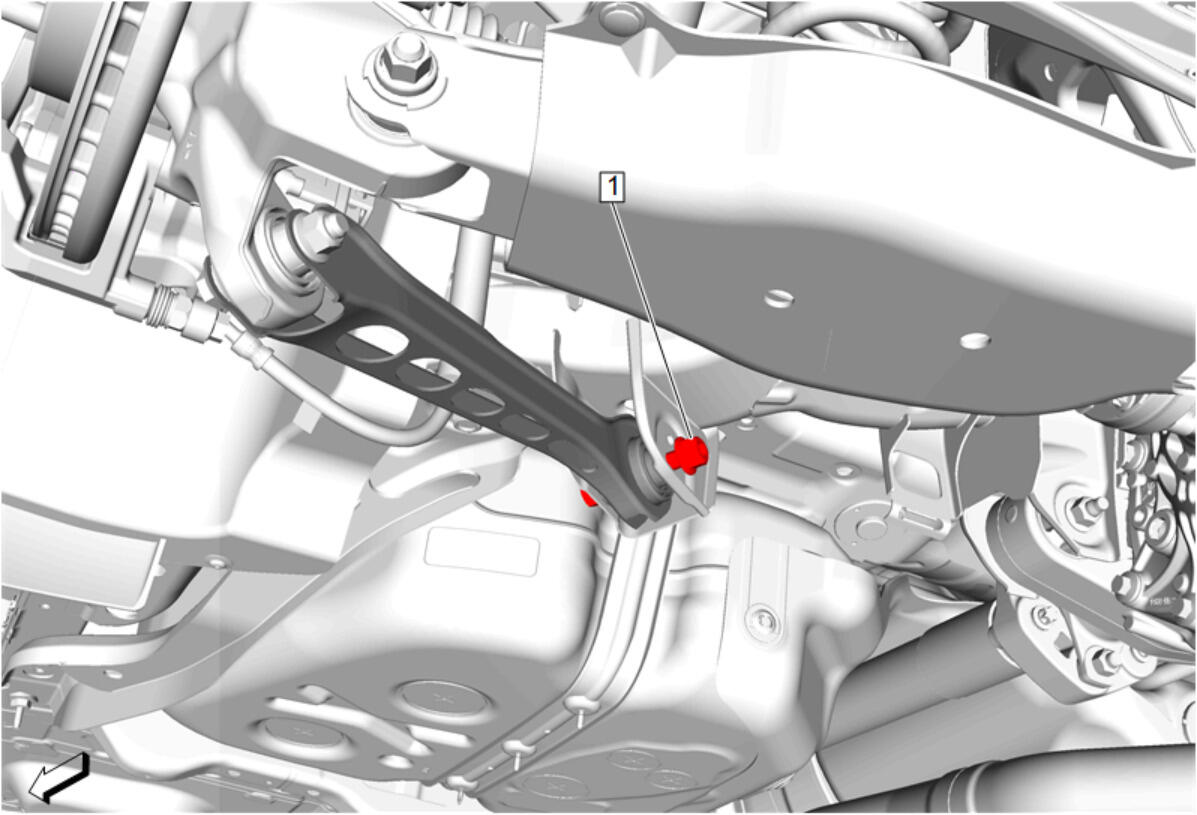

Rear Suspension Trailing Arm Bracket Nut (1) - Tighten - Fastener Specifications

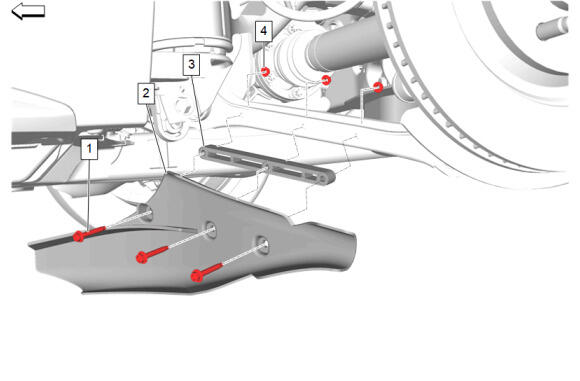

Front Brake Rotor Cooling Duct Spacer (3) - Install
- Rear Brake Rotor Cooling Duct Deflector (2) - Install
- Rear Brake Rotor Cooling Duct Deflector Bolt (1) - Install [3x]
- Rear Brake Caliper Cooling Air Scoop Retainer (4) - Install [3x]
- Rear Brake Rotor Cooling Duct Deflector Bolt (1) - Tighten [3x] - Fastener Specifications
- Install the rear tire and wheel assembly. Tire and Wheel Removal and Installation
- Remove the support and lower the vehicle.
CAUTION:
Refer to Fastener Caution .
