Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Lifting and Jacking the Vehicle
  2. Remove the rear tire and wheel assembly. Tire and Wheel Removal and Installation

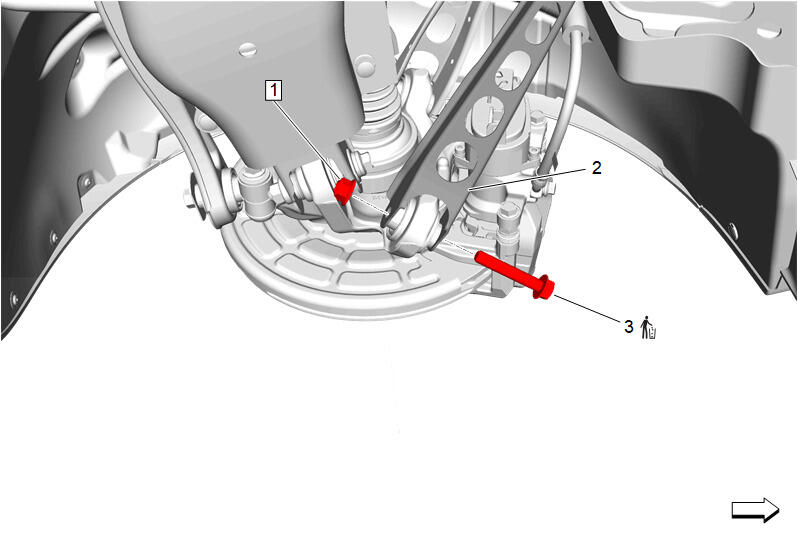

  3. GM5335704Courtesy of GENERAL MOTORS COMPANY

    Rear Suspension Trailing Arm Nut (1) - Remove

  4. Position a suitable jack stand under the rear suspension knuckle to aid in the removal of the rear suspension trailing arm bolt.
  5. Rear Suspension Trailing Arm Bolt (3) - Remove and DISCARD

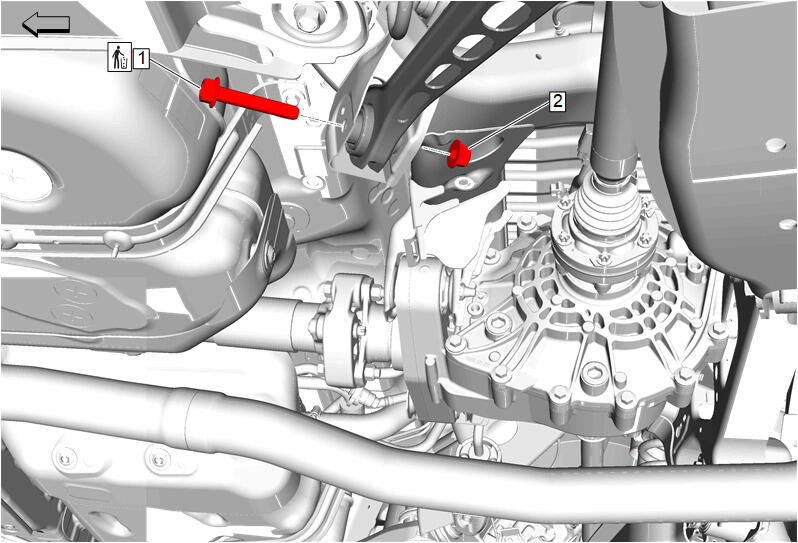

  6. GM5335705Courtesy of GENERAL MOTORS COMPANY

    Rear Suspension Trailing Arm Bracket Nut (2) - Remove

  7. Rear Suspension Trailing Arm Bracket Bolt (1) - Remove and DISCARD

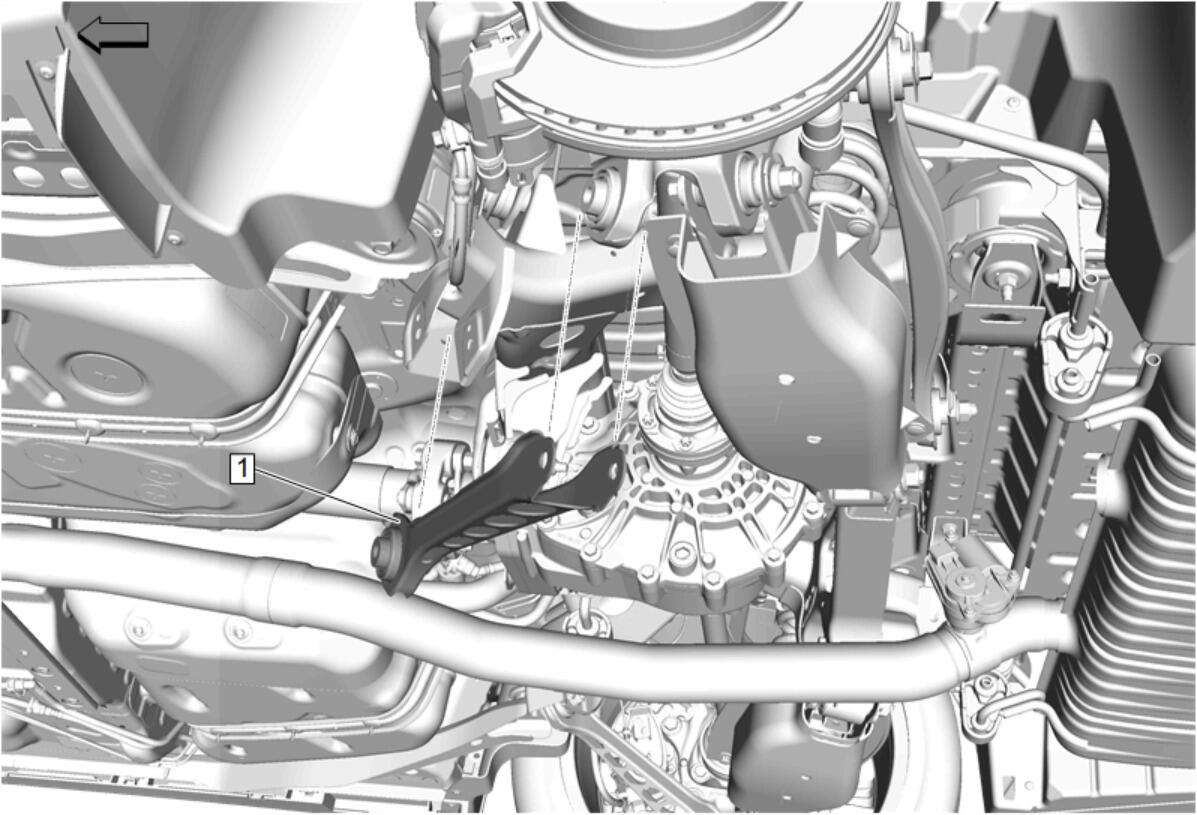

  8. GM5335708Courtesy of GENERAL MOTORS COMPANY

    Rear Suspension Lower Trailing Link (1) - Remove
