Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

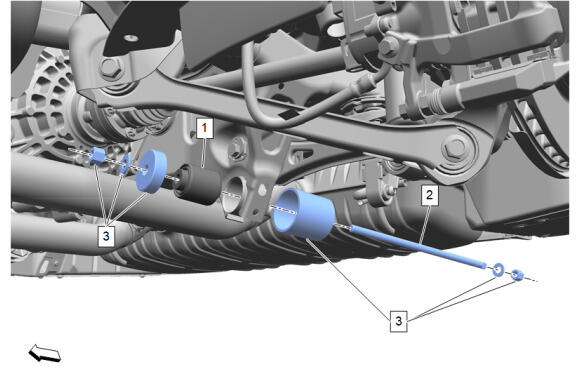

Using J-45725-2 Bushing Remover Installer (2) and DT-50806 - 2 Bushing Remover Installer (3), install the rear suspension lower control arm bushing (1).
Courtesy of GENERAL MOTORS COMPANY

Rear Suspension Lower Control Arm (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
This vehicle is equipped with torque-to-yield or single use fasteners. Install a NEW torque-to-yield or single use fastener when installing this component. Failure to replace the torque-to-yield or single use fastener could cause damage to the vehicle or component.

Rear Suspension Lower Control Arm Inner Bolt (3) - Install NEW
Rear Suspension Lower Control Arm Inner Washer (2) - Install

NOTE:

The final torque on the rear suspension lower control arm inner nut (1) is to be applied during the rear camber setting procedure.

Rear Suspension Lower Control Arm Inner Nut (1) - Install and hand tighten
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Correctly orient the rear coil spring as noted upon removal of the rear suspension lower control arm.

Rear Coil Spring (1) - Install
Support the rear suspension lower control arm (2) with an appropriate jack stand.
Slowly lower the vehicle to apply tension on the rear coil spring (1) and rotate the rear suspension lower control arm (2) and align the rear suspension lower control arm (2) with the rear suspension knuckle.
Courtesy of GENERAL MOTORS COMPANY

Using the jack stand, raise the rear lower control arm enough to aid in the installation of the rear suspension lower control arm bolt (3).
Rear Suspension Lower Control Arm Outer Bolt (3) - Install NEW
Rear Suspension Lower Control Arm Outer Nut (1) - Install

CAUTION:

Refer to Fastener Caution .

Rear Suspension Lower Control Arm Outer Bolt (3) - Tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Rear Shock Absorber Bolt (2) @ Rear Suspension Lower Control Arm (3) - Install NEW and tighten - Fastener Specifications
Remove the jack stand from beneath the rear suspension lower control arm.
Courtesy of GENERAL MOTORS COMPANY

Rear Suspension Lower Control Arm Cover (2) - Install
Install the 4 rear spring pins (1).
Install the rear tire and wheel assembly. Tire and Wheel Removal and Installation
Remove the support and lower the vehicle.
Adjust the rear camber. Rear Camber Adjustment
