Installation Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

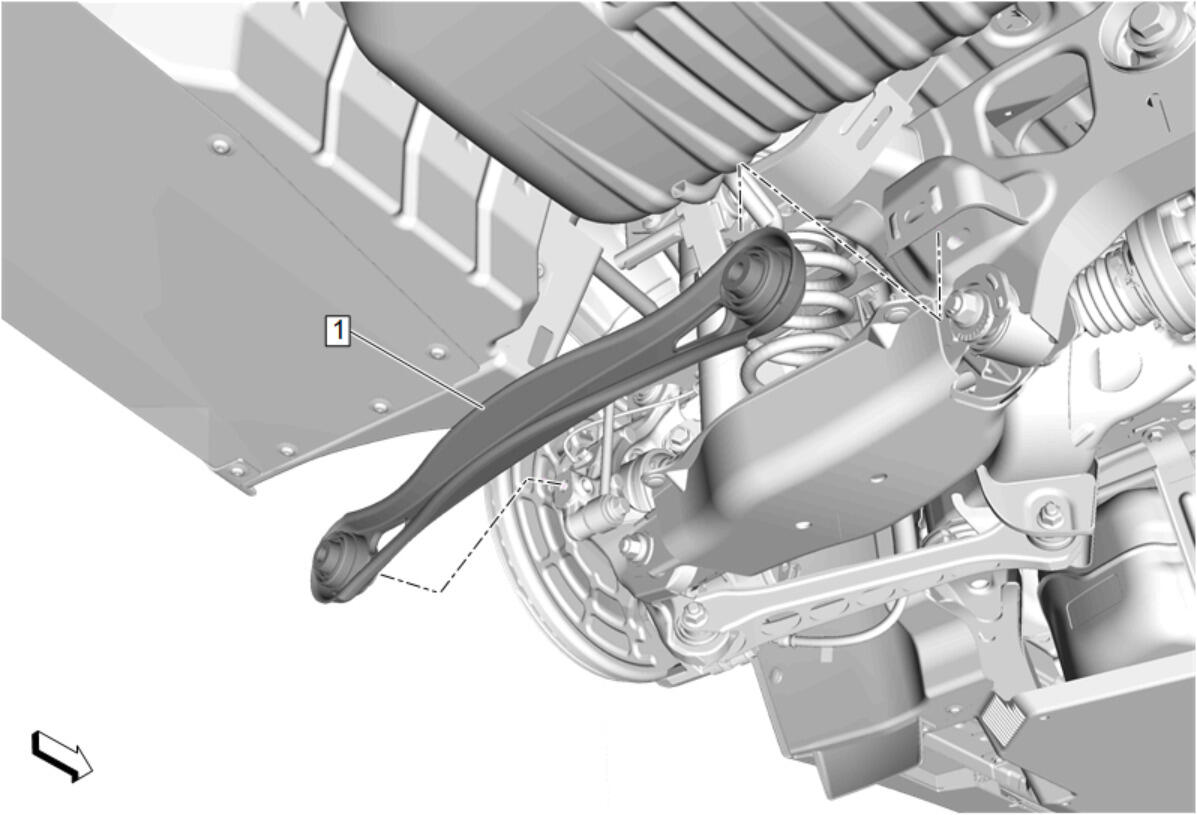

Rear Suspension Adjust Link (1) - Install
- CAUTION:
This vehicle is equipped with torque-to-yield or single use fasteners. Install a NEW torque-to-yield or single use fastener when installing this component. Failure to replace the torque-to-yield or single use fastener could cause damage to the vehicle or component.
Rear Suspension Link Inner Bolt (3) - Install NEW
- Rear Suspension Link Inner Washer (2) - Install
- Rear Suspension Link Inner Nut (1) - Install and hand tighten

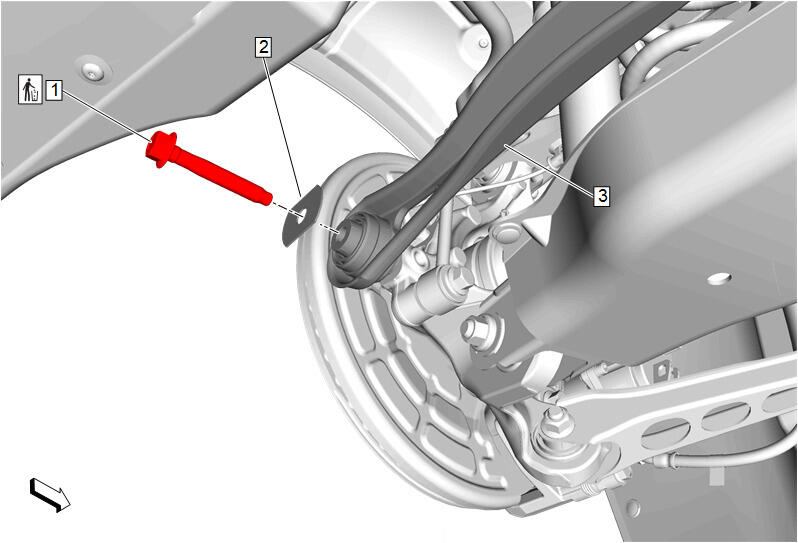

Rear Suspension Adjust Link Washer (2) - Install
- Rear Suspension Adjust Link Bolt (1) - Install NEW and tighten - Fastener Specifications
- Remove the jack stand from under the rear suspension knuckle.
- Install the rear tire and wheel assembly.
- Remove the support and lower the vehicle.
- Adjust the rear toe. Rear Toe Adjustment
NOTE:
The final torque on the rear suspension link inner nut (1) is to be applied during the rear toe setting procedure.
CAUTION:
Refer to Fastener Caution .
