Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

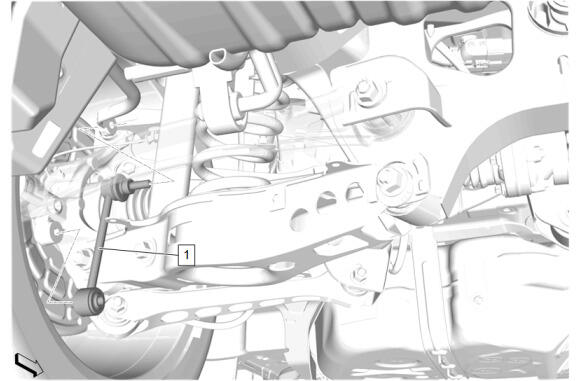

Rear Stabilizer Shaft Link (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

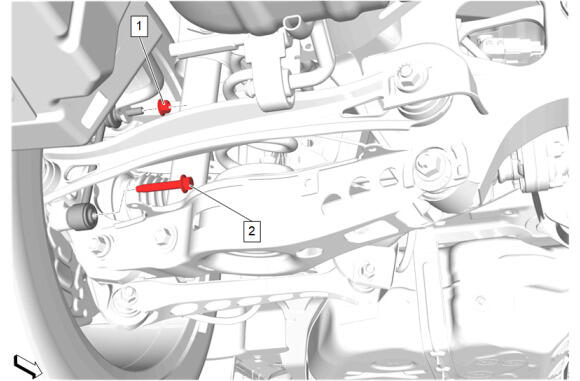

Rear Stabilizer Shaft Link Nut (1) - Install and tighten - Fastener Specifications
Rear Stabilizer Shaft Link Bolt (2) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Rear Suspension Lower Control Arm Cover (2) - Install
Install the 4 rear spring pins (1).
Remove the support and lower the vehicle.
