Removal Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
- Raise and support the vehicle. Lifting and Jacking the Vehicle
- Remove the rear tire and wheel assembly. Tire and Wheel Removal and Installation
Rear Tire Front Air Deflector Bolt (1) - Remove [2x]
- Rear Tire Front Air Deflector (2) - Remove
Rear Wheelhouse Liner Screw (2) - Remove [8x]
- Rear Bumper Fascia Screw (4) - Remove [2x]
- Push Pin (1) - Remove
- Retainer (3) - Remove [2x]
- Rear Wheelhouse Liner (5) - Remove
Remove the 4 rear spring pins (1).
- Rear Suspension Lower Control Arm Cover (2) - Remove
- Support the rear suspension lower control arm with a suitable jack stand.
Rear Shock Absorber Bolt (2) @ Rear Suspension Lower Control Arm (3) - Remove and DISCARD

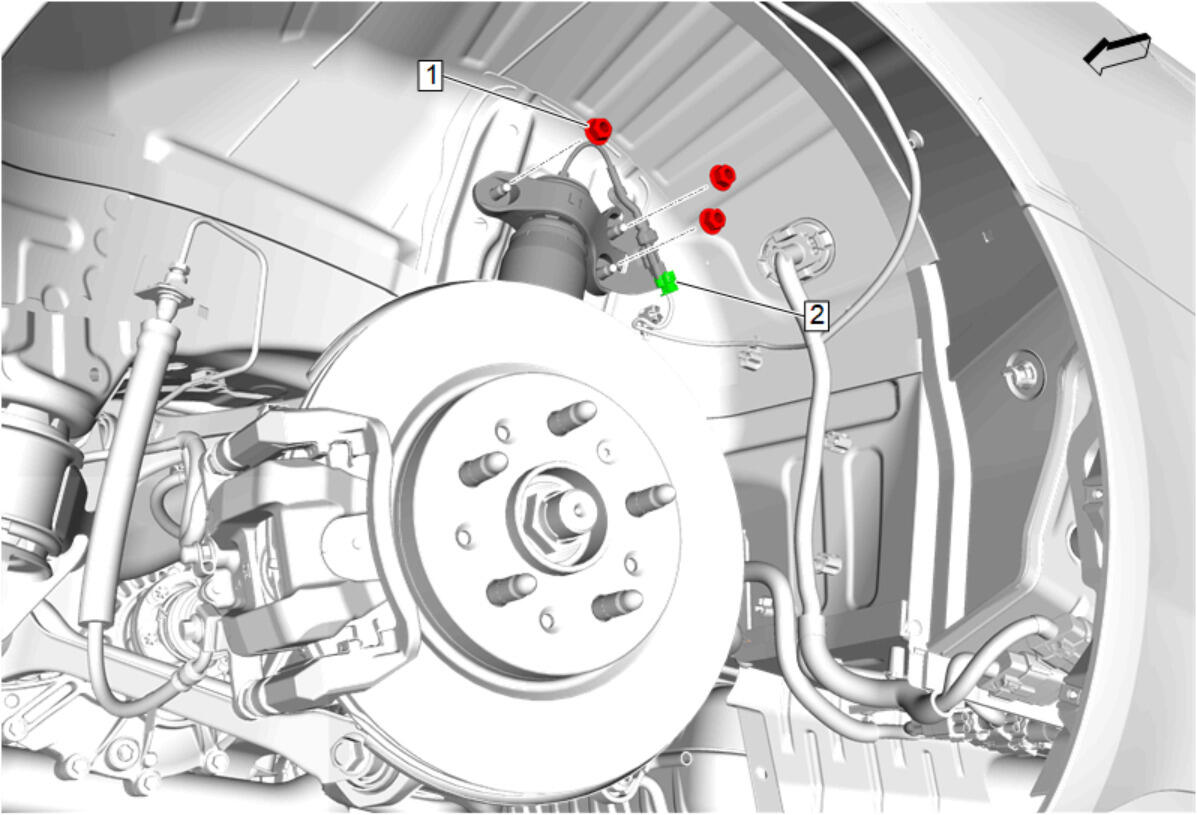

Electrical Connector (2) - Disconnect
- Rear Suspension Shock Absorber Upper Mounting Nut (1) - Remove [3x]

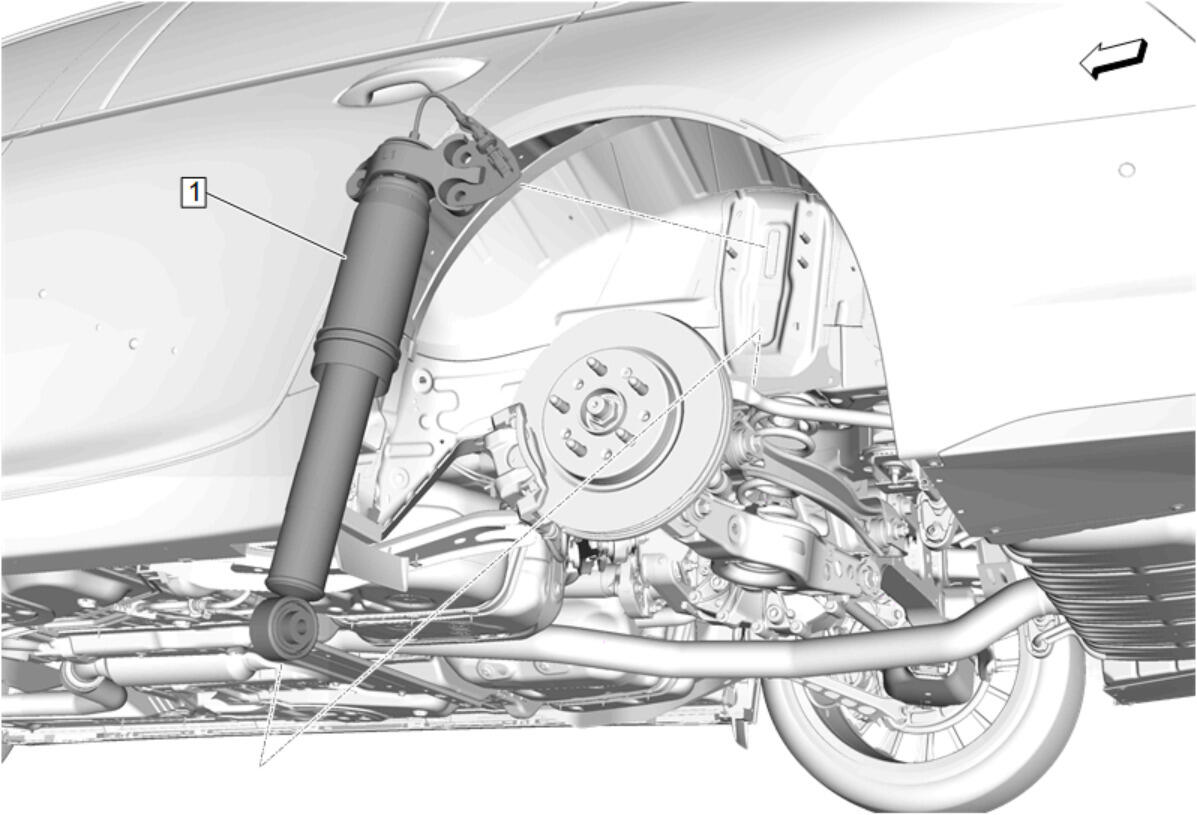

Rear Shock Absorber (1) - Remove
