Home >> Cadillac >> 2021 >> CT4 Sport, 4WD >> Repair and Diagnosis >> External Pages >> Different car >> Section 50 (Mirrors) >> Schematic Wiring Diagrams >> Outside Rearview Mirror Wiring Schematics >> Passenger Controls, Position and Folding (UV2)

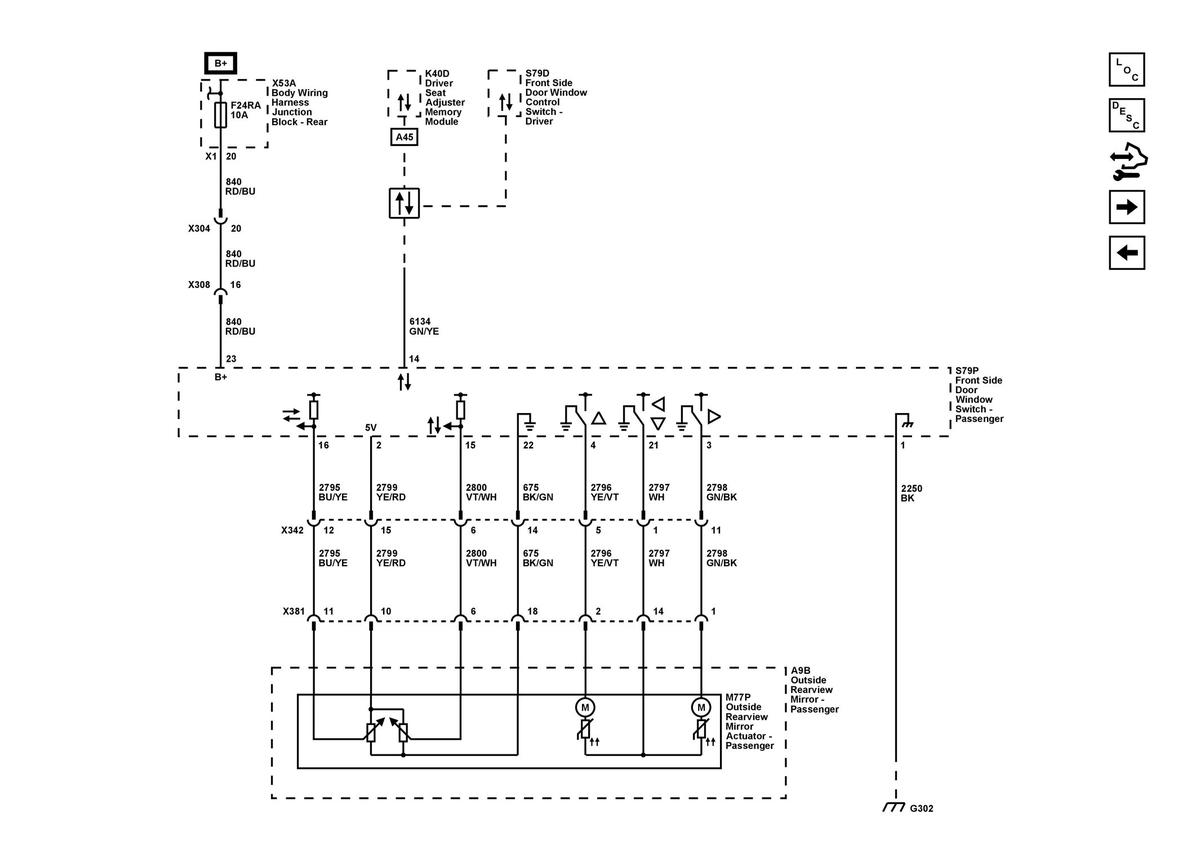

Passenger Controls, Position and Folding (UV2)

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
GM5867161Courtesy of GENERAL MOTORS COMPANY
