Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Refer to Glass and Sheet Metal Handling Warning .

Courtesy of GENERAL MOTORS COMPANY

Apply masking tape over the outside rearview mirror glass (1).
Courtesy of GENERAL MOTORS COMPANY

Apply pressure inward at the top of the outside rearview mirror glass (1) until full travel is reached.
Courtesy of GENERAL MOTORS COMPANY

Firmly grasp the outer bottom edge of the outside rearview mirror glass (1).
Courtesy of GENERAL MOTORS COMPANY

Retaining pressure on the outside rearview mirror glass (1), pull outward until the outside rearview mirror glass is released from the outside rearview mirror actuator (2).
Disconnect the electrical connectors.
Courtesy of GENERAL MOTORS COMPANY

Front Side Door Trim (4) - Remove - Front Side Door Trim Removal and Installation
Courtesy of GENERAL MOTORS COMPANY

Use a flat-bladed plastic tool to remove the push-in retainers.
Front Side Door Window Garnish Molding Retainer (1) - Remove [2x]
Pull outward starting at the front and moving slowly rearward to remove the window garnish molding (2).
Front Side Door Window Garnish Molding (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

Disconnect all electrical connectors.

NOTE:

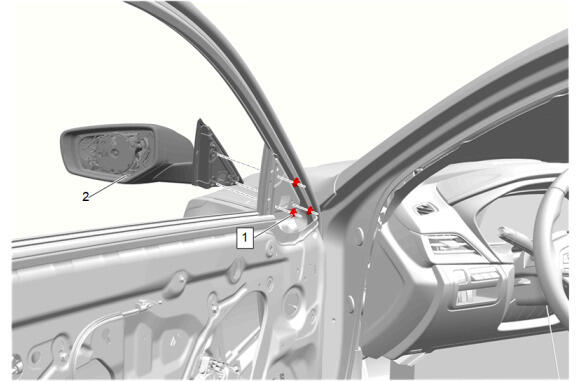

Leave 1 outside rearview mirror nut partially installed, secure the outside rearview mirror housing, and proceed to remove remaining outside rearview mirror nut.

Outside Rearview Mirror Nut (1) - Remove [3x]
Outside Rearview Mirror Housing (2) - Remove
