Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Refer to Glass and Sheet Metal Handling Warning .

Courtesy of GENERAL MOTORS COMPANY

Using a suitable plastic trim tool, release the retaining tab.
Exterior Flood Lamp - (1) Remove
Disconnect the electrical connector.
Courtesy of GENERAL MOTORS COMPANY

Apply masking tape over the outside rearview mirror glass (1).
Courtesy of GENERAL MOTORS COMPANY

Apply pressure inward at the top of the outside rearview mirror glass (1) until full travel is reached.
Courtesy of GENERAL MOTORS COMPANY

Firmly grasp the outer bottom edge of the outside rearview mirror glass (1).
Courtesy of GENERAL MOTORS COMPANY

Retaining pressure on the outside rearview mirror glass (1), pull outward until the outside rearview mirror glass is released from the outside rearview mirror actuator (2).
Disconnect the electrical connectors.
Courtesy of GENERAL MOTORS COMPANY

Outside Rearview Mirror Housing Lower Cover Screw (1) - Remove
Outside Rearview Mirror Housing Upper Cover Screw (2) - Remove [3x]
Outside Rearview Mirror Housing Upper Cover (3) - Remove
Courtesy of GENERAL MOTORS COMPANY

NOTE:
The fasteners listed below are left hand threaded and must be removed in the opposite direction as conventional fasteners.

Outside Rearview Mirror Turn Signal Lamp Screw (1) - Remove [2x]
Outside Rearview Mirror Turn Signal Lamp (2) - Remove
Disconnect the electrical connector.
Courtesy of GENERAL MOTORS COMPANY

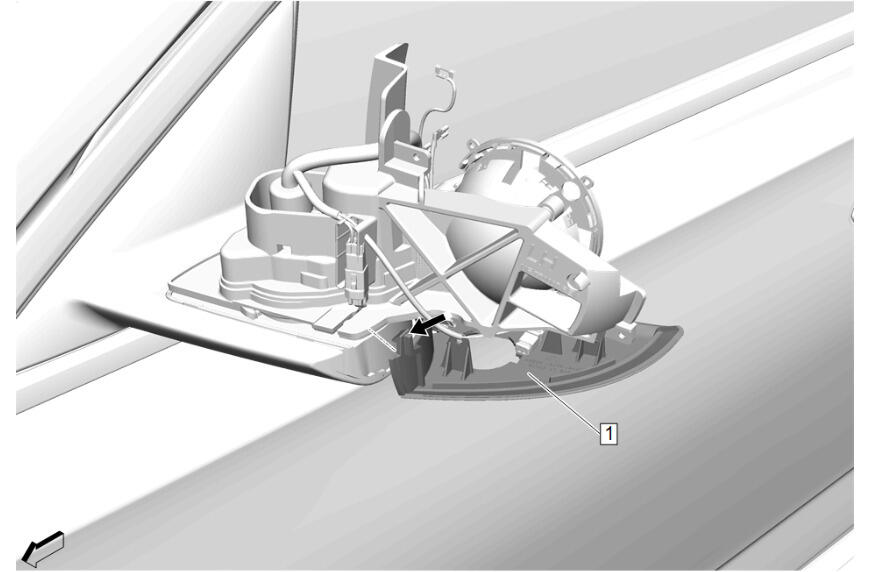

Release the retaining tab on the outside rearview mirror housing lower cover (1).
Courtesy of GENERAL MOTORS COMPANY

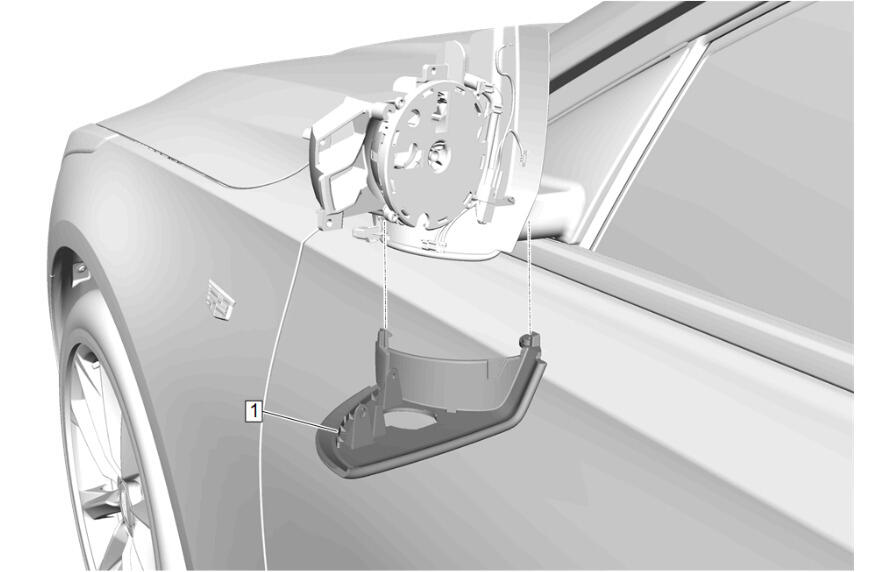

Outside Rearview Mirror Housing Lower Cover (1) - Remove
