Removal Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
- Front Side Door Trim - Remove - Front Side Door Trim Removal and Installation
Use a flat-bladed plastic tool to remove the push-in retainers.
- Front Side Door Window Garnish Molding Retainer (1) - Remove [2x]
- Pull outward starting at the front and moving slowly rearward to remove the window garnish molding (2).
- Front Side Door Window Garnish Molding (2) - Remove
Disconnect the electrical connector.

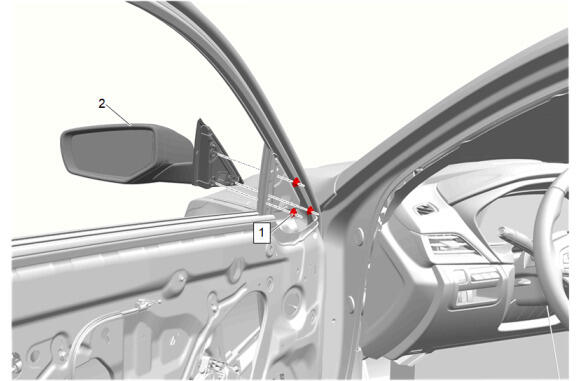

- Outside Rearview Mirror Nut (1) - Remove [3x]
- Outside Rearview Mirror (2) - Remove

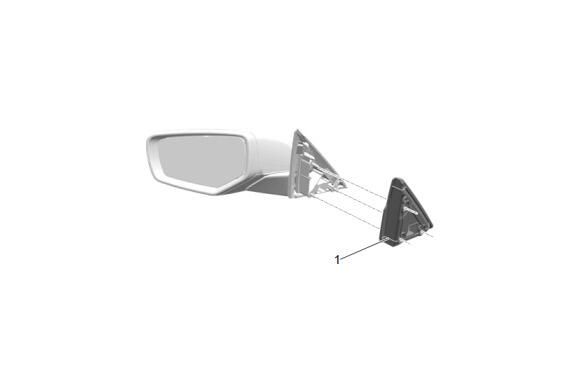

Outside Rearview Mirror Gasket (1) - Remove
NOTE:
There are 2 tabs on the front side door window garnish molding (2) that inter-lock to the door frame.
NOTE:
Before fully removing the nuts, hold the outside review mirror to prevent damage
