Fastener Specifications
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

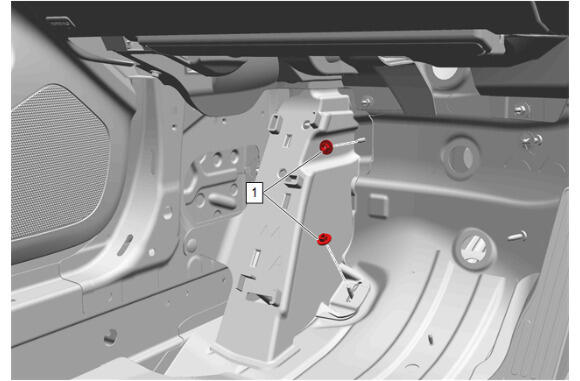

Driver Footrest Bracket
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Driver Footrest Bracket Nut [2x] | - | - | 3 N.m (27 lb in) | Driver Footrest Bracket Replacement |
