Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection
Raise and support the vehicle. Lifting and Jacking the Vehicle
Remove the front tire and wheel assembly. Tire and Wheel Removal and Installation
Courtesy of GENERAL MOTORS COMPANY

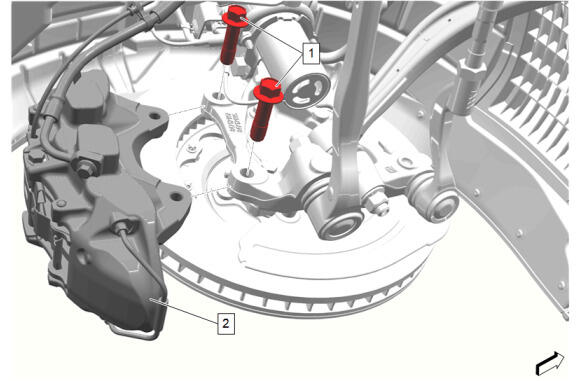

Front Brake Caliper Bolt (1) - Remove [2x]

CAUTION:

Support the brake caliper with heavy mechanic wire, or equivalent, whenever it is separated from its mount and the hydraulic flexible brake hose is still connected. Failure to support the caliper in this manner will cause the flexible brake hose to bear the weight of the caliper, which may cause damage to the brake hose and in turn may cause a brake fluid leak.

Remove the brake caliper and support with heavy mechanics wire. (2)
Courtesy of GENERAL MOTORS COMPANY

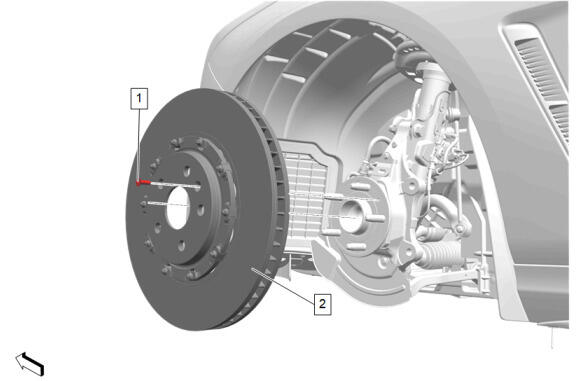

Front Brake Rotor Bolt (1) - Remove
Front Brake Rotor (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

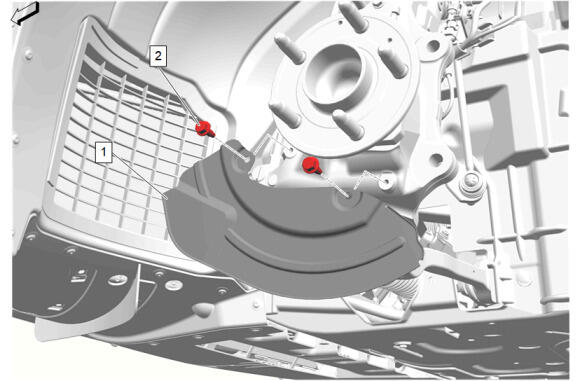

Front Brake Shield Bolt (2) - Remove [2x]
Front Brake Shield (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

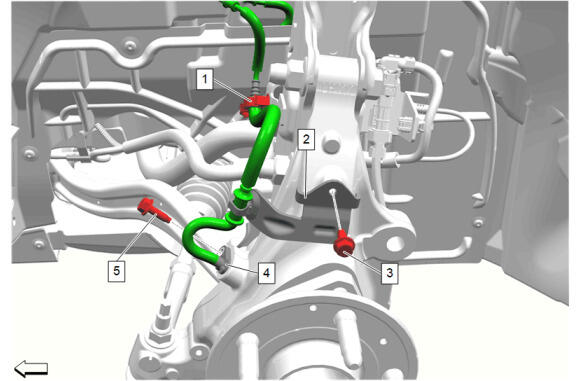

Front Wheel Speed Sensor Retainer (1) - Remove
Front Wheel Speed Sensor Bracket Bolt (3) - Remove
Front Wheel Speed Sensor Bracket (2) Reposition away
Front Wheel Speed Sensor Bolt (5) - Remove
Front Wheel Speed Sensor (4) - Remove
Courtesy of GENERAL MOTORS COMPANY

Front Wheel Hub Bolt (1) - Remove [3x]
Front Brake Bearing Shield (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

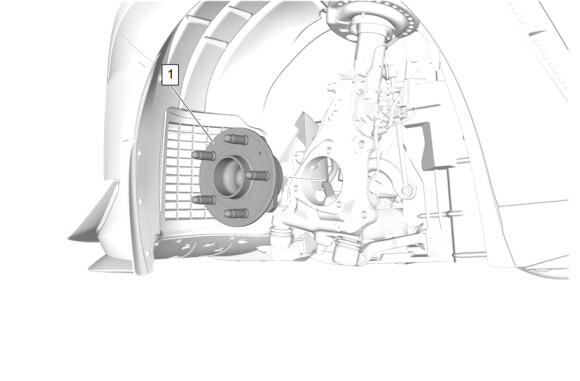

Front Wheel Hub (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

Steering Linkage Outer Tie Rod Nut (2) - Loosen
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Do not attempt to disconnect a steering linkage joint by driving a wedge between the joint and the attached part. Seal damage may result which will cause premature failure of the joint.

NOTE:
Some components not shown for graphic clarity.

Using the CH-42188-B Ball Joint Separator (1) separate the steering linkage outer tie rod (2) from the steering knuckle.
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

Steering Linkage Outer Tie Rod Nut (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Do NOT allow the ball stud to rotate while loosening the nut.

Front Lower Control Arm Ball Stud Nut (1) - Loosen
Courtesy of GENERAL MOTORS COMPANY

Using the CH-42188-B Ball Joint Separator (1), separate the front lower control front link from the steering knuckle.
Courtesy of GENERAL MOTORS COMPANY

Front Lower Control Arm Ball Stud Nut (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Do NOT allow the ball stud to rotate while loosening the nut.

Front Lower Control Arm Ball Stud Nut (1) - Loosen
Courtesy of GENERAL MOTORS COMPANY

Using the CH-42188-B Ball Joint Separator (1), separate the front lower control rear link from the steering knuckle.
Courtesy of GENERAL MOTORS COMPANY

Front Lower Control Arm Ball Stud Nut (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Steering Knuckle Nut (1) - Remove [2x]
Steering Knuckle Bolt (2) - Remove [2x]
Courtesy of GENERAL MOTORS COMPANY

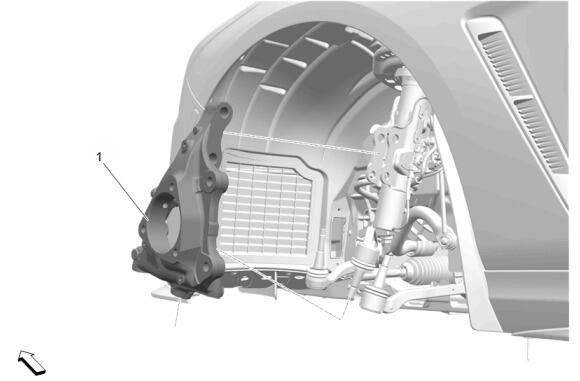

Steering Knuckle (1) - Remove
