Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

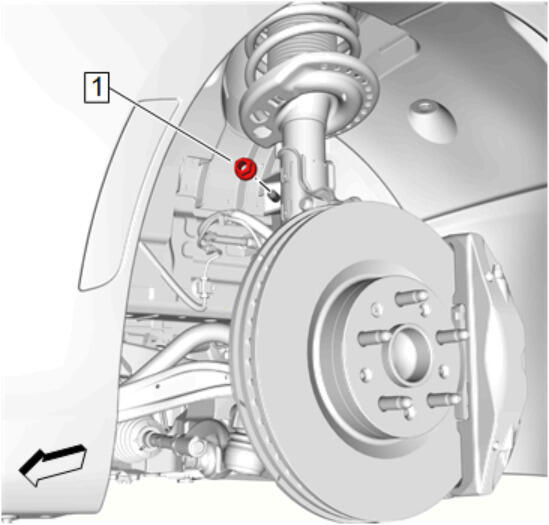

Front Stabilizer Shaft Link (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

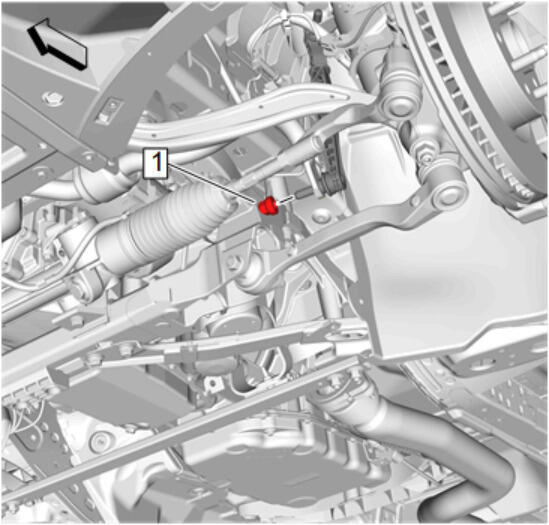

Front Stabilizer Shaft Link Nut- Lower (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

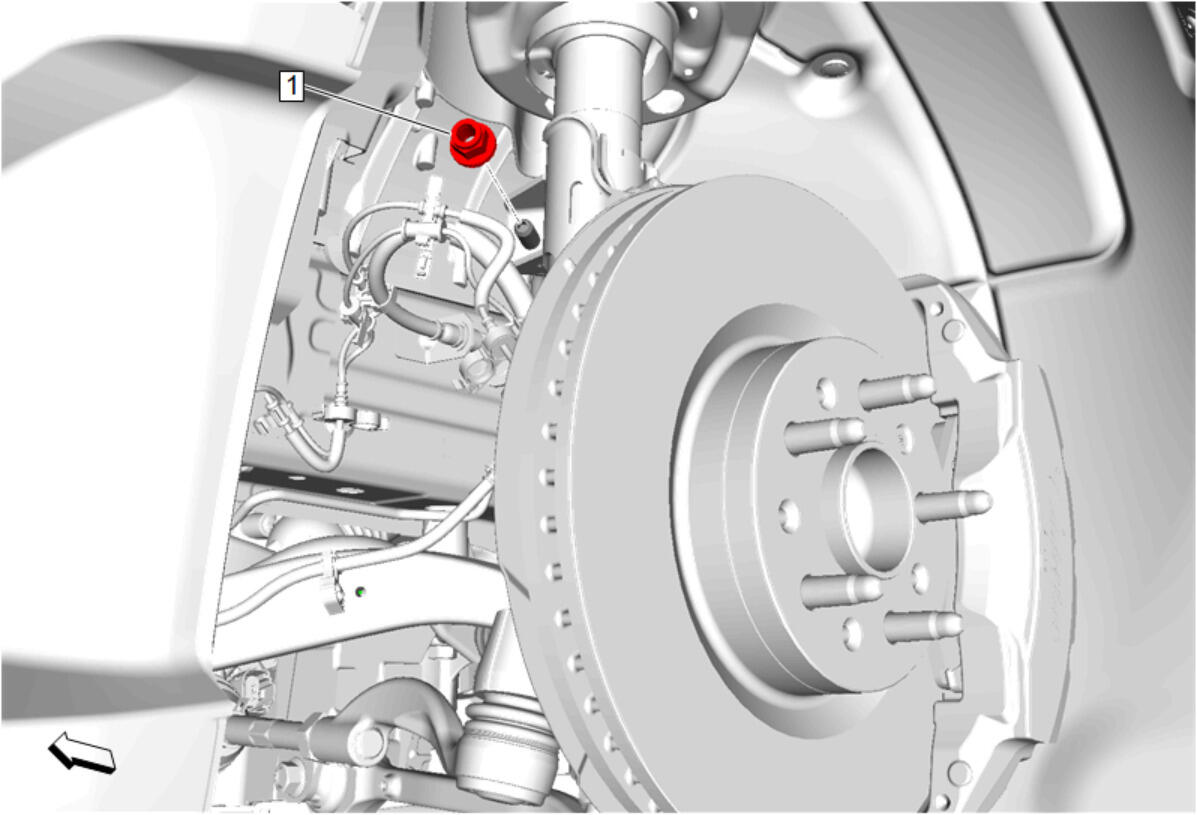

Front Stabilizer Shaft Link Nut- Upper (1) - Install and tighten - Fastener Specifications
Install the front tire and wheel assembly. Tire and Wheel Removal and Installation
Remove the support and lower the vehicle.
