Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

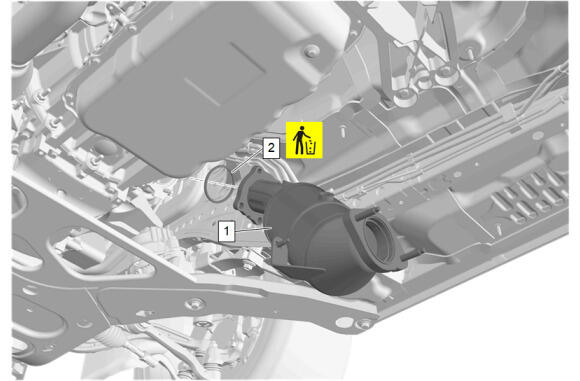

  1. GM5873937Courtesy of GENERAL MOTORS COMPANY

    Turbocharger Exhaust Pipe Gasket (2) - Install NEW

  2. Warm Up Three-Way Catalytic Converter (1) - Install

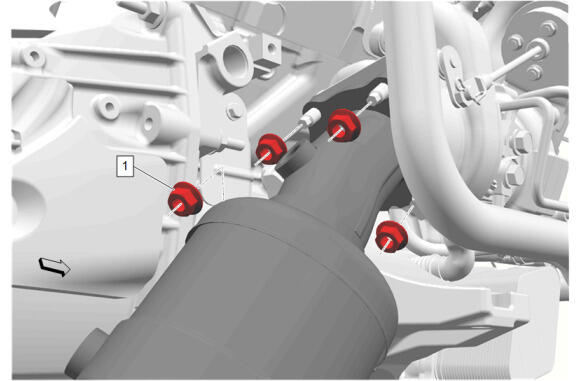

  3. GM5873921Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Catalytic Converter Nut (1) - Install and tighten [4x] - Fastener Specifications

  4. GM5786730Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Component Fastener Tightening Caution .

    NOTE:

    A special anti-seize compound is used in the HO2S threads. The compound consists of liquid graphite and glass beads. The graphite tends to burn away, but the glass beads remain, making the sensor easier to remove. New, or service replacement sensors already have the compound applied to the threads. If the sensor is removed from an exhaust component and if for any reason the sensor is to be reinstalled, the threads must have anti-seize compound applied before reinstallation. Adhesives, Fluids, Lubricants, and Sealers

    Install and tighten the heated oxygen sensor (1) using a suitable tool. Fastener Specifications

  5. Connect the heated oxygen sensor electrical connector.
  6. GM5873893Courtesy of GENERAL MOTORS COMPANY

    Install and tighten the heated oxygen sensor (1) using a suitable tool. Fastener Specifications

  7. Connect the heated oxygen sensor electrical connector.
  8. GM5872016Courtesy of GENERAL MOTORS COMPANY

    Catalytic Converter Brace (2) - Install

  9. Catalytic Converter Brace Bracket Nut (1) - Install and tighten [5x] - Fastener Specifications
  10. GM5865329Courtesy of GENERAL MOTORS COMPANY

    Catalytic Converter Gasket (2) - Install NEW

  11. With the aid of an assistant, install the exhaust muffler (1).
  12. GM5865300Courtesy of GENERAL MOTORS COMPANY

    Exhaust Muffler Hanger Bracket Nut (1) - Install and tighten [4x] - Fastener Specifications

  13. GM5865293Courtesy of GENERAL MOTORS COMPANY

    Electrical Connector (1) - Connect

  14. GM5865287Courtesy of GENERAL MOTORS COMPANY

    Electrical Connector (1) - Connect

  15. GM5406632Courtesy of GENERAL MOTORS COMPANY

    Exhaust Muffler (1) @ Exhaust Intermediate Pipe Insulator-Right Side (2) - Install [2x]

  16. GM5406578Courtesy of GENERAL MOTORS COMPANY

    Exhaust Muffler (1) @ Exhaust Intermediate Pipe Insulator-Left Side (2) - Install [2x]

  17. GM5865271Courtesy of GENERAL MOTORS COMPANY

    Exhaust Pipe Clamp (1) - Tighten [2x] - Fastener Specifications

  18. GM5865265Courtesy of GENERAL MOTORS COMPANY

    Catalytic Converter Nut (1) - Install and tighten [2x] - Fastener Specifications

  19. GM5400756Courtesy of GENERAL MOTORS COMPANY

    Floor Panel Reinforcement (2) - Install

  20. Floor Panel Number 4 Cross Bar Reinforcement Bolt (1) - Install and tighten [6x] - Fastener Specifications
  21. GM5400642Courtesy of GENERAL MOTORS COMPANY

    Underbody Rear Air Deflector- Right Side (5) - Install

  22. Underbody Rear Air Deflector Nut- Right Side (3) - Install and tighten [3x] - Fastener Specifications
  23. Underbody Rear Air Deflector Bolt- Right Side (2) - Install and tighten [3x] - Fastener Specifications
  24. Underbody Rear Air Deflector Nut- Right Side (4) - Install and tighten [2x] - Fastener Specifications
  25. Rear Wheelhouse Liner Bolt- Right Side (1) - Install and tighten - Fastener Specifications
  26. GM5400553Courtesy of GENERAL MOTORS COMPANY

    Underbody Rear Air Deflector- Left Side (5) - Install

  27. Underbody Rear Air Deflector Nut- Left Side (2) - Install and tighten [3x] - Fastener Specifications
  28. Underbody Rear Air Deflector Bolt- Left Side (3) - Install and tighten [3x] - Fastener Specifications
  29. Underbody Rear Air Deflector Nut- Left Side (4) - Install and tighten [2x] - Fastener Specifications
  30. Rear Wheelhouse Liner Bolt- Left Side (1) - Install and tighten - Fastener Specifications
  31. GM5395705Courtesy of GENERAL MOTORS COMPANY

    Rear Tire Front Air Deflector- Left Side and Right Side (2) - Install [2x]

  32. Rear Tire Front Air Deflector Bolt- Left Side and Right Side (1) - Install and tighten [4x] - Fastener Specifications
  33. Remove the support and lower the vehicle.
  34. GM5876059Courtesy of GENERAL MOTORS COMPANY

    Turbocharger Heat Shield (1) - Install

  35. GM5873866Courtesy of GENERAL MOTORS COMPANY

    Turbocharger Heat Shield Bolt (1) - Install and tighten [3x] - Fastener Specifications

  36. GM5875573Courtesy of GENERAL MOTORS COMPANY

    Radiator Outlet Pipe Seal (2) - Install NEW

  37. Radiator Outlet Pipe (1) - Install
  38. GM5875557Courtesy of GENERAL MOTORS COMPANY

    Radiator Outlet Pipe Bolt (2) - Install and tighten - Fastener Specifications

  39. Radiator Outlet Pipe Bolt (1) - Install and tighten - Fastener Specifications
  40. GM5875536Courtesy of GENERAL MOTORS COMPANY

    Wiring Harness Retainer (1) - Install [2x]

  41. GM5875715Courtesy of GENERAL MOTORS COMPANY

    Heater Outlet Hose (4) @ Auxiliary Heater Inlet Hose Tee - Install

  42. Heater Outlet Hose Clamp (3) @ Auxiliary Heater Inlet Hose Tee - Engage - Hose Clamp Replacement Guidelines - Spring Type
  43. Heater Inlet Hose (2) @ Heater Core - Install
  44. Heater Inlet Hose Retainer (1) - Engage
  45. GM5875514Courtesy of GENERAL MOTORS COMPANY

    Radiator Outlet Pipe Bolt (1) - Install and tighten - Fastener Specifications

  46. GM5875503Courtesy of GENERAL MOTORS COMPANY

    Radiator Outlet Hose (2) @ Radiator Outlet Pipe - Install

  47. Radiator Outlet Hose Clamp (1) @ Radiator Outlet Pipe - Engage - Hose Clamp Replacement Guidelines - Spring Type
  48. GM5860355Courtesy of GENERAL MOTORS COMPANY

    Air Cleaner Outlet Duct (1) @ Turbocharger Air Inlet Adapter - Install

  49. GM5860354Courtesy of GENERAL MOTORS COMPANY

    Retainer Spring (4) - Engage

  50. Air Cleaner Outlet Duct Clamp (3) - Tighten - Fastener Specifications
  51. Charge Air Bypass Valve Hose (2) - Install
  52. Charge Air Bypass Valve Hose Clamp (1) - Tighten - Fastener Specifications
  53. GM5854948Courtesy of GENERAL MOTORS COMPANY

    Install the NEW positive crank ventilation foul air tube (2) and secure the 2 positive crankcase ventilation tube connectors (1).

  54. GM5854972Courtesy of GENERAL MOTORS COMPANY

    Turbocharger Wastegate Actuator Vacuum Source Tube (2) - Install

  55. Turbocharger Wastegate Actuator Vacuum Source Tube (2) - Connect - Plastic Collar Quick Connect Fitting Service
  56. Clamp (1) - Engage - Hose Clamp Replacement Guidelines - Spring Type
  57. GM5845622Courtesy of GENERAL MOTORS COMPANY

    Charge Air Bypass Valve Vacuum Tank Tube (2) - Install

  58. Charge Air Bypass Valve Vacuum Tank Tube (2) - Connect - Plastic Collar Quick Connect Fitting Service
  59. Clamp (1) - Engage [2x] - Hose Clamp Replacement Guidelines - Spring Type
  60. GM5862960Courtesy of GENERAL MOTORS COMPANY

    Air Cleaner Assembly (2) - Install

  61. Air Cleaner Bolt (1) - Install and tighten - Fastener Specifications
  62. Install all retainers and wiring harnesses to the air cleaner assembly as necessary.
  63. Connect the 2 mass airflow sensor electrical connectors.
  64. GM5864667Courtesy of GENERAL MOTORS COMPANY

    Auxiliary Air Cleaner Outlet Duct (4) - Install

  65. Air Cleaner Outlet Duct Clamp (3) - Tighten - Fastener Specifications
  66. Air Cleaner Outlet Duct (2) - Install
  67. Air Cleaner Outlet Duct Clamp (1) - Tighten - Fastener Specifications
  68. GM5839407Courtesy of GENERAL MOTORS COMPANY

    Front End Sheet Metal Cross Brace- Left Side and Right Side (3) - Install [2x]

  69. Front Suspension Strut Upper Mounting Nut- Left Side and Right Side (2) - Install and tighten [4x] - Fastener Specifications
  70. Front End Sheet Metal Cross Brace Bolt- Left Side and Right Side (1) - Install and tighten [6x] - Fastener Specifications
  71. Install all wiring harness retainers to the front end sheet metal cross braces.
  72. GM5864524Courtesy of GENERAL MOTORS COMPANY

    Radiator Air Upper Baffle- Upper (3) - Install

  73. Radiator Air Upper Baffle Bolt (2) - Install and tighten [2x] - Fastener Specifications
  74. Radiator Air Upper Baffle Retainer (1) - Install [5x]
  75. GM5839233Courtesy of GENERAL MOTORS COMPANY

    Transmission Control Module (1) @ Engine Control Module Bracket (2) - Install

  76. Engine Control Module Bracket (2) - Install
  77. GM5839232Courtesy of GENERAL MOTORS COMPANY

    Engine Control Module Bracket Bolt (1) - Install and tighten [3x] - Fastener Specifications

  78. GM5839234Courtesy of GENERAL MOTORS COMPANY

    Engine Control Module (1) - Install

  79. Connect the electrical connectors.
  80. GM5861123Courtesy of GENERAL MOTORS COMPANY

    Radiator Surge Tank Outlet Pipe (3) - Install

  81. Radiator Surge Tank Inlet Hose Clamp (4) @ Engine Radiator - Engage - Hose Clamp Replacement Guidelines - Spring Type
  82. Radiator Surge Tank Inlet Hose Clip (2) @ Engine Control Module Bracket - Install
  83. Radiator Surge Tank Inlet Hose Clamp (1) @ Radiator Surge Tank Inlet Hose - Engage - Hose Clamp Replacement Guidelines - Spring Type
  84. GM5839283Courtesy of GENERAL MOTORS COMPANY

    Oil Filler Cap - Remove

  85. Intake Manifold Cover (2) - Install
  86. Intake Manifold Cover Bolt (1) - Install and tighten - Fastener Specifications
  87. Oil Filler Cap - Install
  88. Fill the cooling system to the proper level. Cooling System Draining and Filling (LSY GE 47716) , or Cooling System Draining and Filling (LSY Static Fill) , or Cooling System Draining and Filling (LSY with V03 Static Fill) , or Cooling System Draining and Filling (L3B Static Fill) , or Cooling System Draining and Filling (L3B GE 47716) , or Cooling System Draining and Filling (LSY with V03 GE 47716) , or Cooling System Draining and Filling (LF4 Static Fill) , or Cooling System Draining and Filling (LF4 GE 47716)
  89. Connect the negative battery cable. Battery Negative Cable Disconnection and Connection
  90. Start the engine and check for coolant leaks.
  91. Inspect the exhaust system for leaks.
