Removal Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
- Raise and support the vehicle. Lifting and Jacking the Vehicle
Catalytic Converter Nut (1) - Remove [2x]
Separate the exhaust muffler (1) from the warm up three-way catalytic converter and position to the left.
- Catalytic Converter Gasket (2) - Remove and DISCARD
Exhaust Heat Shield Bolt-Right Front (1) - Remove
- Reposition the right front edge of exhaust intermediate underbody heat shield (2).

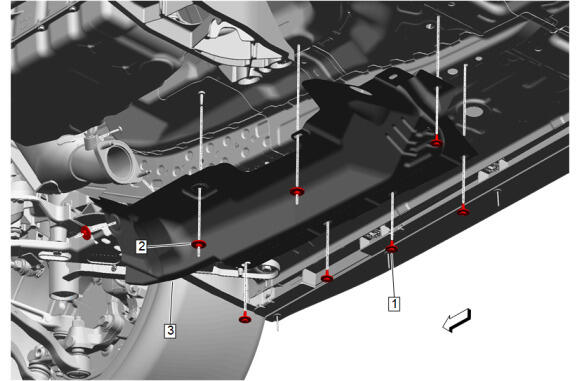

Exhaust Heat Shield Nut (1) - Remove [3x]
- Exhaust Heat Shield Bolt (2) - Remove [5x]
- Exhaust Front Underbody Heat Shield-Right Side (3) - Remove
