Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

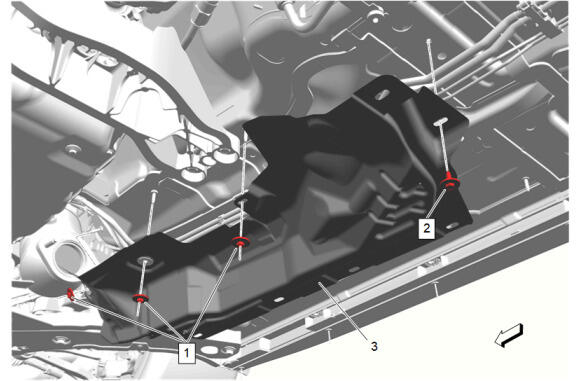

  1. GM5865455Courtesy of GENERAL MOTORS COMPANY

    Exhaust Front Underbody Heat Shield (3) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Exhaust Heat Shield Bolt (2) - Install and tighten - Fastener Specifications
  3. Exhaust Heat Shield Nut (1) - Install and tighten [3x] - Fastener Specifications
  4. GM5865329Courtesy of GENERAL MOTORS COMPANY

    Catalytic Converter Gasket (2) - Install NEW

  5. With the aid of an assistant, install the exhaust muffler (1).
  6. GM5865300Courtesy of GENERAL MOTORS COMPANY

    Exhaust Muffler Hanger Bracket Nut (1) - Install and tighten [4x] - Fastener Specifications

  7. GM5865293Courtesy of GENERAL MOTORS COMPANY

    Electrical Connector (1) - Connect

  8. GM5865287Courtesy of GENERAL MOTORS COMPANY

    Electrical Connector (1) - Connect

  9. GM5406632Courtesy of GENERAL MOTORS COMPANY

    Exhaust Muffler (1) @ Exhaust Intermediate Pipe Insulator-Right Side (2) - Install [2x]

  10. GM5406578Courtesy of GENERAL MOTORS COMPANY

    Exhaust Muffler (1) @ Exhaust Intermediate Pipe Insulator-Left Side (2) - Install [2x]

  11. GM5865271Courtesy of GENERAL MOTORS COMPANY

    Exhaust Pipe Clamp (1) - Tighten [2x] - Fastener Specifications

  12. GM5865265Courtesy of GENERAL MOTORS COMPANY

    Catalytic Converter Nut (1) - Install and tighten [2x] - Fastener Specifications

  13. GM5400756Courtesy of GENERAL MOTORS COMPANY

    Floor Panel Reinforcement (2) - Install

  14. Floor Panel Number 4 Cross Bar Reinforcement Bolt (1) - Install and tighten [6x] - Fastener Specifications
  15. GM5839256Courtesy of GENERAL MOTORS COMPANY

    Underbody Front Air Deflector- Right Side (5) - Install

  16. Transmission Fluid Cooler Pipe Bracket Bolt- Right Side (3) - Install and tighten [2x] - Fastener Specifications
  17. Underbody Front Air Deflector Nut- Right Side (2) - Install and tighten [5x] - Fastener Specifications
  18. Underbody Front Air Deflector Bolt- Right Side (1) - Install and tighten [6x] - Fastener Specifications
  19. GM5400642Courtesy of GENERAL MOTORS COMPANY

    Underbody Rear Air Deflector- Right Side (5) - Install

  20. Underbody Rear Air Deflector Nut- Right Side (3) - Install and tighten [3x] - Fastener Specifications
  21. Underbody Rear Air Deflector Bolt- Right Side (2) - Install and tighten [3x] - Fastener Specifications
  22. Underbody Rear Air Deflector Nut- Right Side (4) - Install and tighten [2x] - Fastener Specifications
  23. Rear Wheelhouse Liner Bolt- Right Side (1) - Install and tighten - Fastener Specifications
  24. GM5400553Courtesy of GENERAL MOTORS COMPANY

    Underbody Rear Air Deflector- Left Side (5) - Install

  25. Underbody Rear Air Deflector Nut- Left Side (2) - Install and tighten [3x] - Fastener Specifications
  26. Underbody Rear Air Deflector Bolt- Left Side (3) - Install and tighten [3x] - Fastener Specifications
  27. Underbody Rear Air Deflector Nut- Left Side (4) - Install and tighten [2x] - Fastener Specifications
  28. Rear Wheelhouse Liner Bolt- Left Side (1) - Install and tighten - Fastener Specifications
  29. GM5395705Courtesy of GENERAL MOTORS COMPANY

    Rear Tire Front Air Deflector- Left Side and Right Side (2) - Install [2x]

  30. Rear Tire Front Air Deflector Bolt- Left Side and Right Side (1) - Install and tighten [4x] - Fastener Specifications
  31. Lower the vehicle.
  32. Inspect the exhaust system for leaks.
