Removal Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
- Raise and support the vehicle. Lifting and Jacking the Vehicle
Electrical Connector (1) @ Exhaust Control Valve Actuator - Disconnect
- NOTE:
The rear bumper fascia is removed for illustration purposes only.

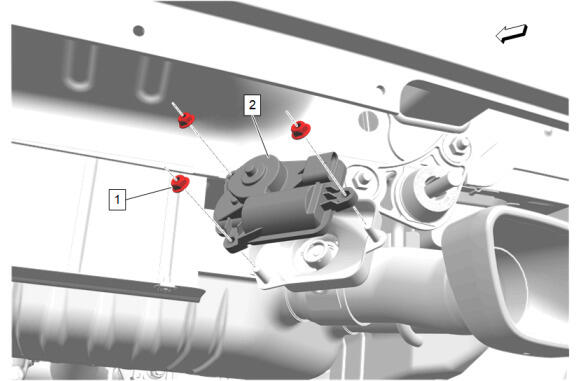

Exhaust Throttle Control Valve Actuator Solenoid Nut (1) - Remove [3x]
- Exhaust Control Valve Actuator- Right Side (2) - Remove
NOTE:
The exhaust control valve actuator linkage can separate from the exhaust control valve actuator (1) when the actuator is removed.
