Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

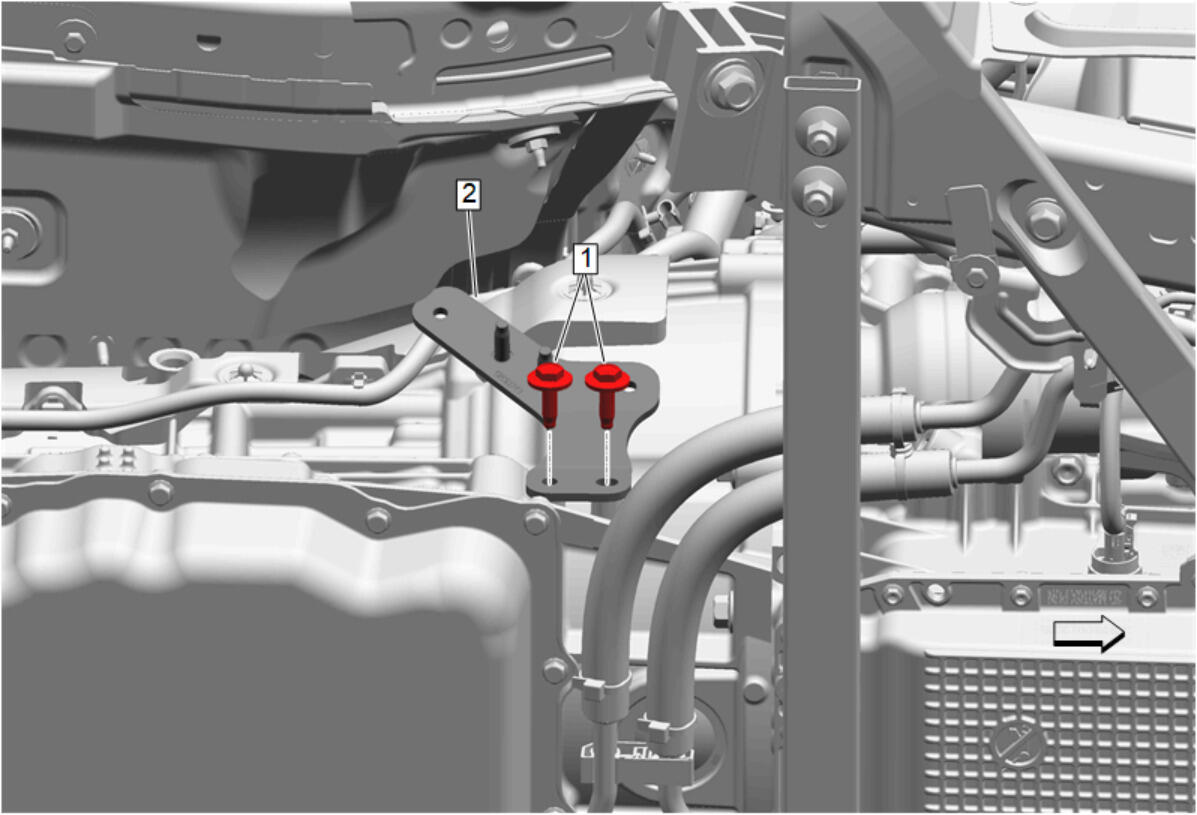

Catalytic Converter Brace Bracket (2) - Install

CAUTION:

Refer to Fastener Caution .

Catalytic Converter Brace Bracket Bolt (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Catalytic Converter Brace (3) - Install
Catalytic Converter Brace Bolt (2) - Install and tighten [2x] - Fastener Specifications
Catalytic Converter Brace Bracket Nut (1) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Catalytic Converter Gasket (2) - Install NEW
Exhaust Muffler (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Exhaust Muffler (1) @ Exhaust Rear Muffler Insulator-Right Side (3) - Install
Exhaust Muffler (1) @ Exhaust Intermediate Pipe Insulator-Right Side (2) - Install
Courtesy of GENERAL MOTORS COMPANY

Exhaust Muffler (1) @ Exhaust Rear Muffler Insulator-Left Side (3) - Install
Exhaust Muffler (1) @ Exhaust Intermediate Pipe Insulator-Left Side (2) - Install
Courtesy of GENERAL MOTORS COMPANY

Electrical Connector (1) @ Exhaust Control Valve Actuator - Connect [2x]
Courtesy of GENERAL MOTORS COMPANY

Catalytic Converter Nut (1) - Install [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Floor Panel Reinforcement (2) - Install
Floor Panel Number 4 Cross Bar Reinforcement Bolt (1) - Install and tighten [6x] - Fastener Specifications
