Installation Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

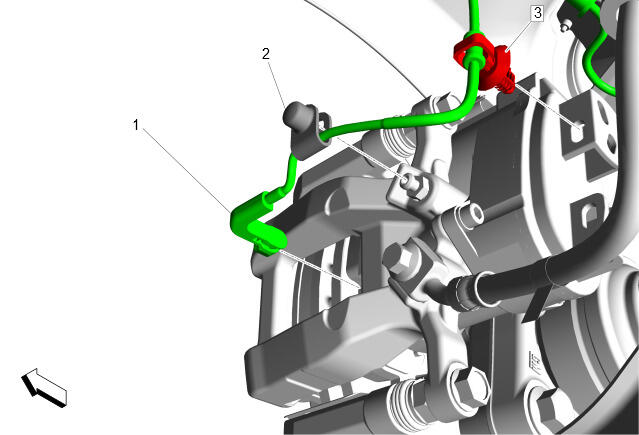

Rear Disc Brake Pad Wear Sensor (1) - Install
- Rear Brake Caliper Bleeder Valve Cap (2) - Install
- Retainer (3) - Install

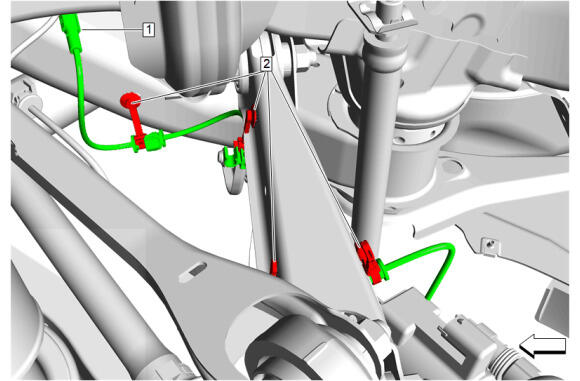

Retainer (2) - Install [4x]
- Connect the electrical connector. (1)
- Install the rear tire and wheel assembly. Tire and Wheel Removal and Installation
- Remove the support and lower the vehicle.
- Using a scan tool, relearn the front disc brake pad wear sensor.
