Removal Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
- Raise and support the vehicle. Lifting and Jacking the Vehicle
- Remove the right rear tire and wheel assembly. Tire and Wheel Removal and Installation

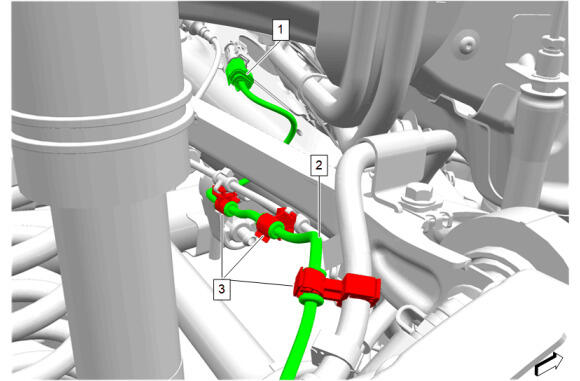

Disconnect the electrical connector. (1)
- Rear Disc Brake Pad Wear Sensor (2) @ Retainer (3) - Remove [3x]
Rear Disc Brake Pad Wear Sensor (1) @ Rear Disc Brake Inner Pad - Remove
