Assembly Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

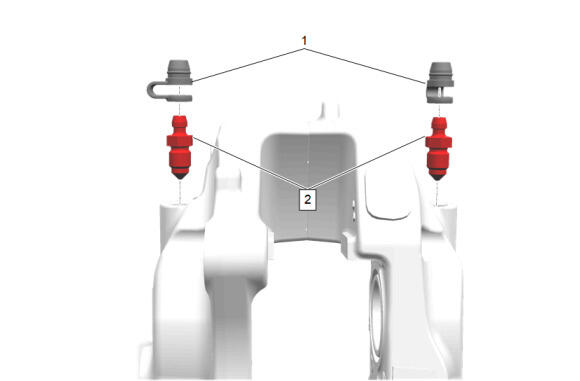

Rear Brake Bleeder Valve (2) - Install and hand tighten [2x]

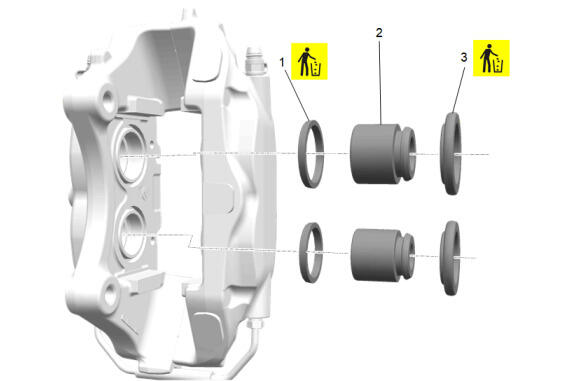

Lubricate the 2 NEW 2 rear brake caliper piston seals (3) with GM approved brake fluid from a clean, sealed brake fluid container. Adhesives, Fluids, Lubricants, and Sealers
- Install the 2 NEW rear brake caliper piston seals (3) into the brake caliper housing grooves. Ensure the rear brake caliper piston seals (3) are properly seated in the caliper housing grooves and are not distorted.
- Install the 2 NEW rear brake caliper piston boots (1) into the dust boot grooves on the 2 rear brake caliper pistons (2).
- Install the 2 rear brake caliper pistons (2) into the caliper bores.
- Install the 2 rear brake caliper piston boots (1) into the rear brake caliper housing.
- Fully seat the 2 rear brake caliper pistons (2) into the brake caliper bores.

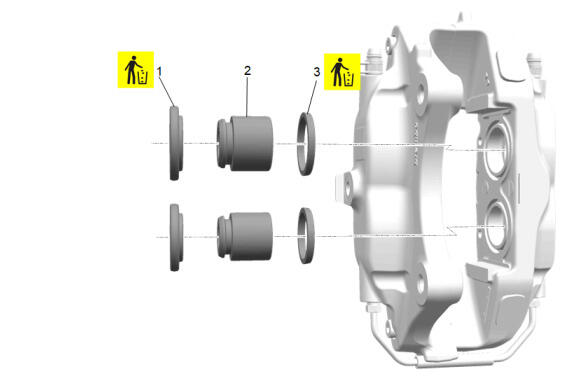

Lubricate the 2 NEW rear brake caliper piston seals (1) with GM approved brake fluid from a clean, sealed brake fluid container. Adhesives, Fluids, Lubricants, and Sealers
- Install the 2 NEW rear brake caliper piston seals (1) into the brake caliper housing grooves. Ensure the rear brake caliper piston seals (1) are properly seated in the caliper housing grooves and are not distorted.
- Install the 2 NEW rear brake caliper piston boots (3) into the dust boot grooves on the 2 rear brake caliper pistons (2).
- Install the 2 rear brake caliper pistons (2) into the caliper bores.
- Install the 2 rear brake caliper piston boots (3) into the rear brake caliper housing.
- Fully seat the 2 rear brake caliper pistons (2) into the brake caliper bores.
