Installation Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
Front Disc Brake Pad Wear Sensor (1) - Install
Reposition the wheelhouse liner as necessary.

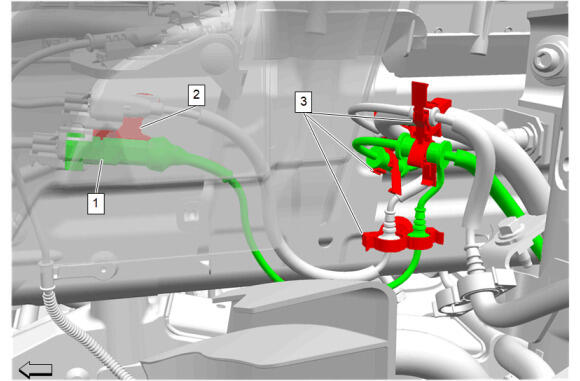

- Electrical Connector (1) @ Retainer (2) - Install
- Connect the electrical connector. (1)
- Retainer (3) - Engage [3x]

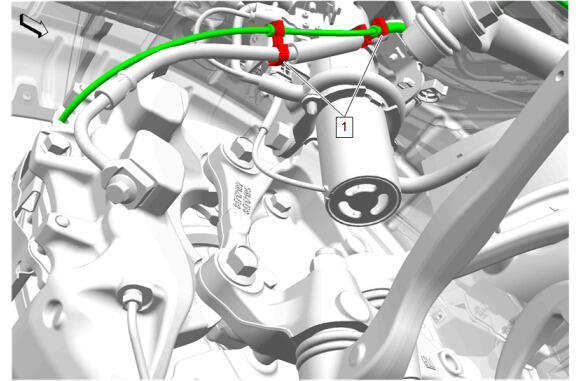

Retainer (1) - Engage [2x]
- Install the left front tire and wheel assembly. Tire and Wheel Removal and Installation
- Remove the support and lower the vehicle.
- Using a scan tool, relearn the front disc brake pad wear sensor.
