Removal Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection
- Raise and support the vehicle. Lifting and Jacking the Vehicle
- Remove the front tire and wheel assembly. Tire and Wheel Removal and Installation
Front Brake Caliper Bleeder Valve Cap (1) - Remove
- {If equipped} Front Disc Brake Pad Wear Sensor (2) @ Front Brake Caliper - Remove
Front Brake Hose Fitting (1) - Remove
- Front Brake Hose Washer (3) - Remove and DISCARD [2x]
- Front Brake Hose (2) @ Front Brake Caliper - Remove
- Plug the brake hose outlet to prevent brake fluid loss and contamination.
- Plug the front brake caliper inlet to prevent brake fluid loss and contamination.

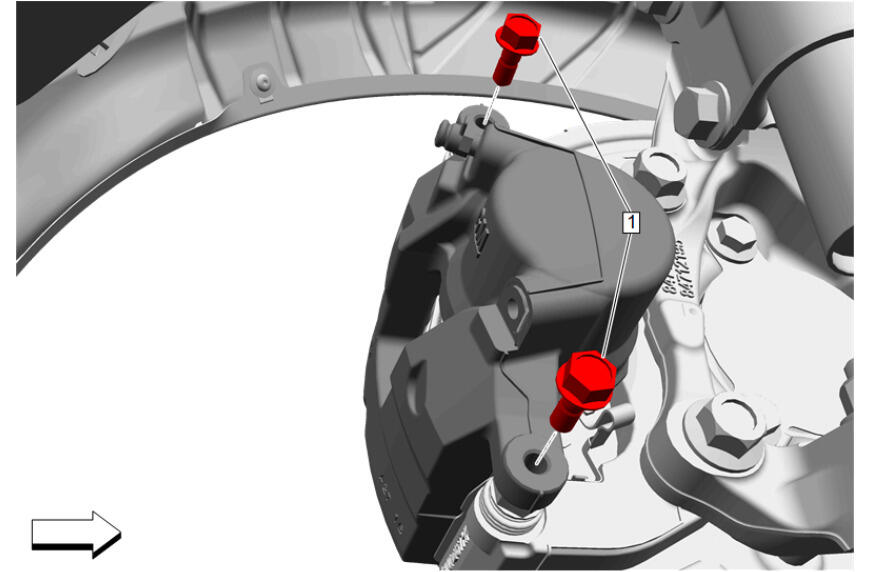

Front Brake Caliper Guide Pin Bolt (1) - Remove [2x]

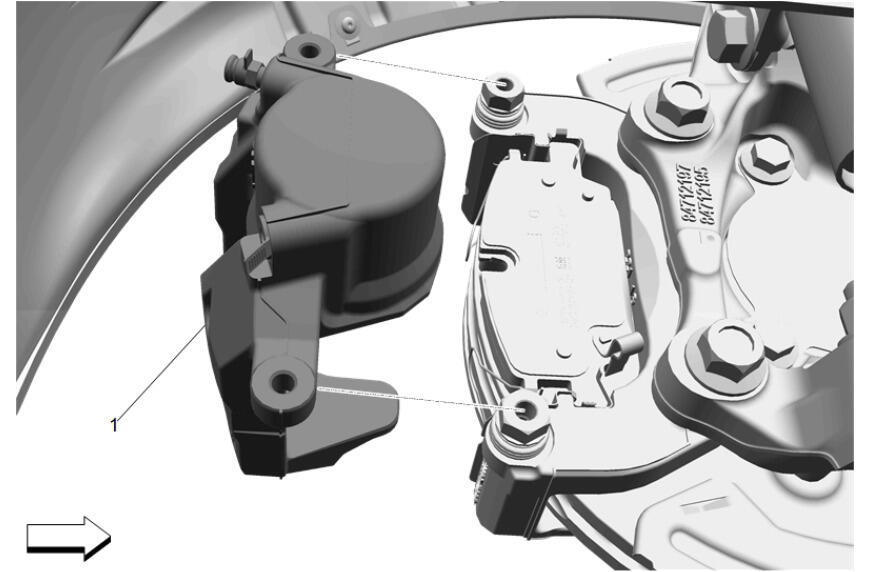

Front Brake Caliper (1) - Remove
