Removal Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection
- Raise and support the vehicle. Lifting and Jacking the Vehicle
- Remove the tire and wheel assembly. Tire and Wheel Removal and Installation

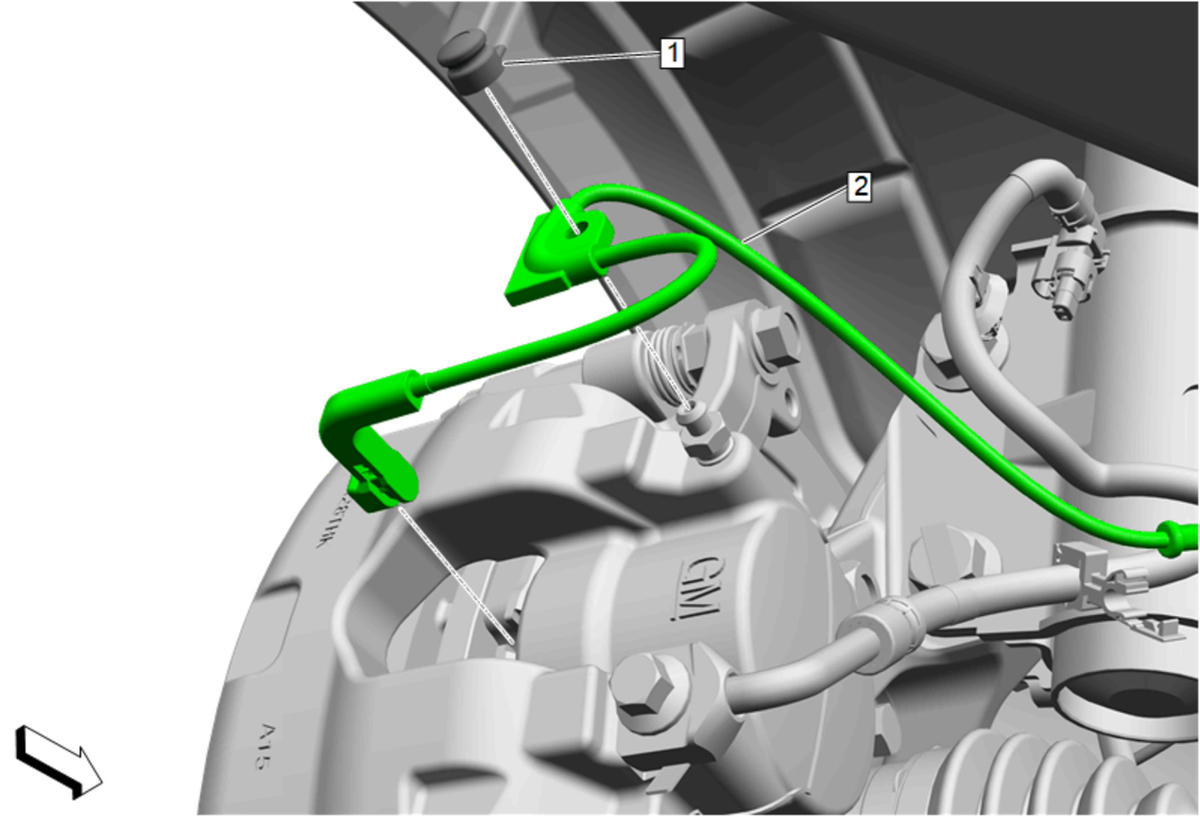

Front Brake Caliper Bleeder Valve Cap (1) - Remove
- {If equipped} Front Disc Brake Pad Wear Sensor (2) @ Front Brake Caliper - Remove
- NOTE:
Do NOT use any air tools to remove or install the guide pin bolts. Use hand tools ONLY.
Front Brake Caliper Guide Pin Bolt (1) - Remove [2x]
- CAUTION:
Support the brake caliper with heavy mechanic wire, or equivalent, whenever it is separated from its mount and the hydraulic flexible brake hose is still connected. Failure to support the caliper in this manner will cause the flexible brake hose to bear the weight of the caliper, which may cause damage to the brake hose and in turn may cause a brake fluid leak.
Remove the brake caliper and support with heavy mechanics wire. (1)

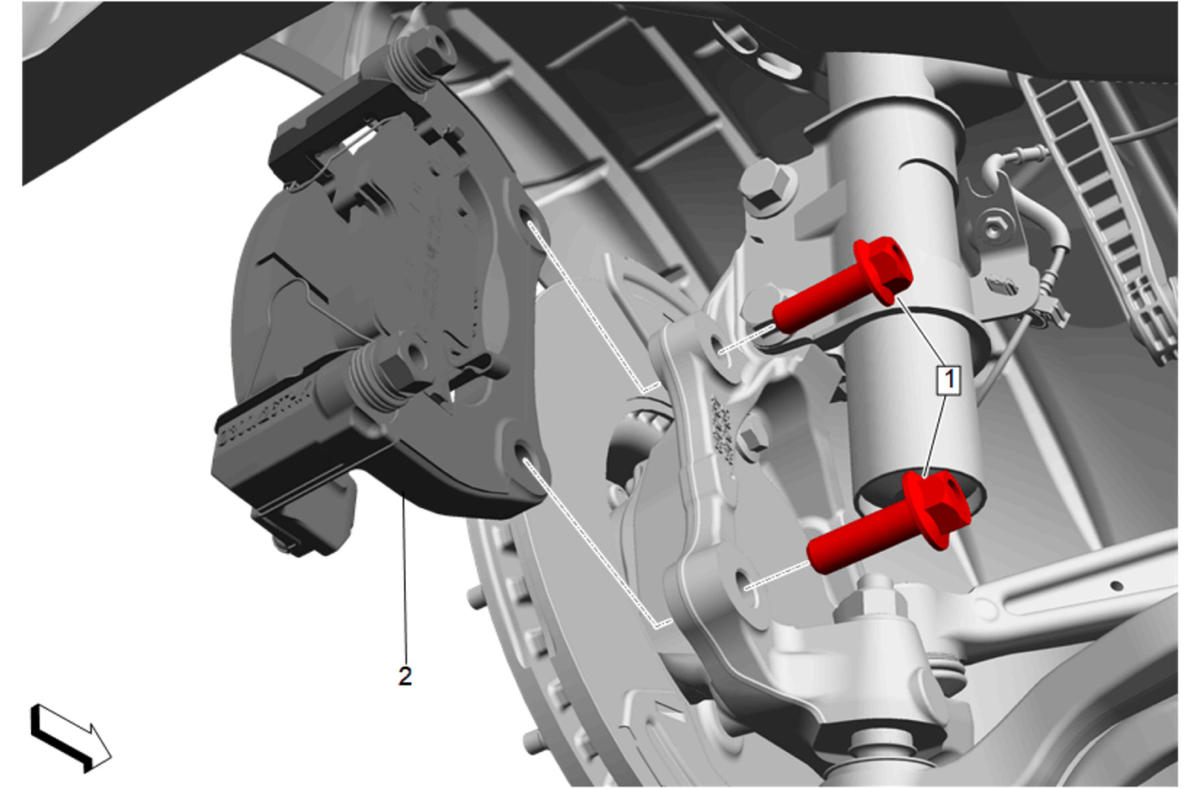

Front Brake Caliper Bolt (1) - Remove [2x]
- Front Brake Caliper Bracket (2) - Remove
- Transfer components as necessary.
