Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection
  2. Raise and support the vehicle. Lifting and Jacking the Vehicle
  3. Remove the front tire and wheel assembly. Tire and Wheel Removal and Installation

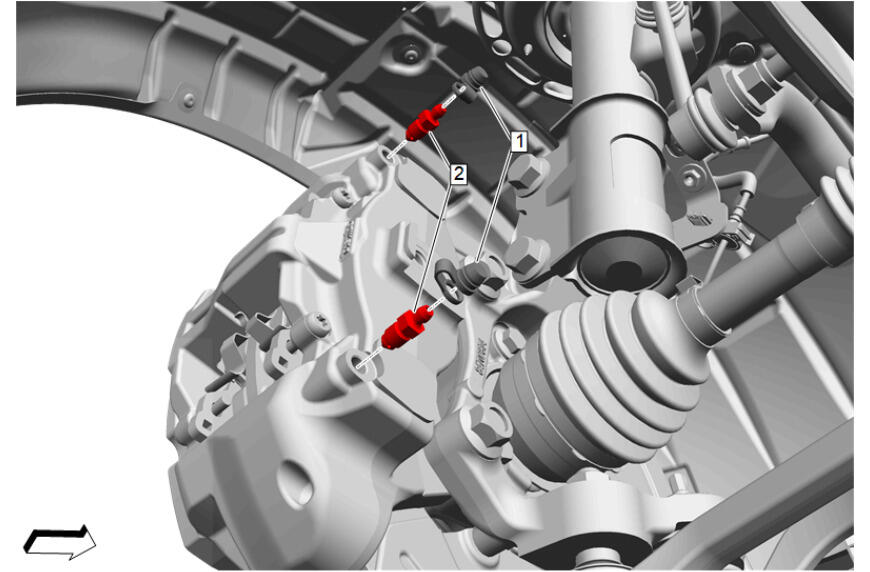

  4. GM5454424Courtesy of GENERAL MOTORS COMPANY

    Front Brake Caliper Bleeder Valve Cap (1) - Remove [2x]

  5. Front Brake Caliper Bleeder Valve (2) - Remove [2x]
  6. Plug the brake caliper bleeder valve orifices of the brake caliper to prevent brake fluid loss and contamination.
